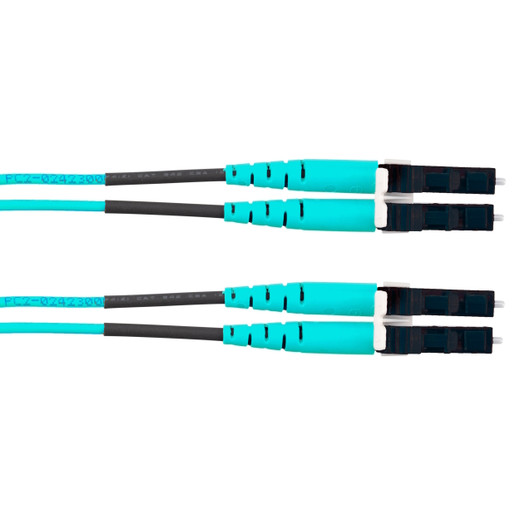

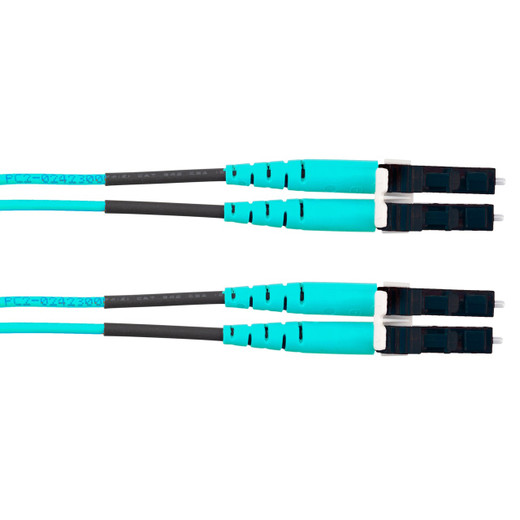

The Panduit FX2ERLNLNSNM007 is a 7-meter (23-foot) OM3 duplex fiber optic patch cord engineered for high-bandwidth data center and telecom room backbone applications. Built on Panduit's Opti-Core platform with 50-micron laser-optimized multimode fiber and duplex LC connectors at both ends, this aqua-jacketed riser-rated (OFNR) cable delivers the insertion loss performance and mechanical durability required for 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10 Ethernet runs up to 300 meters. The 1.6mm cable jacket and factory-terminated LC duplex interface ensure consistent alignment and low-loss connectivity in rack-to-rack, cassette-to-switch, and cross-connect scenarios.
The FX2ERLNLNSNM007 uses Panduit's Opti-Core 50/125µm OM3 fiber, which is laser-optimized for VCSEL-based transceivers commonly deployed in 10G SFP+ and 40G QSFP+ modules. The factory-polished LC duplex connectors deliver typical insertion loss under 0.35 dB and return loss better than -20 dB, ensuring margin for link budgets in both IEEE 802.3ae 10GBASE-SR and 40GBASE-SR4 applications. The duplex LC footprint matches the industry-standard interface on Cisco, Juniper, Arista, Dell, and HP switches, media converters, and fiber NICs, eliminating adapter requirements. The 1.6mm cable jacket provides the flexibility needed for tight bend radii in high-density MDA, HDA, and EDA fiber distribution frames while maintaining the 50µm core geometry required for consistent modal bandwidth across the 850nm wavelength window.
With OFNR riser flame rating per NEC Article 770, this patch cord is code-compliant for vertical runs between floors in commercial buildings—a common requirement when connecting telecommunications rooms on different levels or running fiber from an entrance facility to an equipment room. The 7-meter length handles intra-rack connections in deep cabinets, adjacent-rack links in hot-aisle/cold-aisle data center layouts, and overhead cable tray runs in telecom rooms without excessive slack. The aqua jacket instantly signals OM3 fiber type to installers and facilities teams during MACs, reducing the risk of mismatched fiber types that degrade link performance. Panduit's factory termination process ensures concentricity and end-face geometry that meet TIA-604-3 (FOCIS-3) physical-contact connector specs, critical for maintaining the sub-decibel insertion loss needed in multi-hop cassette-based architectures.
Compliance with TIA-568-C.3, ISO/IEC 11801 Ed. 2.2, and TIA-604-10 (FOCIS-10) duplex connector interface standards ensures interoperability across mixed-vendor fiber infrastructures and long-term supportability as network speeds scale from 10G to 40G and beyond. The Opti-Core platform's laser-optimized fiber chemistry delivers the 2000 MHz·km effective modal bandwidth required for OM3 classification, providing the margin needed when integrators design structured cabling systems that must support both current 10GBASE-SR deployments and future 40G/100G migrations within the same physical plant.
