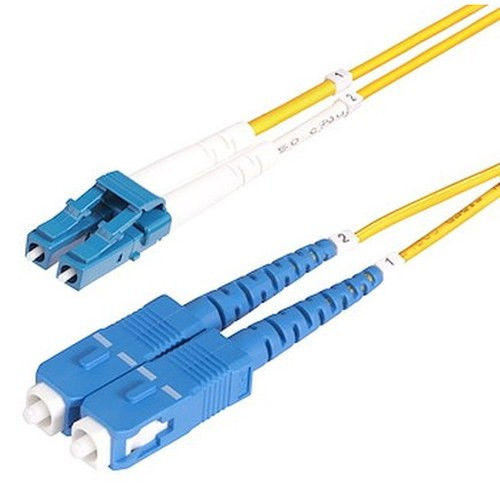

StarTech SMLCSC-OS2-7M LC to SC OS2 Single-Mode Duplex Fiber Patch Cable

Overview

The StarTech SMLCSC-OS2-7M is a 7-meter (22.9 ft) LC duplex to SC duplex single-mode fiber patch cable built on OS2 9/125µm fiber. At that run length, OS2 is the right specification — OS1/OS2 single-mode fiber delivers the low-attenuation, long-distance backbone performance that OM3/OM4 multimode cables can't match at extended distances. This cable targets data center cross-connect runs, MDF-to-IDF interconnects, and any structured cabling application where you're bridging LC-interface transceivers to SC-interface ports on the same backbone segment.

If you're sourcing fiber for a surveillance or enterprise network backbone, pairing this with the right network switches and SFP transceivers is worth planning before you finalize patch lengths.

Key Features

• OS2 9/125µm Single-Mode Fiber: OS2 fiber is rated for runs far exceeding what multimode supports — this is the cable class for building-to-building interconnects and long data center spine runs. The 9µm core locks in low dispersion at the wavelengths used by standard SFP+ and QSFP transceivers.
• 100 Gbps Maximum Data Rate: Supports up to 100Gbps throughput, which means this cable won't be the bottleneck in 10G, 25G, 40G, or 100G infrastructure deployments. You're buying headroom here — a cable plant you won't have to replace when you upgrade the optics.
• LC Duplex to SC Duplex Connectors: LC on one end, SC on the other makes this a purpose-built adapter patch for environments where an LC-equipped switch or transceiver needs to connect to SC-terminated fiber running back to a panel or legacy SC device. No LC-SC coupler needed — this eliminates an extra connection point and the insertion loss that comes with it.
• 0.3dB Insertion Loss: At 0.3dB, this cable leaves your optical link budget largely intact. Most SFP transceivers budget 3–4dB total link loss — a 0.3dB patch cable consumes only a small fraction of that allowance, leaving headroom for splice points and connectors elsewhere in the run.
• 55dB Return Loss: High return loss means very little signal reflects back toward the source. For high-speed coherent optics and sensitive transceivers, low back-reflection matters — 55dB is a solid figure that keeps the transmitter laser stable.
• 1260nm–1625nm Wavelength Range: This range covers the full O through L optical bands, so the cable is compatible with standard single-mode transceivers operating at 1310nm, 1550nm, and CWDM/DWDM wavelengths. No wavelength mismatches to worry about in a standard enterprise SFP or SFP+ deployment.
• LSZH (Low Smoke Zero Halogen) Jacket: The 2mm OD LSZH jacket is the correct specification for plenum and enclosed spaces where fire safety codes restrict PVC. In a fire event, LSZH materials suppress toxic halogen gas emission — a code-compliance requirement in many commercial and government facilities, not just a preference.
• -20°C to 60°C Operating Range: Handles cold IDF closets and warm equipment rooms without degradation. The same -20°C to 60°C range applies to storage, so pre-staged spare cables won't suffer from warehouse or loading dock temperature swings.
• Lifetime Warranty: A lifetime manufacturer warranty on a passive cable component means you're not building depreciation cycles into your cable plant. This matters most in permanent structured cabling runs where replacement is labor-intensive.

Integration and Compatibility

The SMLCSC-OS2-7M (often searched as SMLCSC OS2 7M) is a passive optical component — compatibility is determined by your transceivers and port types, not the cable itself. As long as your equipment uses LC duplex connectors on one side and SC duplex connectors on the other, and your transceivers are specified for OS2 single-mode fiber at any wavelength between 1260nm and 1625nm, this cable is a straightforward fit.

Common pairings include LC-interface SFP+ modules on managed switches connecting to SC-terminated fiber panels or SC-port media converters. This cable is also a practical bridge in mixed-generation environments where legacy SC infrastructure meets newer LC-standard switching equipment. For fiber optic cable selection guidance across OS1, OS2, OM3, and OM4 options, reviewing your transceiver datasheets for fiber type and connector requirements before ordering is the most reliable approach.

For surveillance network backbones, this cable pairs naturally with fiber media converters used to extend IP camera feeds over single-mode runs back to the NVR or core switch. An IP camera deployment spanning multiple buildings will typically rely on single-mode fiber exactly like this for the backbone segments.

Frequently Asked Questions

Q: What connector types are on each end of the SMLCSC-OS2-7M?

A: The SMLCSC-OS2-7M has an LC duplex connector on one end and an SC duplex connector on the other end. Both are UPC (Ultra Physical Contact) polished for low return loss.

Q: Is OS2 fiber compatible with OM3 or OM4 multimode transceivers?

A: No. OS2 is single-mode fiber (9/125µm core) and requires single-mode transceivers. Multimode transceivers (designed for OM3/OM4 50/125µm fiber) are not compatible. Mixing fiber types with the wrong transceiver class will result in signal loss or no link. Always verify your transceiver's fiber type requirement before selecting a patch cable.

Q: What is the maximum data rate supported by this cable?

A: The SMLCSC-OS2-7M supports up to 100Gbps. It is suitable for 1G, 10G, 25G, 40G, and 100G applications when used with appropriate OS2-compatible transceivers.

Q: Is the LSZH jacket required for my installation?

A: LSZH (Low Smoke Zero Halogen) is typically required by fire and building codes in plenum spaces, air-handling areas, tunnels, and enclosed public infrastructure. If your installation runs through open air or non-restricted conduit, LSZH is still an acceptable and safe choice. Check your local building and fire codes to confirm requirements for your specific installation environment.

Q: What is the warranty on the SMLCSC-OS2-7M?

A: The SMLCSC-OS2-7M carries a lifetime manufacturer warranty.

Q: What operating temperature range does this cable support?

A: The cable operates from -20°C to 60°C (-4°F to 140°F), with the same range applying to storage conditions.

Karl Wilson

The spec that stands out to me on the SMLCSC-OS2-7M is the 0.3dB insertion loss figure — that's about as low as you'll see on a factory-terminated patch cable, and it matters when you're aggregating multiple segments in a structured cabling run where every tenth of a dB adds up against your transceiver's link budget.

Technical Highlights:

• 0.3dB Insertion Loss: Leaves the vast majority of your SFP/SFP+ link budget available for splice points and longer runs — critical when chaining patch panels in a multi-hop backbone.
• 55dB Return Loss: Minimizes back-reflection to the transmitter laser, which directly reduces bit error rates in high-speed 10G/25G/100G coherent links where back-reflection is a real performance factor.
• LSZH 2mm OD Jacket: The 2mm diameter keeps the cable flexible and manageable in dense patch panels, while LSZH compliance satisfies fire code requirements in plenum-rated and enclosed-space installations without a separate fire-rated conduit.

Deployment Considerations:

• The LC-to-SC hybrid configuration is specifically useful when connecting newer LC-interface switches or SFP+ uplink modules to SC-terminated fiber distribution frames or legacy SC-port media converters — plan your panel termination scheme before ordering to confirm you need this polarity rather than LC-to-LC.
• The 40%–70% humidity operating range is narrower than some field environments — if this cable will be installed in outdoor enclosures or high-humidity telecom vaults, verify that ambient humidity stays within spec at the installation point.

For a data center interconnect or MDF-to-IDF run where you're bridging an LC-equipped core switch to an SC-terminated fiber panel, the SMLCSC-OS2-7M gives you the right length, the right fiber class, and the optical performance numbers to keep that link clean at 10G through 100G speeds.
