Description

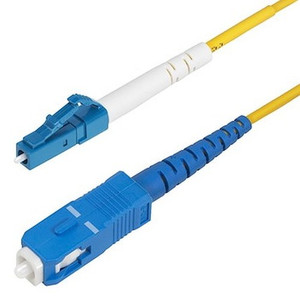

StarTech SMLCSC-OS2-1M OS2 Single Mode Duplex Fiber Optic Cable

Overview

This 1-meter StarTech SMLCSC-OS2-1M cable provides a reliable link for high-speed data transmission in demanding network environments. Designed for 100 Gbps applications, it utilizes OS2 single-mode fiber with a 9/125µm core/cladding diameter. The Low Smoke Zero Halogen (LSZH) jacket material ensures safety in plenum spaces or areas with strict fire codes, minimizing toxic smoke and corrosive byproducts during a fire. This cable is ideal for connecting network switches, servers, or storage devices where maximum bandwidth and signal integrity are critical.

Compatibility

This cable is compatible with any network equipment featuring duplex LC (Connector A) and duplex SC (Connector B) fiber optic ports. It is suitable for use with 100 Gigabit Ethernet (100GbE) interfaces, as well as lower speed single-mode fiber applications requiring LC to SC connectivity. The OS2 rating ensures performance for distances exceeding 10 kilometers, making it suitable for backbone connections or longer intra-building runs.

Installation Notes

The cable features a 2mm outer diameter, offering flexibility for routing within racks and conduits. Operating and storage temperatures range from -20°C to 60°C, accommodating a wide variety of installation environments. The LSZH rated jacket provides enhanced safety for installations in commercial buildings and data centers.

What's in the Box

  • 1x 1m LC to SC OS2 Duplex Fiber Optic Cable
Specifications
Cable Length: 1 m
Fiber Size: 9/125
Cable Jacket Material: Low Smoke Zero Halogen
Fire Rating: LSZH Rated
Fiber Classification: OS2
Maximum Data Transfer Rate: 100 Gbps
Cable Rating Type: Single Mode
Wavelength: 1260nm to 1625nm
Insertion Loss: 0.3dB
Return Loss: 55dB
Connector A: Fiber Optic LC Duplex
Connector B: Fiber Optic SC Duplex
Operating Temperature: -20C - 60C
Storage Temperature: -20C - 60C
Humidity: 40% - 70%
Cable OD: 2 mm
Product Length: 1.0 m
Product Width: 2.5 cm
Product Height: 1.0 cm
Weight of Product: 18.0 g
Warranty: Lifetime
Brand: StarTech
MPN: SMLCSC-OS2-1M
Connectivity: Ethernet
