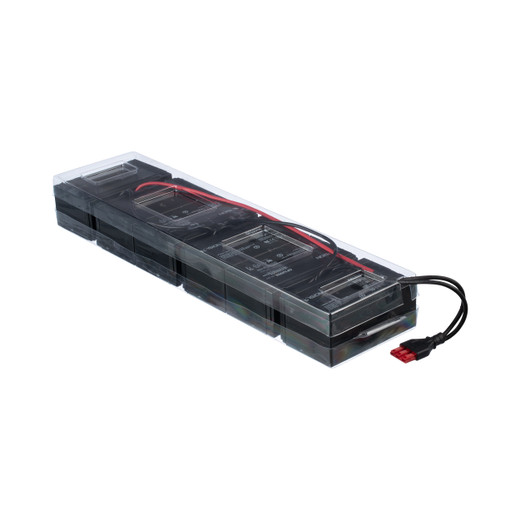

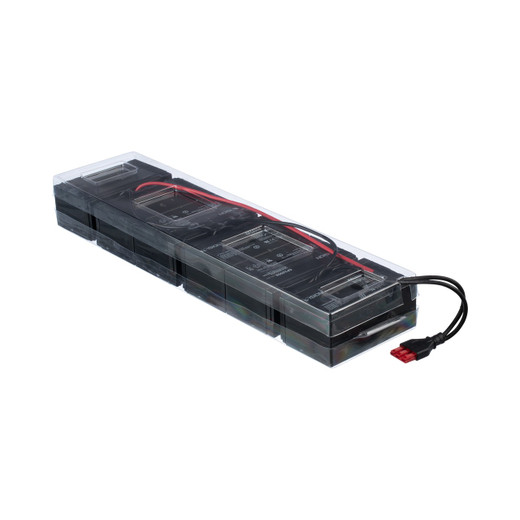

Panduit UVD072 72V VRLA Replacement Battery Cartridge
Overview
The Panduit UVD072 is a 72V VRLA (valve-regulated lead-acid) replacement battery cartridge set from the SteadySine™ line, engineered as a direct service component for the UVP072 UPS. When runtime degrades on a deployed SteadySine™ unit — a predictable event with sealed lead-acid chemistry after three to five years of float service — swapping in the UVD072 restores the UPS to full runtime specification without replacing the entire inverter chassis. That matters in power distribution environments where the UPS frame is mounted, wired, and commissioned: it's almost always cheaper to replace the battery set than pull the whole unit.
The UVD072 carries part number UVD072 and is listed as the manufacturer-designated replacement for the UVP072. It cross-references to competitor part APCRBC152, which gives integrators a direct substitution reference when sourcing against existing APC-based maintenance contracts — though the UVD072 is designed for and validated on the Panduit SteadySine™ platform, not retrofitted from a third-party spec.
Key Features
- 72V VRLA Chemistry: Valve-regulated lead-acid construction means no venting, no free electrolyte, and no requirement for battery rooms with forced ventilation. You can rack or cabinet-mount this cartridge in standard IT or security enclosures — relevant for facilities that don't have a dedicated UPS room.
- Direct OEM Replacement for UVP072: Designed specifically for the Panduit SteadySine™ UVP072 UPS, so you're replacing like-for-like on chemistry, voltage, and form factor. Third-party cartridges may not match the BMS communication protocol of the UVP072 — this eliminates that risk entirely.
- Compact Form Factor — 2.91 in H × 6 in W: The cartridge envelope (74.1 mm × 152.6 mm cross-section) is sized to slide into the UVP072 chassis without modification. Knowing the physical dimensions upfront lets facilities teams confirm clearance in a loaded rack before scheduling a maintenance window.
- Single-Unit Package Quantity: Sold as a single cartridge set (Package Quantity: 1), so procurement can order exactly the replacement count needed per UPS frame — no minimum bundle forcing over-purchase on a small maintenance refresh.
- Cross-Reference to APCRBC152: For sites running a mixed UPS environment or comparing against existing APC battery maintenance pricing, the APCRBC152 cross-reference makes the UVD072 easy to slot into a UPS accessories maintenance BOM without re-specifying from scratch.
- SteadySine™ Platform Compatibility: Part of the SteadySine™ ecosystem, which is Panduit's line of true sine-wave UPS hardware. True sine-wave output matters for sensitive loads — networking gear, access control panels, IP camera NVRs — where modified-sine-wave UPS units can cause instability or shorten equipment life.
Integration & Compatibility
The UVD072 is validated for use with the UVP072 UPS platform. If your site runs a different SteadySine™ model, verify the specific battery cartridge part number against that unit's service documentation before ordering — battery voltage and BMS interface are not universal across the SteadySine™ line. For multi-UPS deployments, replacement battery planning should account for install date per unit so cartridge swaps can be scheduled before runtime drops below the load threshold, rather than reacting to a low-battery alarm during a power event.
Integrators managing security infrastructure — IP cameras, NVRs, access control hardware — on SteadySine™ UPS units should treat battery cartridge replacement as a scheduled maintenance line item, not a reactive repair. VRLA cells in float service typically show measurable capacity decline by year three to four; waiting until alarm threshold is reached compresses the window between degraded-runtime detection and full failure.
Frequently Asked Questions
Q: What UPS model is the UVD072 designed for?
A: The UVD072 is the designated replacement battery cartridge set for the Panduit UVP072 SteadySine™ UPS. Confirm compatibility before ordering if you are servicing a different SteadySine™ model.
Q: What is the competitor cross-reference for the UVD072?
A: The UVD072 cross-references to APC part number APCRBC152. This is a sourcing reference only — the UVD072 is validated for the Panduit UVP072 platform.
Q: How many battery cartridges are included per order?
A: One battery cartridge set is included per unit ordered (Package Quantity: 1).
Q: What are the physical dimensions of the UVD072 cartridge?
A: The cartridge measures 2.91 inches (74.1 mm) in height and 6.0 inches (152.6 mm) in width. Verify chassis clearance against your UVP072 installation before scheduling the swap.
Q: Can the UVD072 be installed in a standard IT rack or security cabinet?
A: Yes. VRLA chemistry requires no ventilation provision beyond what a standard equipment cabinet provides — no free electrolyte, no venting gas under normal operating conditions. Install per UVP072 service documentation.
Q: Is the UVD072 a genuine factory-new component?
A: Yes. The UVD072 is a factory-new, genuine Panduit SteadySine™ battery cartridge set, sourced direct from the manufacturer — no grey-market, no parallel imports.
The UVD072 is a straightforward maintenance part, but getting the replacement decision right matters more than most people treat it. The cartridge set is rated for the UVP072 chassis specifically — the 72V configuration and SteadySine™ BMS interface are not interchangeable with other Panduit UPS models. I've seen sites order by price match on APCRBC152 cross-reference and end up with a cartridge that physically fits but doesn't communicate battery health correctly to the UPS management interface. The UVD072 is the part that was validated for this chassis.
Technical Highlights:
- 72V VRLA Construction: Sealed, valve-regulated chemistry eliminates the ventilation and spill-containment requirements of flooded cells — you can maintain this battery set inside a standard locked security or network cabinet without facility modifications.
- Compact 2.91 in × 6 in Footprint: The physical envelope (74.1 mm × 152.6 mm) is tight enough for dense rack environments. Measure your UVP072 bay clearance before the maintenance window — you don't want to discover a rack-accessory obstruction during the swap.
- OEM Cross-Reference APCRBC152: Useful as a BOM reference when comparing maintenance costs on mixed APC/Panduit sites, but treat it as a sourcing cross, not an interchangeability guarantee between platforms.
Deployment Considerations:
- Schedule cartridge replacement on a calendar interval — three to four years of float service is a practical planning horizon for VRLA cells in security infrastructure applications. Waiting for a low-battery alarm means you're already operating in degraded-runtime territory during active power events.
- The UVD072 ships as a single cartridge set (Package Quantity: 1). For a multi-UPS deployment, order per-frame and track install dates individually — staggered replacements are easier to manage than a synchronized fleet refresh.
This cartridge is the right call for any facility running the UVP072 to protect IP security infrastructure — NVRs, access control panels, PoE camera switches — where an unplanned UPS failure during a power event is a security posture gap, not just an IT inconvenience. Plan the swap before the runtime test fails, not after.
