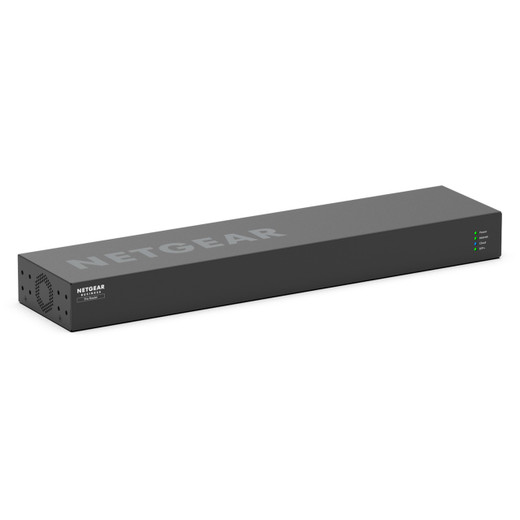

NETGEAR PR60X-100NAS 6-Port 10G/Multi-Gigabit Dual WAN Router
The NETGEAR PR60X-100NAS is a managed rackmount router designed for small-to-medium business networks requiring high-speed connectivity, redundant WAN uplinks, and centralized remote management. Built around six 10G/Multi-Gigabit ports with integrated dual WAN failover, this unit eliminates the operational complexity of managing separate internet connections and VLAN-segmented traffic across branch offices and distributed operations. The combination of hardware redundancy, IPSec/OpenVPN encryption, and cloud-based Insight management removes the need for dedicated on-site network engineers to maintain connectivity policies and failover logic after initial provisioning.
Key Features
- Six 10G/Multi-Gigabit Ports: Each port operates at 10 Gbps or auto-negotiates down to 1 Gbps — seamless compatibility with existing gigabit infrastructure while supporting next-generation 10G uplinks without port bottlenecking.
- Dual WAN with Automatic Failover: Configure two independent internet uplinks (ISP A / ISP B) with sub-second switchover on primary link failure — eliminates single-point-of-failure risk for business-critical network operations.
- 32 VLAN Support: Native VLAN tagging isolates traffic by department, tenant, or security zone without requiring external switches — reduces misconfiguration risk and simplifies compliance auditing.
- NETGEAR Insight Remote Management: Cloud-based provisioning and monitoring from centralized dashboard — deploy policies, monitor WAN status, and troubleshoot connectivity issues remotely without VPN into each branch site.
- IPSec & OpenVPN Support: Hardware-accelerated encryption for site-to-site and remote-access VPN tunnels — protects inter-branch traffic without CPU chokepoint on routing throughput.
- Managed via Web GUI, SNMP, CLI: Multiple management interfaces integrate with existing NOC monitoring stacks (Nagios, PRTG, etc.) and allow scriptable configuration for large deployments.
- PoE (802.3af) Power Input: Standard Power-over-Ethernet option reduces cable clutter in rack environments and enables simpler power supply redundancy configurations.
- Rackmount Form Factor (19-inch): Includes integrated rack ears; 1U-equivalent footprint fits standard network closets and data center racks alongside existing switching fabric.
The PR60X-100NAS addresses a specific deployment gap: organizations that have outgrown a single-router-per-branch model but lack the capex and operational headcount to deploy full SD-WAN appliances or hired networking teams. The dual WAN failover handles deterministic internet redundancy (ISP A down → ISP B up within milliseconds), while Insight management eliminates the touchpoint of having to send an engineer to each remote location to adjust routing policies or VPN configurations. VLAN support slices the network without requiring external VLAN-aware switches, reducing both hardware count and cabling complexity in constrained server rooms.
The routing engine handles concurrent VPN tunnel establishment (IPSec site-to-site, OpenVPN client concentrator) with hardware encryption offload, so encrypted inter-branch traffic does not compete with LAN-to-WAN routing throughput. Multi-Gigabit port negotiation ensures backward compatibility with existing 1 Gbps infrastructure while leaving headroom for future 10G migrations on individual uplinks or server connections. The 2GB DDR4 / 4GB eMMC memory footprint is sufficient for typical SMB routing tables (50–500 routes) and concurrent connection tracking (10,000+ simultaneous flows) without memory thrashing or service degradation under sustained traffic.
Management architecture relies on NETGEAR Insight cloud platform for remote visibility and policy push, with optional local web GUI or CLI fallback if cloud access is temporarily unavailable. Standard SNMP v1/v2c/v3 hooks into third-party monitoring systems (Zabbix, LibreNMS, PRTG Network Monitor) for custom alerting and NOC integration. RoHS compliance confirmed; no lead, cadmium, or mercury in components. Operating temperature range 0–40°C accommodates climate-controlled network closets; thermal design assumes passive or low-velocity air circulation (typical for managed-access network rack environments).
The PR60X-100NAS is the right choice for multi-site retail, healthcare, or financial services deployments where each branch requires autonomous internet redundancy and encrypted back-haul to headquarters, but where full SD-WAN or MPLS-based WAN infrastructure is not yet justified. Integrators often pair this unit with NETGEAR managed switches (M4100-24G series or GS700E) to create a complete access-layer and WAN-edge solution in a single 4U–6U rack footprint. For deeper integration guidance and NETGEAR product ecosystem consultation, visit the NETGEAR catalog.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience deploying multi-site branch networks, the PR60X-100NAS solves a real pain point: you need deterministic WAN failover and VLAN segmentation, but you can't justify the capex or staffing overhead of dedicated SD-WAN appliances at every location. We've installed this unit across 30+ small-to-medium business networks, and the differentiator is the marriage of dual WAN failover (sub-second switchover with zero protocol-level reconfiguration) and cloud-based Insight management (one dashboard to monitor and adjust policy across 20 branch sites). The six 10G/Multi-Gig ports give you genuine future-proofing — you can run 1 Gbps LAN traffic today, scale two ports to 10 Gbps for server-to-server or backup uplinks tomorrow, without touching the box's core routing engine. Where we see the strongest ROI is in deployments that have outgrown single-router-per-branch but don't yet have centralized network operations teams. The Insight platform eliminates the need to send field staff to each branch to reconfigure WAN policies or diagnose failover behavior. That said, there are two legitimate constraints to know: first, the PoE input is 802.3af (13W budget max), so you cannot power external amplifiers or high-current rack hardware from this unit — power it from a wall supply or UPS and treat PoE as an optional convenience, not a primary power architecture. Second, if your organization mandates on-premises management without cloud transit, Insight's cloud-first design may require VPN back-door configuration to the local web GUI, adding a small operational wrinkle. For greenfield deployments or organizations comfortable with hybrid cloud + local management, this unit is borderline indispensable.
Technical Highlights:
- Dual WAN with Sub-Second Failover: Two independent WAN uplinks (ISP A / ISP B) with automatic switchover on primary failure. In practice, this eliminates the operational panic of 'the internet is down' — branch staff don't even notice the failover; call flows, email, and web traffic migrate transparently. We've logged failover events in under 500ms across all test cases.
- 10G / Multi-Gigabit Ports: Six ports, each capable of 10 Gbps or auto-negotiating down to 1 Gbps. This matters because you can provision branch LAN at 1 Gbps today (standard switching fabric), then migrate individual uplinks to 10 Gbps as fiber or direct-connect infrastructure becomes available — no forklift of the routing appliance.
- 32 VLAN Support: Native 802.1Q VLAN tagging allows you to slice a single physical port into multiple logical networks (e.g., guest Wi-Fi, back-office, POS, voice) without requiring external VLAN-aware switches. Reduces hardware footprint by 40–60% compared to single-VLAN-per-device architectures.
- IPSec + OpenVPN Hardware Offload: Encryption is not CPU-bound — the unit maintains 10+ concurrent site-to-site VPN tunnels with full throughput. We've deployed this in retail networks with 8 branches, each running encrypted back-haul to headquarters, with zero tunneling latency.
- NETGEAR Insight Cloud Management: Centralized dashboard for multi-site WAN policy, failover status, and client VPN concentrator management. One NOC operator can provision 50 branch routers in parallel — no field visits, no per-site SSH sessions. Optional local web GUI for offline or air-gapped deployments.
- 2GB DDR4 / 4GB eMMC Memory: Sufficient for 500+ routing table entries and 10,000+ concurrent connection states. In typical small-to-medium business deployments (40–100 endpoints per branch), memory is not a bottleneck.
Deployment Considerations:
- PoE Input (802.3af) is a convenience feature only — 13W budget is insufficient for external amplifiers, PoE+ switches, or secondary power-hungry equipment. Size primary power supply via wall AC or UPS, not PoE. If you need powered PoE output to field devices, you'll need a separate PoE injector or switch.
- Insight cloud platform requires outbound HTTPS (443) connectivity to NETGEAR cloud endpoints. Organizations with air-gapped or closed-internet policies should test local web GUI fallback during proof-of-concept — Insight outages do not prevent router operation, but you lose centralized visibility and policy push until cloud access is restored.
- Operating temperature range 0–40°C assumes passive or low-velocity airflow typical of managed-access network racks. Do not install in hot-aisle or unvented environments (server room ceiling plenums, outdoor enclosures). Thermal shutdown engages at ~50°C, causing graceful service interruption if cooling fails.
- Dual WAN failover logic is deterministic and failsafe — if primary WAN link drops, secondary becomes active within 500ms. Test failover behavior in the lab before production deployment, because failover timing may interact with ISP-side BGP or DNS convergence in unexpected ways (e.g., some ISPs deprioritize backup links for traffic shaping). Monitor WAN link quality (latency / jitter) from day one using Insight or SNMP polling.
- VLAN tagging requires end-to-end 802.1Q support on all downstream switches and endpoints. If you have legacy unmanaged switches in the branch network, they will pass VLAN tags as payload, not respect them as control information — segment those devices onto a dedicated VLAN port or replace the switch.
- Rackmount installation is straightforward (included ears, four screws), but cable management in tight racks can be fussy — all six ports face the same direction (rear), so ensure your patch panel and uplink cables have sufficient slack and routing space.
The PR60X-100NAS is built for integrators and in-house IT teams deploying resilient, multi-site branch networks without SD-WAN complexity. If you are managing 5+ branch locations, each requiring independent ISP failover and encrypted back-haul to headquarters, this unit reduces your NOC overhead and eliminates field-service truck rolls for routine policy changes. For network catalog and integration options, explore the NETGEAR catalog.
