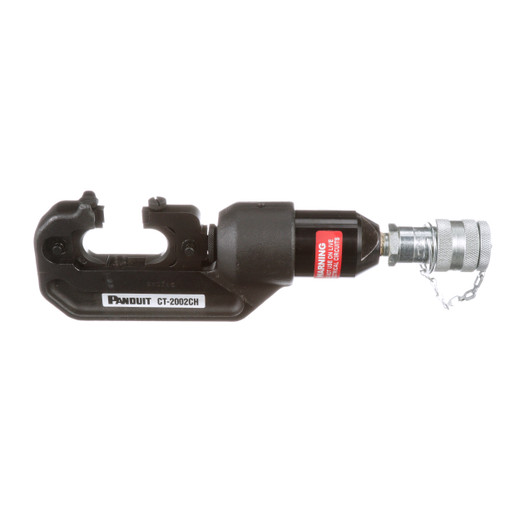

Panduit CT-2002CH Pan-Lug™ Hydraulic Crimp Head
The Panduit CT-2002CH is a 6-ton hydraulic crimp head engineered for commercial electrical contractors, datacenter installers, and industrial electricians terminating battery cables, UPS feeds, and heavy-gauge power distribution. Designed to pair with any 10,000 psi hydraulic pump, this crimp head delivers consistent compression force across copper lugs from 4 AWG through 750 kcmil, eliminating the variability and fatigue of manual ratchet tools. The included D3 die holder accepts Panduit's color-coded die sets, ensuring you meet NEC 110.14 torque and pull-test requirements on every termination. Compact enough for panel work yet built for daily production crimping, the CT-2002CH is the field-proven choice when inspector sign-off and long-term reliability matter more than tool cost.
Key Features
- 6-ton hydraulic force ensures full compression on lugs up to 750 kcmil, meeting UL 486A-486B crimping standards
- Interfaces with any 10,000 psi hydraulic pump (electric, manual, or battery-powered) for flexibility across jobsites
- Includes D3 die holder compatible with Panduit's indexed die system — no guessing which die fits which lug size
- Compact 12" length and 2.2" width fit into tight electrical enclosures and battery cabinets where swing-arm tools can't reach
- Tool-free die changes via quick-release collar let you swap from 2/0 to 750 kcmil in under 30 seconds
- Hardened steel construction withstands drop impacts and jobsite abuse without calibration drift
Hydraulic crimping eliminates the three failure modes that plague manual tools: incomplete compression from operator fatigue, inconsistent dwell time under load, and off-center crimp geometry. The CT-2002CH applies full tonnage in a controlled two-second cycle, holding peak force until the hydraulic pump auto-releases — every crimp gets the same 6 tons whether it's your first termination of the day or your fiftieth. This matters during pull-testing: inspectors routinely reject hand-crimped lugs that pass visual inspection but fail at 200 lbf because the crimp wasn't fully bottomed. With the CT-2002CH, the barrel compresses to the die's machined stop dimension every time, producing gas-tight contact between conductor strands and lug bore. The included D3 die holder is keyed to Panduit's color-coded die sets (sold separately) — the green D3-2 handles 2 AWG, the red D3-4/0 covers 3/0 through 250 kcmil, and so on. You'll know instantly if you've grabbed the wrong die because it won't fit the holder, preventing the mix-ups that turn into service calls six months later when a lug overheats under load.
This crimp head is built for the contractor running 4/0 battery strings in telecom huts, the industrial electrician landing 500 kcmil feeders on switchgear lugs, and the datacenter tech terminating dozens of PDU whips in a cage-dense environment. The 12-inch overall length gives you reach into deep panel interiors without sacrificing the rigidity needed to keep the die square to the lug axis — critical when you're crimping in a vertical orientation on a live-front cabinet. At 2.2 inches wide, the head clears the tight spacing between bus bars and adjacent breakers that forces you to uncrimp and reposition with bulkier tools. Pair it with a cordless hydraulic pump for rooftop solar combiner work, or run it off a benchtop electric pump when you're processing a pallet of pre-cut battery cables in the shop. The 10,000 psi operating pressure is the industry standard, so you're not locked into a single pump brand — Panduit, Greenlee, Burndy, and Hubbell pumps all drive this head without adapters. Field maintenance is straightforward: the die holder uses a snap-ring retention system that any electrician can service with a pick and pliers, and replacement parts cross-reference by the CT-2002CH model number in every major distributor's system.
The CT-2002CH meets UL 486A compression-connector standards and is built to ASME B30.1 criteria for hydraulic tooling used in electrical construction. Panduit backs the crimp head with a standard manufacturer warranty covering defects in materials and workmanship — not wear items like die inserts, but the head casting, piston seal, and release valve. This is the tool you specify when the project calls out "compression lugs per manufacturer's installation instructions" and the engineer actually checks your submittals, or when you're bidding a job where every lug termination gets photographed and logged for commissioning documentation. It's not the fastest crimp head on the market, and it's not the cheapest — but it's the one that passes inspection the first time and still crimps within spec after three years of daily use.
