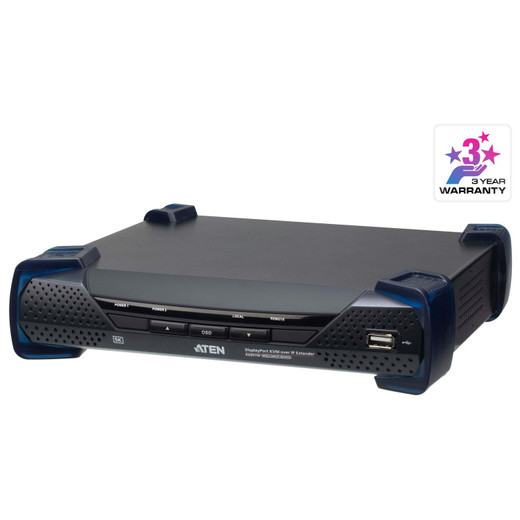

ATEN KX9970FR KVM Receiver

Overview

The ATEN KX9970FR is a 5K DisplayPort KVM over IP receiver designed for high-resolution, low-latency remote access over a 10Gb fiber network. This unit is critical for control room environments where operators need to manage servers or workstations located remotely, ensuring crisp video output and responsive control. The KX9970FR connects to the transmitter unit (sold separately) via 10Gb SFP+ fiber ports, facilitating long-distance, high-bandwidth connections required for demanding video resolutions and frame rates. Its USB keyboard and mouse support ensures seamless integration with standard input devices. The model number KX9970FR is your key to unlocking high-fidelity remote management.

Compatibility

This receiver is designed to work with the ATEN KE series KVM over IP transmitters, specifically those supporting 10Gb fiber connections. It is compatible with ATEN transmitters that provide DisplayPort video output and USB connectivity. This unit is intended for use within a structured ATEN KE KVM over IP matrix system, not as a standalone device.

Installation Notes

The ATEN KX9970FR supports recessed and rack mount installation. It requires two SFP+ modules for its 10Gb fiber LAN ports, which are not included and must be sourced separately based on your fiber type (e.g., multimode or single-mode) and distance requirements. The operating humidity range is 0–95% RH, non-condensing, suitable for climate-controlled environments. Firmware can be upgraded to v2.0.195 to ensure optimal performance and access to the latest features. A semi-recessed pushbutton allows for device reset.
