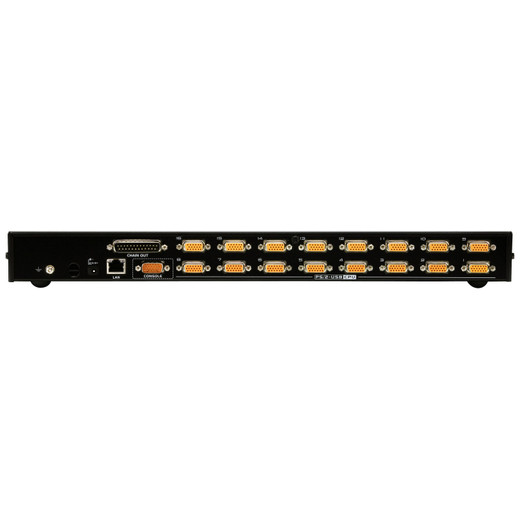

ATEN CS1716I KVM Switch

Overview

The ATEN CS1716I is a 16-port KVM over IP switch designed for centralized management of multiple servers. It allows a single local user and up to 32 remote IP users to simultaneously access and control 16 computers. This unit is ideal for data centers, server rooms, or any IT environment where efficient, consolidated server access is required. The CS1716I supports PS/2, USB, and VGA interfaces for broad compatibility with diverse server hardware. Its IP-based connectivity enables remote administration from virtually anywhere, streamlining operations and reducing the need for physical presence at each server.

Compatibility

This KVM switch supports PS/2 and USB keyboard and mouse connections, along with VGA video interfaces. It is compatible with a wide range of servers and computers utilizing these standard interfaces. The remote access functionality works over standard IP networks, making it compatible with any network infrastructure that supports TCP/IP. It is designed to manage servers running various operating systems, though specific OS compatibility is not detailed in the provided evidence.

Installation Notes

The ATEN CS1716I requires a 5V DC power source. Standard KVM cables (PS/2 or USB for keyboard/mouse, VGA for video) are needed to connect each server to the switch. Network connectivity is established via an Ethernet port, requiring a standard network cable. Configuration for remote access is managed through the switch's built-in interface, accessible via a web browser or dedicated client application.
