ATEN CS1716A KVM Switch

Overview

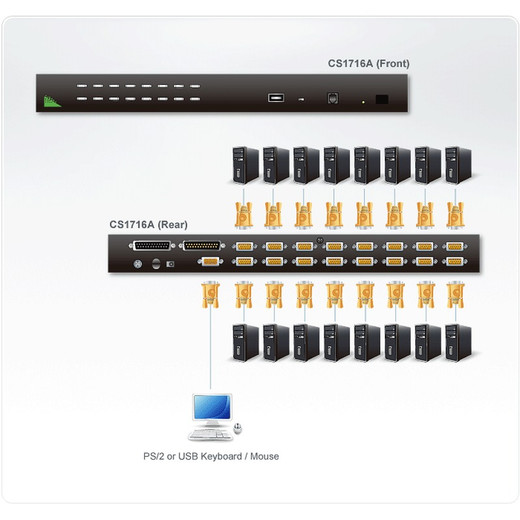

The ATEN CS1716A is a 16-port PS/2-USB KVM switch designed for IT environments where consolidating console access is critical. It allows a single operator to manage multiple servers or workstations from one set of peripherals (keyboard, video, mouse), streamlining operations and reducing physical footprint. This rack-mountable unit is ideal for server rooms, data centers, or testing labs where efficient control over numerous systems is required. The CS1716A model supports direct connections to 16 computers and can be daisy-chained to control up to 512 systems, providing significant scalability for growing IT infrastructures.

Compatibility

This KVM switch supports both PS/2 and USB console connections, offering flexibility for various keyboard and mouse types. It connects directly to computers via SPHD-15 connectors, accommodating standard PC configurations. The daisy-chaining capability allows it to integrate with other compatible ATEN KVM switches, extending control reach. It is designed for use with standard PCs and servers running common operating systems.

Installation Notes

The CS1716A features a rack-mountable form factor, designed to fit standard 19-inch server racks. Its dimensions are 17.0 inches long, 1.8 inches high, and 4.5 cm deep, ensuring it occupies minimal rack space. The unit supports a maximum resolution of 2048 x 1536, enabling clear video output for detailed monitoring. Hotkey switching and an on-screen display (OSD) facilitate quick and intuitive device selection and configuration.
