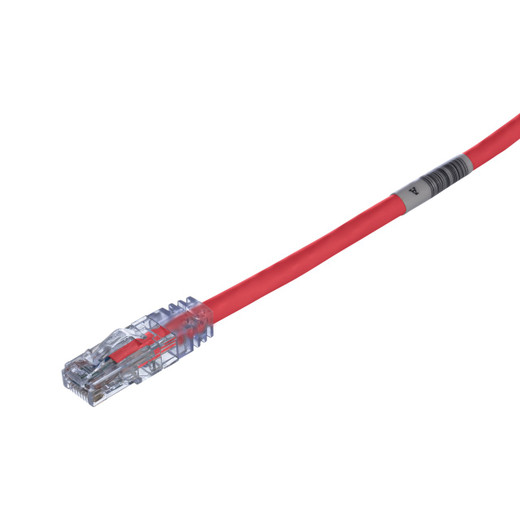

Panduit UTPSP5RDY Cat 6 UTP Patch Cord
The Panduit UTPSP5RDY is a 5-foot Cat 6 UTP patch cord engineered for high-density IP camera headends, access control panels, and structured cabling deployments where performance, documentation, and reliability matter. Built on the TX6 PLUS platform, this red-jacketed cord combines 24 AWG stranded copper construction with a tangle-free modular plug design that speeds moves, adds, and changes while preventing the snags that waste time in crowded patch fields. RapidID barcode integration enables instant port mapping and as-built documentation—critical for integrators managing multi-building camera systems or large enterprise access control networks. Supports 10GBASE-T Ethernet and PoE++ (802.3bt Type 3/4) for powering PTZ cameras, multi-radio access points, and high-draw IP endpoints up to 90W.
Key Features
- 5 ft Cat 6 U/UTP stranded copper patch cord, 24 AWG conductor
- TX6 PLUS modular plugs with centered de-embedded contacts and integral pair manager
- Patented tangle-free latch prevents snags during MACs in high-density patch panels
- RapidID pre-installed barcode for one-scan port mapping and documentation
- Supports 10BASE-T through 10GBASE-T Ethernet, 802.3af/at/bt PoE (Type 3 & 4, up to 90W)
- 100% performance tested for wire map, NEXT, and return loss at 1-250 MHz
- Exceeds ANSI/TIA-568.2-D Cat 6 and ISO 11801 Class E standards
- CM rated, UL 1863 and CSA C22.2 listed, RoHS compliant, T568A/B compatible
- Red jacket for color-coded zone identification (camera, access, AV, etc.)
- Slender strain relief boot for easy insertion in congested rack environments
The TX6 PLUS modular plug is the core differentiator. Its centered de-embedded contact design maintains pair geometry through the plug body, preserving signal integrity across the full 250 MHz bandwidth—critical when you're pushing 10GBASE-T or high-bitrate video over distance. The integral pair manager inside the plug boot guides conductors into position without the twist-rate relaxation that degrades NEXT performance in lesser patch cords. Stranded 24 AWG copper delivers the flexibility needed for repeated flexing in patch cord service (versus solid conductor horizontal cable), and the CM flame rating meets NEC Article 800 requirements for general-purpose horizontal runs and equipment-room interconnects. Every cord ships with certified test results for wire map, near-end crosstalk, and return loss, so you're not trusting factory claims—you have data.
In the field, this cord solves real problems. Use it for IP camera headend patching—PoE injector to switch, switch to NVR, NVR to SAN—where you need to trace circuits months after install. The RapidID barcode works with Panduit's RapidID mobile app: scan the cord, assign the port, photograph the connection, and you've got as-built documentation that lives in the cloud, not a three-ring binder. The tangle-free latch is not marketing—it's a different latch geometry that releases cleanly even when buried under 47 other patch cords in a congested 2-post relay rack. For PoE deployments, this cord is validated for 802.3bt Type 3 and Type 4 (up to 90W)—sufficient for four-radio Wi-Fi 6E access points, 60W PTZ cameras with heater/blower, and IP intercoms with RGB flood lighting. The red jacket is a jobsite standard for color-coding: cameras on red, access control on blue, voice on yellow, data on gray. On a 96-port camera switch serving four buildings, color-coding is the difference between a clean cutover and a wire-tracing nightmare.
Panduit backs the TX6 PLUS system with a lifetime warranty when installed per the manufacturer's structured cabling guidelines and registered within 90 days. That's not a cord warranty—that's a system warranty covering end-to-end channel performance, which matters when a failed certification costs you a truck roll and a change order. The T568A/B compatibility means you can terminate horizontal cable to either standard and this cord will interoperate without rework. For integrators running 10GBASE-T to IP camera encoders, 4K-over-IP AV gear, or converged building-automation controllers, this is the patch cord that proves performance, documents the install, and survives the next three infrastructure refresh cycles.
