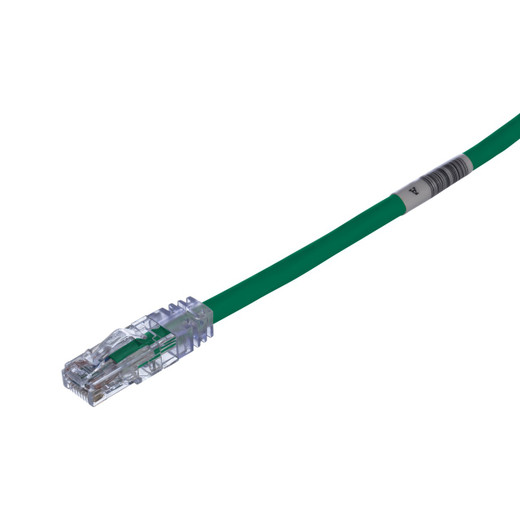

Panduit UTPSP5GRY 5 ft Cat 6 UTP Patch Cord - Green

Panduit UTPSP5GRY TX6 PLUS Cat 6 UTP Patch Cord

The Panduit UTPSP5GRY is a 5-foot Cat 6 UTP patch cord engineered for high-density structured cabling installations where reliability, performance, and efficient port management are non-negotiable. Built on the TX6 PLUS platform with Pan-Net construction, this green-jacketed cord uses 24 AWG stranded copper conductors in an unshielded twisted-pair (U/UTP) configuration, delivering full Cat 6 performance to 250 MHz while maintaining the flexibility installers need for tight-radius routing in crowded patch panels and switch stacks. Every cord ships with RapidID pre-installed barcodes, enabling one-scan port mapping and documentation—eliminating the manual label-and-spreadsheet workflow that burns hours during enterprise MAC events or datacenter audits.

Key Features

• Tangle-free latch design prevents snags on adjacent cords during installation and prevents accidental disconnects during routine rack work
• RapidID barcode system enables smartphone-based port mapping and cable tracing with Panduit's RapidID software—no manual labeling
• Slender strain-relief boot provides full mechanical protection while maintaining clearance in ultra-high-density 48-port panels
• Factory-tested for wire map, NEXT, and return loss—ships with test results, eliminating field certification for horizontal-to-equipment connections
• Exceeds ANSI/TIA-568.2-D Cat 6 and ISO 11801 Class E standards across the full 1-250 MHz spectrum
• Supports IEEE 802.3bt Type 3 and Type 4 PoE++ applications delivering up to 90W—suitable for PTZ cameras, high-power access points, and LED lighting controllers
• Centered de-embedded plug with integral pair manager maintains pair geometry through the termination, preserving alien crosstalk margins in 10GBASE-T links
• Compatible with both T568A and T568B wiring schemes—works in mixed-standard environments without re-termination

The UTPSP5GRY uses 24 AWG stranded conductors rather than solid-core wire, giving it the flex-cycle durability required for patch cords that see repeated connection and disconnection. The U/UTP construction (unshielded) makes it the correct choice for environments where external EMI is controlled and where you need to avoid ground-loop issues that can arise with screened or shielded cordage. Panduit's modular plugs feature a centered contact layout and an internal pair manager that maintains the twist rate all the way to the pin interface—this is what allows the cord to exceed Cat 6 insertion loss and NEXT specs even at the 250 MHz upper limit, and it's why the cord can support 10GBASE-T Ethernet over distances up to 55 meters (the IEEE 802.3an standard allows shorter runs than the 100-meter channel limit when alien crosstalk is controlled). The plug's 50-micron gold plating on the contacts ensures low contact resistance and corrosion immunity over thousands of insertion cycles.

In practice, the tangle-free latch is the feature that separates this cord from commodity patch cables during large-scale deployments. The latch uses a low-profile, top-loading design that prevents the hook from catching on adjacent cord boots when you're pulling a single cord out of a dense bundle—a problem that can cascade into accidental disconnects on production links when you're working in a live 48-port switch stack. The slender strain-relief boot is only 6.5 mm in diameter at its widest point, which means you can achieve full 48-port density on a single RU panel without the boot-to-boot interference that forces you to skip ports or use angled boots. For MAC-heavy environments—think hospital IT closets, university dorm switches, or hot-desk office floors—the RapidID barcode system turns a two-person, 90-minute documentation job into a one-person, 15-minute scan-and-upload task using Panduit's free iOS/Android app. The app generates port-to-device maps, exports to CSV for asset management systems, and timestamps every scan for compliance audit trails.

The UTPSP5GRY carries CM (communications) flammability rating per UL 1863 and CSA C22.2, making it code-compliant for horizontal and plenum-return pathways in the United States and Canada (plenum-rated versions are available under separate Panduit MPNs if your AHJ requires CMP). It's RoHS-compliant for EU and California installations, and it's UL-listed under file E129886, which satisfies the procurement requirements for federal, healthcare, and educational projects that mandate third-party safety certification. The green jacket color is part of Panduit's standard TIA-606-C color-coding palette, typically used to designate network auxiliary circuits, VoIP endpoints, or specific VLANs in multi-tenant or segmented LAN architectures—your documentation standards will dictate the mapping, but the color consistency across Panduit's TX6 PLUS line ensures you can maintain visual coding discipline across an entire structured cabling system.
