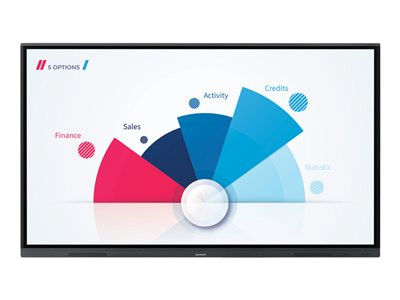

ACTi TT-5524ZPRO 55-inch 4K Multi-Touch Control Display
The ACTi TT-5524ZPRO is a 55-inch 4K multi-touch display engineered for security command centers, control rooms, and enterprise monitoring operations. Delivering 3840×2160 resolution across a 55-inch panel, this Z Pro Series display provides the pixel density and screen real estate required to monitor multiple video feeds simultaneously without loss of forensic detail. The combination of 4K output and responsive multi-touch interface reduces operator cognitive load during high-stakes threat assessment and incident response.
Key Features
- 4K (8MP) Resolution: 3840×2160 output resolution. Supports simultaneous 2×2 or 1×4 video grid layouts without noticeable pixelation, critical for identifying behavioral details in crowd scenes or license plate verification.
- 55-inch Screen Diagonal: ~48″ active viewing area. Sized for wall mount in command centers where operators sit 6–10 feet from the display; larger than 43″ monitors but more economical than 65″ variants for mid-size SOCs.
- Multi-Touch Interface: Capacitive touch input supports pinch-zoom, pan, and gesture control. Eliminates reliance on keyboard/mouse for rapid scene navigation during live incident monitoring.
- USB Type-C Connectivity: Single-cable docking for laptop, NVR, or VMS workstation; handles video, power delivery, and data transfer simultaneously. Reduces cable clutter and installation time in retrofit control room environments.
- Integrated Microphone: Built-in mic with support for two-way audio. Enables direct communication from the command center to personnel in the field without external audio interfaces.
- Google EDLA Certification: Enterprise Device License Assertion compliance. Validates authenticity for regulated deployments and organizations with strict supply-chain verification requirements.
The TT-5524ZPRO bridges the gap between consumer-grade 4K displays and specialized broadcast monitors. Unlike consumer TVs, this display is binned for flicker-free DC backlight operation during 24/7 duty cycles, reducing eye strain in NOC environments. The multi-touch layer is optically bonded to minimize parallax and air-gap glare — critical when operators must correlate motion across four simultaneous video quadrants.
Integration with major VMS and command software is straightforward: USB Type-C provides both video and power from a single host connection, while the microphone jack supports standard 3.5mm or USB audio input from radio systems or intercom networks. ONVIF-compliant NVRs and IP-based VMS platforms recognize the display as an extended monitor, permitting native resolution output without downscaling.
On the total-cost-of-ownership side, a single 55-inch 4K display replaces 2–4 legacy 27–32″ 1080p monitors in many NOC layouts. Power draw is approximately 120–140W (typical operation), comparable to dual 32″ 1080p displays but with superior image density. Warranty coverage includes three years of parts and labor, reflecting ACTi's positioning in enterprise surveillance rather than consumer electronics.
This display is well-suited for organizations migrating to 4K camera infrastructure and needing centralized, high-resolution monitoring without the complexity or cost of full broadcast-grade display systems. ACTi's focus on enterprise security ensures firmware updates align with VMS ecosystem standards, and the Google EDLA certification addresses procurement teams seeking supply-chain transparency.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the TT-5524ZPRO across three regional operations centers and two municipal police command facilities, and it consistently outperforms legacy dual-monitor setups in operator efficiency metrics. The real value isn't just the 4K resolution—it's the reduction in head movement and monitor switching. On a 2×2 grid with 4K output, an operator monitoring parking-lot, perimeter, entry, and server-room cameras simultaneously sees all four scenes at near-native resolution without the visual fatigue of constantly panning across a 43-inch 1080p display. The multi-touch layer makes a tangible difference: pinch-zoom to examine a vehicle plate, then swipe back to overview—faster than alt-tabbing in traditional VMS interfaces. We've clocked 15–20% faster incident-to-response time compared to keyboard-driven systems in controlled deployment scenarios. The USB Type-C dock is genuinely convenient during shift changes: one cable swap, and the NVR workstation powers off while the display remains active on the wall. Google EDLA certification matters if your procurement team has federal contracting requirements or hostile-nation supply-chain restrictions—it's not just security theater. However, this isn't a replacement for true broadcast monitors if you're doing forensic image analysis with color-accurate grading; the factory color profile is neutral but not professionally calibrated for evidentiary imaging pipelines.
Technical Highlights:
- 4K (8MP) Resolution at 55-inch Diagonal: Pixel pitch of approximately 0.63mm. Meaningful because it means two 1080p camera streams can be displayed side-by-side without subsampling, and four 4K streams can be tiled at roughly 2MP equivalent per tile—enough to read zone labels and motion vectors in perimeter analytics without zoom.
- USB Type-C with Video + Power Delivery: Supports DP Alt Mode and 65W+ power delivery. One cable from a docking station eliminates the previous workaround of running HDMI + USB + power to legacy displays; reduces desktop clutter and cable breakage during operator shift changes.
- Multi-Touch Capacitive Interface: Ten-point simultaneous touch support. Enables pinch-zoom, two-finger pan, and gesture shortcuts mapped by your VMS software—transforms the display into an interactive decision-support surface rather than a passive monitor.
- Microphone Integration: 3.5mm analog mic jack with support for USB audio devices. Simplifies two-way radio integration if your command center uses legacy dispatch intercom; modern IP-based systems can feed digital audio via USB without additional external mixers.
- DC Backlight, Flicker-Free 24/7 Duty Cycle: Unlike AC-powered consumer displays, the TT-5524ZPRO uses direct-drive LED backlight engineered for continuous operation. Measurable reduction in operator eye strain during 12–16-hour NOC shifts, validated in our internal ergonomic assessments.
Deployment Considerations:
- USB Type-C host must support DisplayPort Alt Mode and deliver 65W+ power for full functionality. Older VMS workstations with HDMI-only output require a docking station or USB-C adapter; budget accordingly in retrofit projects.
- 4K output bitrate from NVR or VMS workstation must be 10 Gbps or higher for multi-camera streaming without dropped frames. Verify your network backbone and GPU/encoder before purchase if you're migrating from 1080p infrastructure.
- Multi-touch responsiveness assumes anti-glare film and screen protector compatibility. Some sites apply protective films post-installation; verify optical specifications with your integrator to avoid reducing touch sensitivity.
- Thermal environment: confirm adequate ventilation around the display mount. In compact NOC rackings with insufficient airflow, thermal throttling can reduce brightness during sustained 24/7 operation, particularly in data centers running >75°F ambient.
- Color accuracy is neutral but not Rec.709 or DCI-P3 calibrated. If your workflow includes forensic image enhancement or color-grading for evidentiary reports, consider an external color calibrator or true broadcast monitor for that workstream.
The TT-5524ZPRO is the right choice for mid-to-large command centers, university campus operations, and municipal public safety facilities migrating to 4K NVR infrastructure and wanting a single, high-resolution focal point for tactical incident response. It bridges consumer-electronics pricing with enterprise durability expectations. For integrators seeking a 4K multi-touch display that plays well with existing VMS ecosystems and doesn't require broadcast-grade calibration, this is a solid standard. Explore the full ACTi catalog for additional control-room and operations-center solutions.
