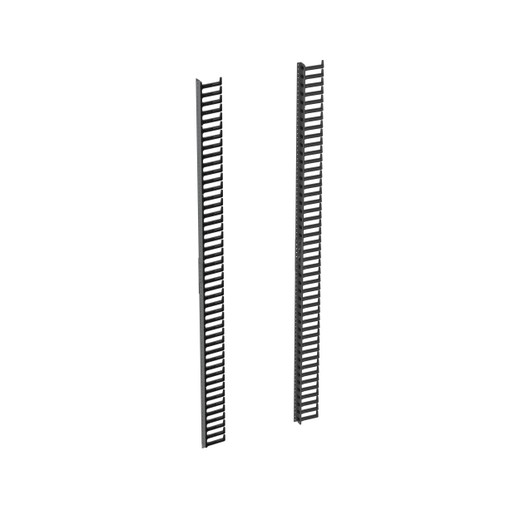

Panduit D18FBB Net-Verse Cable Management Fingers
The Panduit D18FBB Net-Verse finger bracket kit addresses vertical cable management in high-density 48 RU installations. Designed for 800mm-wide cabinets, these full-height cable management fingers provide structured routing channels that prevent cable strain, maintain bend radius compliance, and preserve front-to-back airflow in equipment rows. The kit includes rail-mount brackets engineered for Net-Verse cabinet systems, delivering tool-free attachment to standard vertical rails. Black powder-coat finish integrates with data center aesthetics while the 142mm depth accommodates high cable counts without encroaching on equipment clearance zones.
Key Features
- 48 RU full-height coverage (2001.4mm / 78.79") for floor-to-ceiling cable discipline in standard data center cabinets
- 800mm cabinet width compatibility with Net-Verse rail mounting system for drop-in installation
- 142mm (5.6") finger depth provides generous cable capacity without blocking airflow or consuming equipment space
- Tool-free bracket attachment to standard vertical cabinet rails—no drilling or field modification required
- Black powder-coat finish matches data center and network operations center aesthetics, resists corrosion
- RoHS compliant construction meets procurement requirements for federal, healthcare, and enterprise facilities
The D18FBB's 48-rack-unit vertical span handles the full height of contemporary data center cabinets, eliminating the cable sag and cross-cabinet tangles that plague mid-height or segmented management systems. The 142mm finger depth is calibrated for Cat6A and fiber trunk bundles—deep enough for 40+ cables per side without crushing jacket insulation or violating bend radius minimums, yet shallow enough to preserve the cabinet's internal equipment depth. Mounting brackets interface with Net-Verse rail patterns using captive hardware; installers align the bracket flanges to pre-punched holes and secure without drilling or custom fabrication. The black powder-coat finish resists corrosion in humid or coastal server rooms and maintains appearance under the constant abrasion of cable moves, adds, and changes that characterize active data centers.
In high-density switch and patch panel deployments, unmanaged vertical cabling becomes a maintenance liability—technicians pulling one cable disturb twenty others, and heat exhaust from top-mounted equipment recirculates into intake zones when cables block chimney airflow. The D18FBB finger system compartmentalizes cable bundles into vertical lanes, so adds and changes stay surgical rather than invasive. For multi-tenant colocation or managed service provider environments, the full-height design supports per-customer or per-VLAN cable segregation; each finger channel can be dedicated to a client or service tier, simplifying audits and preventing accidental cross-connects during maintenance windows. Pair with Panduit horizontal managers at switch and panel levels to create a grid that enforces structured pathways from building entrance to endpoint, reducing troubleshooting time and change-order risk.
RoHS compliance meets procurement requirements for federal, healthcare, and multinational enterprise installations where hazardous substance restrictions apply. The Net-Verse rail-mount design eliminates the guesswork and field modification common with generic finger kits—if your cabinet is 800mm wide and carries the Net-Verse nameplate, the D18FBB drops in without adapter plates or custom brackets. For integrators managing dozens of cabinets in a data center refresh or greenfield build, this standardized fit accelerates deployment and reduces the bill-of-materials complexity that stalls staging and inventory management. Single-kit packaging simplifies ordering for projects where each cabinet needs dedicated vertical management on both sides.
