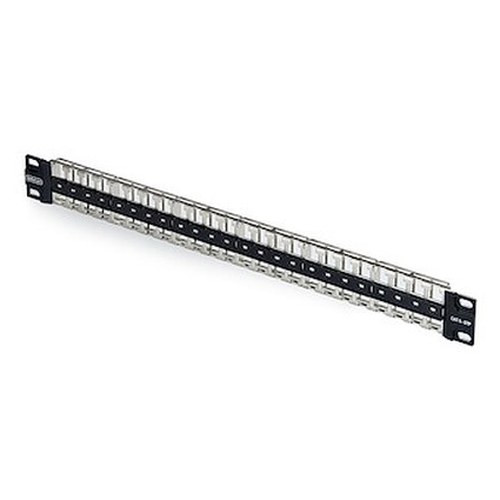

StarTech C6PANELSTP481U 48-Port 1U Blank Keystone Patch Panel with Grounding Wire

Overview

The StarTech C6PANELSTP481U is a 48-port, 1U blank keystone patch panel built for structured cabling installations that require shielded (STP) or unshielded (UTP) keystone jack terminations in a single rack unit. The steel construction and integrated grounding wire make it a practical choice for data centers, security head-end rooms, and IDF closets where you need a clean, organized termination point without committing to pre-terminated connectors. Ports ship empty — you populate them with the keystone jacks your cabling standard requires, giving you full flexibility over media type and category rating.

Key Features

• 48 Ports in 1U: Fitting 48 keystone jacks into a single rack unit (1.7 in height) keeps patch panel real estate tight — useful in fully loaded 2-post or 4-post racks where U-space is at a premium.
• Blank Keystone Design: Ships without jacks installed, so you choose the keystone modules — Cat6A STP, Cat6 UTP, fiber, or even USB/HDMI keystones — without being locked into a pre-terminated configuration you may need to change later.
• Integrated Grounding Wire — STP-Ready: The included grounding wire lets you bond the panel to rack ground, which is required when terminating shielded twisted-pair cabling. Without proper grounding, STP loses its EMI rejection advantage — this panel is built to handle that correctly.
• Steel Construction: The all-steel chassis handles the mechanical stress of repeated jack insertions and cable weight without flexing. At 10.9 oz, it's light enough for a single installer to rack without assistance.
• Standard 19-Inch Rack Width: At 19.0 in wide, the C6PANELSTP481U fits any standard EIA-310 19-inch rack or cabinet — no adapter ears or custom mounting needed.
• Wide Operating Temperature Range: Rated -10°C to 60°C in operation and -40°C to 70°C in storage, so it survives uncontrolled environments like attic IDFs or outdoor-rated cabinets without degrading the termination points.
• 3-Year Warranty: StarTech backs this panel with a 3-year manufacturer warranty — relevant for passive infrastructure that tends to stay in racks for years without active monitoring.

Integration and Compatibility

The C6PANELSTP481U accepts standard 110-style keystone jacks from most manufacturers, making it compatible with structured cabling accessories across Cat5e, Cat6, and Cat6A categories. It is suitable for use in network switch head-end racks, security camera patch rooms, and any installation following TIA-568 cabling standards. For STP deployments — common in environments with high EMI such as manufacturing floors or broadcast facilities — pair this panel with shielded keystone jacks and shielded patch cables to maintain continuity of the shield from jack to jack. Integrators building out IP camera infrastructure or VoIP distribution racks will find the blank format useful when cabling runs arrive in batches and termination happens in phases. Review a structured cabling planning guide if you are sizing patch panel capacity for a new installation.

Frequently Asked Questions

Q: Does the C6PANELSTP481U come with keystone jacks included?

A: No. The panel ships blank — keystone jacks are not included. You populate the 48 ports with the keystone modules your cabling project requires, which can be Cat6, Cat6A STP, fiber, or other standard 110-type keystones.

Q: Is the C6PANELSTP481U compatible with both STP and UTP keystone jacks?

A: Yes. The panel accepts standard keystone jacks for both shielded (STP) and unshielded (UTP) cabling. The included grounding wire is specifically for STP deployments where the panel chassis must be bonded to rack ground.

Q: What rack size does this panel fit?

A: The C6PANELSTP481U is 19.0 inches wide and 1U (1.7 inches) tall, fitting any standard EIA-310 19-inch rack or cabinet.

Q: What is the warranty on the C6PANELSTP481U?

A: StarTech provides a 3-year manufacturer warranty on this panel.

Q: Can this panel be used in outdoor or high-temperature environments?

A: The operating temperature range is -10°C to 60°C, which covers most indoor and some outdoor-rated enclosure installations. Storage is rated to -40°C to 70°C. It is not rated for direct exposure to rain or moisture — install inside an appropriate NEMA-rated enclosure for outdoor use.

Karl Wilson

The C6PANELSTP481U is a blank-format panel, and that distinction matters more than it sounds. In installations where you're phasing in camera runs or mixing media types across a head-end rack, arriving on site with a pre-terminated panel commits you to a jack configuration before the cabling design is final. The blank keystone format lets you terminate each port as the run lands — Cat6A STP where EMI is a concern, standard UTP where it's not — without pulling and replacing a fully populated panel later.

Technical Highlights:

• 48 Ports, 1U Height: At 1.7 inches tall, this panel occupies a single rack unit regardless of how many jacks are installed — critical when you're managing a tight 12U or 18U IDF enclosure and every unit counts.
• Integrated Grounding Wire: STP cabling only delivers its EMI rejection benefit when the shield is continuous and properly grounded at termination. The grounding wire on this panel makes that straightforward — bond to rack ground before terminating STP jacks and the shield path is complete.
• Steel Construction, 10.9 oz: Light enough for single-person installation, rigid enough to handle the insertion force of 48 keystone jacks and the weight of patch cables without the panel flexing in the rack.

Deployment Considerations:

• Keystone jacks are not included — budget for 48 jacks per panel and confirm your jack vendor's modules are standard 110-type before ordering in volume. Not all proprietary keystone formats are cross-compatible.
• The -10°C lower operating limit means this panel is not suited for unheated outdoor enclosures in climates that drop below 14°F — check your enclosure's minimum ambient before specifying for exterior MDF locations in cold regions.

For a security integrator building out a camera head-end room with shielded structured cabling — particularly in a manufacturing or industrial environment where variable-frequency drives or heavy electrical equipment run nearby — the C6PANELSTP481U gives you the flexibility and grounding infrastructure to do STP termination correctly without overcommitting your panel layout before all runs are pulled.
