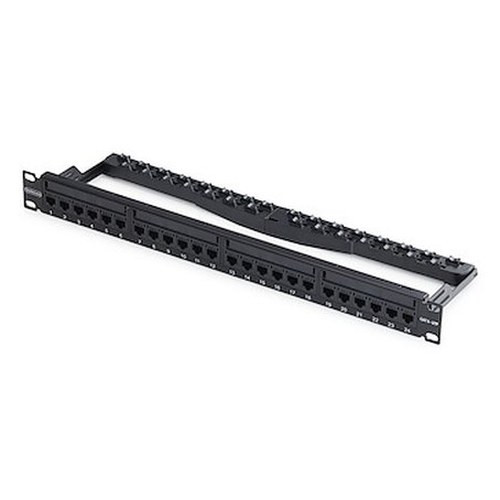

StarTech C6PANELUTP241UFT 24-Port 1U Feed-Through Patch Panel

Overview

The StarTech C6PANELUTP241UFT is a 24-port, 1U feed-through patch panel built for structured cabling installations where simplicity, density, and flexibility matter. Unlike punch-down panels that require termination tools and careful pair management at the panel itself, this unit ships with 24 pre-installed RJ45 UTP inline couplers — you plug a Cat6 or Cat5e cable into each end and you're done. That makes it the right choice for MDF/IDF builds, security system head-end racks, and any environment where technicians need to quickly re-route or reconfigure cable runs without re-terminating.

At exactly 1U and 19 inches wide, the C6PANELUTP241UFT drops into any standard EIA 19-inch rack without occupying extra vertical space — a meaningful constraint when you're managing a fully populated 2-post or 4-post rack in a telco closet or server room. The steel construction keeps the panel rigid under repeated plug/unplug cycles, and the black finish is consistent with most commercial rack environments.

This panel supports both Cat6 and Cat5e cabling, so it fits installations running either standard without requiring two separate SKUs in your inventory. For IP camera deployments, surveillance head-ends, or network switch consolidation points, feed-through patch panels like this one reduce termination time significantly compared to 110-style punch-down alternatives.

Key Features

• 24 Pre-Installed RJ45 UTP Inline Couplers: Every port ships ready to use — no punch-down tool, no 110 block termination required. For a technician wiring a 24-camera rack, that's a measurable reduction in labor time versus field-terminated alternatives.
• Cat6 and Cat5e Compatible: Supports both cable standards in the same panel, so you can deploy it in mixed-cabling environments without stocking separate panel SKUs. Useful in retrofit projects where some runs are Cat5e legacy and new pulls are Cat6.
• 1U / 19-Inch Form Factor: Occupies exactly one rack unit in any standard EIA 19-inch rack. In a 12U wall cabinet or a 42U floor rack, this gives you 24 structured cabling ports without sacrificing space needed for switches, NVRs, or PoE injectors.
• Steel Construction: The steel chassis resists flex when ports are under cable tension — relevant in dense cable environments where a plastic panel would warp over time and make port labeling unreliable.
• Feed-Through Design: Patch cables connect on both the front and rear faces via the inline couplers. This means cable changes happen at the panel face without touching the rack wiring infrastructure behind it, which simplifies moves, adds, and changes in live environments.
• Operating Temperature -10°C to 60°C: Covers the full range of conditioned IDF closets and light-industrial environments. The wider storage range (-40°C to 70°C) means it ships safely in uncontrolled freight conditions without risk of coupler damage before installation.
• 85% Max Humidity Tolerance: Non-condensing humidity tolerance is sufficient for most indoor telecom and equipment room environments, though this is not rated for outdoor or high-moisture spaces.
• 3-Year Warranty: StarTech backs this panel with a 3-year manufacturer warranty, which is consistent with commercial cabling infrastructure expected to remain in place across multiple lease cycles or system refreshes.

Integration & Compatibility

The C6PANELUTP241UFT integrates directly into any PoE switch or patch infrastructure using standard RJ45 patch cables — no proprietary connectors, no special tooling. It is compatible with Cat6 and Cat5e horizontal runs, making it suitable for IP surveillance consolidation points, VoIP distribution frames, and general-purpose structured cabling in commercial buildings.

For security integrators building out NVR-based systems, this panel provides a clean demarcation point between horizontal camera runs and the head-end switch, making troubleshooting and port reassignment faster. Pair it with a managed network switch and proper cable management to keep your rack organized across the full system lifecycle. For guidance on planning your cabling infrastructure for surveillance deployments, refer to a structured camera and network planning guide.

The 19-inch mounting width is universal across two-post relay racks, four-post open frames, and enclosed wall-mount cabinets. No additional mounting adapter is required for standard EIA-compliant racks.

Frequently Asked Questions

Q: Does the C6PANELUTP241UFT require any termination tools to install?

A: No. The panel ships with 24 pre-installed RJ45 UTP inline couplers. You connect patch cables on the front and rear faces — no punch-down tool, no 110 block termination needed.

Q: What cable types are compatible with the C6PANELUTP241UFT?

A: The panel supports both Cat6 and Cat5e unshielded twisted pair (UTP) cabling, making it suitable for mixed-standard environments.

Q: Will this panel fit in a standard 19-inch rack?

A: Yes. The C6PANELUTP241UFT is 19 inches wide and occupies exactly 1U of rack space, compatible with any standard EIA 19-inch two-post or four-post rack.

Q: What is the warranty on the C6PANELUTP241UFT?

A: StarTech provides a 3-year manufacturer warranty on the C6PANELUTP241UFT.

Q: Is this panel rated for outdoor or high-humidity environments?

A: No. The panel is rated for operating temperatures of -10°C to 60°C and up to 85% humidity (non-condensing). It is designed for indoor, conditioned environments such as equipment rooms and IDF closets — not outdoor or high-moisture applications.

Q: What are the physical dimensions and weight of the C6PANELUTP241UFT?

A: The panel measures 19.0 in (L) x 5.4 in (W) x 1.7 in (H) and weighs 22.2 oz.

Marty Allison

The detail I keep coming back to on the C6PANELUTP241UFT is the pre-installed coupler design. On a 24-camera surveillance rack build, skipping punch-down termination at the panel face isn't a minor convenience — it's 30–45 minutes of labor saved per panel, and it eliminates one of the most common sources of wiring faults in structured cabling: mis-seated 110 block connections. That matters when you're commissioning a system and need every port to test clean on the first pass.

Technical Highlights:

• Feed-Through Coupler Design: All 24 ports use pre-installed RJ45 UTP inline couplers — no punch-down tooling required. Reduces field termination time and eliminates a common failure point in dense rack builds.
• 1U / 19-Inch Form Factor: At 1.7 inches tall and 19.0 inches wide, this panel fits any EIA 19-inch rack without consuming space needed for active equipment. In a 12U wall cabinet running a 16-camera NVR system, that's a meaningful constraint.
• Operating Range -10°C to 60°C: Covers conditioned server rooms and light-industrial IDF closets. Storage range down to -40°C means no cold-chain concerns during freight or staged deployment in unheated facilities.

Deployment Considerations:

• Feed-through panels depend on patch cable quality at both faces — use rated Cat6 patch cords consistently to avoid introducing a Cat5e bottleneck at the connection point in Cat6 runs.
• The 85% humidity ceiling (non-condensing) is the hard stop for this panel. Do not install it in warehouse environments with temperature cycling that could cause condensation, even briefly — that will degrade the RJ45 couplers over time.

For a commercial office or school surveillance head-end where a technician needs to wire a 24-camera IP system cleanly and leave the rack in a maintainable state, the C6PANELUTP241UFT is the right tool — fast to deploy, easy to re-patch, and built to stay in place for the length of a typical 3–5 year system lifecycle.
