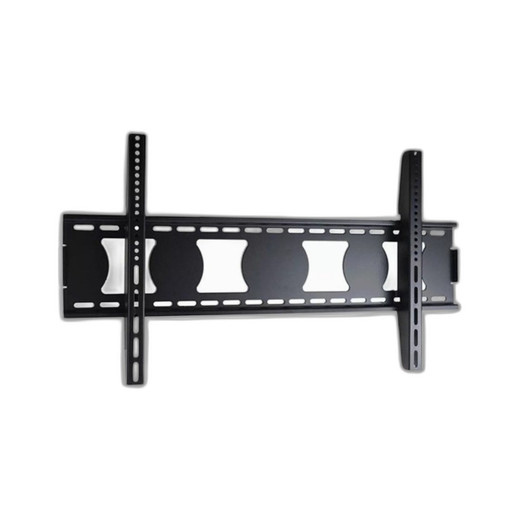

ACTi EPR8A50600-000 Wall Mount Bracket

Overview

The EPR8A50600-000 is a fixed wall mount bracket engineered for ACTi TRUTOUCH interactive flat-panel displays ranging from 43 inches to 86 inches. This is a direct-install solution when you need to mount a large touchscreen display in a control room, command center, or high-traffic collaboration space — the bracket clamps the screen close to the wall with minimal standoff, saving floor space and reducing cable runs.

Weight capacity reaches 300 pounds, accommodating most large-format interactive panels without additional reinforcement. The solid steel wall plate transfers load directly to building framing, eliminating the racking forces that plague cheaper bracket designs on heavier screens.

Compatibility

This bracket is designed for ACTi TRUTOUCH series displays in the following models: 650, 700, 750, 800, 860, X5, and X7. Verify your exact display model against this list before ordering — the VESA pattern and depth clearances are specific to these panels.

Installation Notes

The bracket mounts 2.5 inches from the wall, leaving room for cable egress and power connections behind the panel. Solid mounting requires anchoring to wall studs or a structural backing panel rated for the full 300 lb load — use appropriate fasteners for your substrate (concrete anchors for masonry, lag bolts for wood frame). Verify wall stud location and confirm framing can bear the concentrated load. Do not rely on drywall anchors alone.

The design includes a sliding rail mechanism that allows left-right positioning of the display for sightline adjustment after initial mounting — useful when final placement differs slightly from the rough-in.
