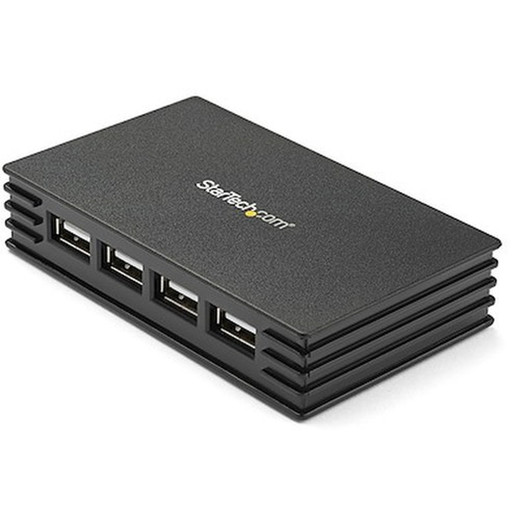

StarTech ST4202USB 4-Port USB 2.0 Hub with AC Power Adapter

Overview

The StarTech ST4202USB is a compact, AC-powered 4-port USB 2.0 hub designed for desktops, laptops, and embedded systems that need reliable peripheral expansion without drawing down host-port power. Built around the Genesys Logic GL850G chipset and rated at 480 Mbps per the USB 2.0 High-Speed specification, it gives you four downstream Type-A ports and a dedicated upstream USB Type-B host connection — a setup that keeps cabling organized and reduces the likelihood of dropped connections caused by power brownouts on bus-powered hubs. For USB accessories deployments where consistent power delivery matters — think barcode readers, IP enrollment readers, or USB-to-serial converters on a workstation — the included AC adapter is the differentiator worth noting.

Key Features

• 480 Mbps USB 2.0 Throughput: The GL850G chipset supports the full USB 2.0 High-Speed transfer rate of 480 Mbps. In practical terms, that covers every USB 2.0 peripheral you're likely to connect — card readers, scanners, signature pads, and serial converters all run well inside that ceiling. You won't see USB 3.0 speeds, so this is not the hub for high-bandwidth storage transfers.
• Four USB 2.0 Type-A Downstream Ports: Four independent downstream ports let you run four simultaneous peripherals without a hub-on-a-hub daisy chain. Each port is a standard Type-A, compatible with the full range of USB 2.0 and USB 1.1 devices. Backwards compatibility with USB 1.1 means legacy peripherals — older input devices, some industrial scanners — connect without an adapter.
• Dedicated USB Type-B Host Port: The upstream connection uses a USB Type-B socket rather than a captive cable. This is a practical advantage at a fixed workstation — if the host cable wears out, you replace a standard USB-A-to-B cable, not the hub itself. It also makes the hub easier to integrate into rack-side or AV-furniture cable management.
• AC-Powered with 5V / 2A Output: The bundled AC adapter delivers 5V DC at 2A (10W total). That's meaningful: bus-powered hubs share the host port's 500mA limit across all downstream ports, which causes drop-outs with power-hungry peripherals. With dedicated AC power, each downstream port gets a full share of the 2A supply — no need to manage device counts to stay under a bus-power ceiling. The adapter accepts 100–240V AC input at 0.35A, so it works anywhere in the world without a voltage converter.
• OS-Independent Operation: The ST4202USB is recognized as a standard USB hub without drivers on any operating system — Windows, Linux, macOS, or embedded OS environments. That matters in industrial or security workstation deployments where driver installation policies are locked down by IT, or where you're running a stripped Linux image with no package manager.
• 75,537-Hour MTBF: The rated mean time between failures of 75,537 hours works out to roughly 8.6 years of continuous operation. For a hub running 24/7 at a security or access-control workstation, that reliability rating supports long service intervals and reduces the likelihood of unplanned peripheral downtime.
• 0°C to 70°C Operating Range: The rated operating temperature range covers standard indoor environments, including equipment rooms, server closets, and workstation areas that may see modest temperature variation. Not rated for outdoor or high-heat enclosures — plan accordingly if the hub will be installed near power-dense equipment.
• Compact Form Factor — 60 x 10 x 2 cm, 71g: At 71 grams and roughly the footprint of a small ruler, the hub sits cleanly on a desk edge or can be Velcro-mounted to a workstation panel without consuming real estate. The low-profile 2 cm height means it fits under most monitor stands or behind mounting arms.

Integration and Compatibility

The ST4202USB integrates into any environment where a host machine exposes a USB Type-A port. OS-independent operation confirmed across Windows, Linux, macOS, and embedded platforms — no driver package required at any OS version. The hub is well-suited for networking and peripheral expansion at security workstations, enrollment kiosks, and IP camera management PCs where multiple USB devices (card readers, USB-to-RS232 adapters, token readers, license dongles) need reliable concurrent connections. The GL850G chipset handles USB protocol compliance at the hub level, so the host controller sees a single upstream device rather than four separate endpoints — this reduces enumeration overhead on hosts with limited USB bandwidth allocation. Pair with a workstation accessory kit for a complete peripheral management setup. For deployments that need higher-speed storage transfers or USB 3.0 devices, evaluate USB 3.0 hub options in the USB hub category — the ST4202USB tops out at USB 2.0 speeds and won't accelerate USB 3.0 devices. For installations running alongside IP cameras and access control readers, see the access control peripheral guide for compatible USB enrollment hardware.

Frequently Asked Questions

Q: Does the ST4202USB require driver installation?

A: No. The hub is OS-independent and recognized natively by Windows, Linux, macOS, and most embedded operating systems as a standard USB hub. No driver package is needed.

Q: Can the ST4202USB power high-draw USB devices like hard drives or card readers?

A: The included AC adapter provides 5V DC at 2A (10W total), which gives each downstream port a meaningful share of dedicated supply current — significantly more than a bus-powered hub's shared 500mA from the host. Most USB 2.0 peripherals will operate reliably; for devices requiring USB 3.0 power levels or higher, check the device's spec sheet against the hub's output.

Q: What is the maximum data transfer rate of the ST4202USB?

A: 480 Mbps, which is the USB 2.0 High-Speed specification maximum. This is shared across all active downstream ports. The hub does not support USB 3.0 or USB 3.1 speeds.

Q: What is the warranty on the ST4202USB?

A: StarTech provides a 2-year manufacturer warranty on the ST4202USB.

Q: Will the included AC adapter work internationally?

A: Yes. The adapter accepts 100–240V AC input at 0.35A, making it compatible with standard power grids worldwide. A local plug adapter may be needed depending on outlet type.

Q: What is the MTBF rating for the ST4202USB?

A: The ST4202USB carries a rated MTBF of 75,537 hours — approximately 8.6 years of continuous operation — providing a useful reliability benchmark for always-on workstation deployments.

Marty Allison

The spec I keep coming back to on the ST4202USB is the AC adapter output: 5V at 2A gives you 10W of dedicated power across four ports. On a bus-powered hub you're splitting a 500mA host allocation — that's how you end up with enrollment readers dropping mid-transaction or license dongles that enumerate inconsistently. The ST4202USB sidesteps that entirely, and for a fixed workstation running multiple USB 2.0 security peripherals simultaneously, that power independence is the whole reason to spec this over a cheaper bus-powered alternative.

Technical Highlights:

• GL850G Chipset: The Genesys Logic GL850G is a mature, widely qualified USB 2.0 hub controller — enumeration behavior is predictable across OS versions, which reduces integration headaches on locked-down enterprise images.
• 75,537-Hour MTBF: Running 24/7, that's better than 8.6 years mean time between failures — a useful number to have when justifying lifecycle cost on a workstation that runs around the clock.
• 480 Mbps USB 2.0: Full High-Speed USB spec — covers card readers, USB-to-serial bridges, signature pads, and token readers without any throughput compromise at the hub layer.

Deployment Considerations:

• The USB Type-B upstream port means the host cable is field-replaceable — important in a workstation environment where cables take daily wear. Stock a spare USB-A-to-B cable on site.
• Operating temperature tops out at 70°C — keep this hub away from enclosed AV racks or equipment closets with poor airflow. It's rated for conditioned workstation environments, not heat-dense enclosures.

This hub fits cleanly at a manned security workstation or enrollment kiosk where you need four reliable USB 2.0 ports running simultaneously — access control readers, a USB camera, a serial converter, and a dongle — without fighting bus-power limits or chasing intermittent disconnects.
