Digital Watchdog DW-VP9V7BUN24 4-Channel NVR and Vandal Dome Camera Bundle
Overview

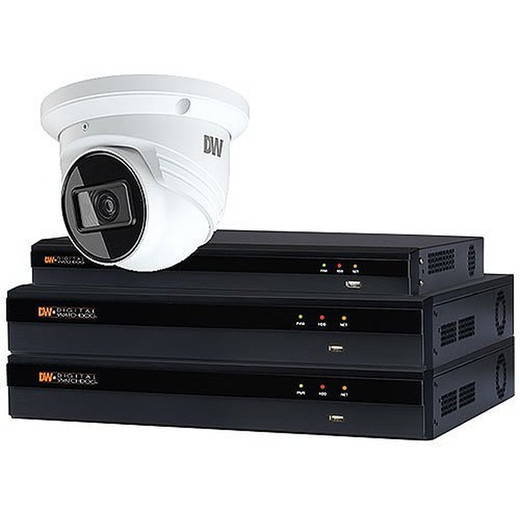

The DW-VP9V7BUN24 is a VMAX IP Plus 4-channel NVR paired with four 2.1MP/1080p ultra low-profile vandal dome cameras, built as a matched system rather than components you have to reconcile yourself. The recorder ships with 2TB of onboard storage and PoE ports for all four cameras, so a single Cat5e/Cat6 run to each dome handles both power and data. If you're speccing a small retail location, office suite, or multi-unit property and want a system where the recorder, camera count, and storage were sized together instead of guessed at separately, DW-VP9V7BUN24 is worth a direct look.
Key Features
- 2TB Onboard Storage: Sized to the included 4-camera channel count, so you're not calculating retention math from scratch or adding a drive before the system even goes live.
- Up to 4 Channels of PoE: Each dome camera draws power and sends video over a single Ethernet run from the NVR's PoE ports — no separate camera power supplies or injectors to mount and wire.
- 80Mbps Maximum Throughput: Headroom for four 2.1MP/1080p streams at 30fps without the recorder choking on bandwidth during simultaneous live view and playback.
- 4K (3840x2160) Output Resolution: The NVR's HDMI/VGA output drives a 4K monitor for a sharper multi-camera live view wall, even though the cameras themselves record at 2.1MP.
- 2.1MP/1080p Camera Resolution at 30fps: Full HD detail at real-time frame rate — enough resolution to identify faces and read signage at typical room and hallway distances without inflating storage needs.
- 2.8mm Fixed Lens: A wide field of view suited to entries, reception areas, and small rooms where you need broad coverage over a single fixed angle rather than a zoomed-in shot.
- IK-10 Impact Resistance: The dome housing is rated to withstand deliberate impact — a real consideration in stairwells, loading areas, or any spot where a camera is within arm's reach of the public.
- Weather Resistant, Vandal Resistant Housing: Lets the same dome camera cover a covered exterior entry or an interior high-traffic corridor without swapping models.
- 61-100 Foot Infrared Range: Usable night vision out to 100 feet, which covers most parking approaches, hallways, and mid-size rooms without relying on ambient lighting.
- ONVIF Conformant: Standards-based integration means the cameras aren't locked to only the bundled NVR — they can be brought into a broader ONVIF-compliant video management system if your deployment grows past this kit.
- Gigabit Network Interface: The NVR's uplink port keeps four simultaneous 1080p streams plus remote viewing traffic from bottlenecking on the network side.
Integration & Compatibility
Because the cameras and recorder are ONVIF conformant, DW-VP9V7BUN24 fits into environments that already standardize on ONVIF for camera onboarding, not just Digital Watchdog's own recording software. That matters if you're building out a site that may eventually mix brands or migrate to a different network video recorder down the line. For sites planning past four cameras, pairing this bundle's cameras with a larger recorder from the broader Digital Watchdog catalog keeps the same 2.1MP dome model in play while scaling channel count. If you're still finalizing camera count and coverage before locking in a bundle like this, a camera selection and coverage guide is worth reviewing first. For sites needing to extend PoE runs beyond standard distance or add ports beyond the NVR's built-in four, a rack-mount PoE switch handles the overflow. And because storage retention is fixed at 2TB out of the box, it's worth checking a storage and retention planning guide against your expected days-of-footage requirement before deployment, particularly if you plan to raise resolution or frame rate later.
Frequently Asked Questions
Q: How many cameras come with the DW-VP9V7BUN24?
A: The bundle includes four 2.1MP/1080p ultra low-profile vandal dome cameras with 2.8mm fixed lenses, plus a 4-channel NVR with 2TB of storage.
Q: Do the cameras need a separate power supply?
A: No. The NVR provides Power over Ethernet to up to 4 channels, so each camera runs on a single Ethernet cable for both power and video.
Q: What's the infrared range on the included dome cameras?
A: 61 to 100 feet, according to manufacturer specifications.
Q: Can the DW-VP9V7BUN24 cameras be used with a different ONVIF-compliant VMS?
A: The cameras are ONVIF conformant, which allows integration with other ONVIF-compliant video management systems beyond the bundled NVR.
Q: Are the dome cameras rated for outdoor or high-impact locations?
A: Yes. They carry an IK-10 impact resistance rating and are described as vandal resistant and weather resistant.
Q: What resolution does the NVR output to a monitor?
A: The NVR supports output resolution up to 4K (3840x2160), independent of the 2.1MP recording resolution of the cameras.
DW-VP9V7BUN24 is one of the cleaner small-site bundles I spec because the math is already done for you — four PoE channels, four cameras, 2TB of storage, no guesswork on whether the recorder can actually feed the cameras.
Technical Highlights:
- 80Mbps Maximum Throughput: Four 2.1MP streams at 30fps fit comfortably inside that ceiling with room for simultaneous playback and remote viewing — I don't see this NVR choke under normal load at this camera count.
- IK-10 Impact Resistance: This is the top impact rating on the IK scale, so these domes hold up in stairwells and public-access corridors where a camera at head height is a target, not just a fixture.
- 61-100 Foot IR Range: Enough throw for a mid-size parking approach or a long interior hallway without ambient light, without needing supplemental IR illuminators.
Deployment Considerations:
- The 2.8mm fixed lens on all four cameras means this bundle is built for wide-angle coverage at moderate distance — if you need a tight shot on a cash register or a far parking row, budget for a separate camera with a longer lens.
- 2TB is fixed capacity out of the box. At four 1080p streams running 24/7, plan your retention expectations against that number before assuming weeks of footage — heavier motion or extended retention needs may call for added storage.
I'd put DW-VP9V7BUN24 in front of a customer running a single-location retail storefront or small office suite who wants four points of coverage on entries and common areas without piecing together a recorder and cameras from separate SKUs.
