Description

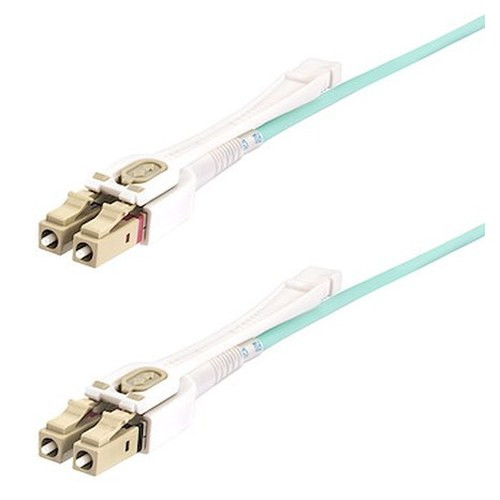

StarTech 450FBLCLC3PP OM4 Multimode Fiber Optic Cable

Overview

The StarTech 450FBLCLC3PP is a 9.8 ft (3 m) OM4 multimode fiber optic patch cable designed for high-speed data transmission in demanding network environments. Featuring LC duplex connectors on both ends and a Low Smoke Zero Halogen (LSZH) jacket, this cable is suitable for deployments where fire safety and data integrity are paramount, such as in data centers, enterprise networks, and surveillance systems requiring 100Gbps connectivity.

Compatibility

This cable is compatible with any network devices utilizing LC duplex connectors and requiring OM4 multimode fiber, including high-performance switches, routers, network interface cards (NICs), and servers. It supports data rates from 1Gbps up to 100Gbps, making it suitable for current and future network upgrades. Its 50/125 micron core and cladding size are standard for OM4 performance.

Installation Notes

The cable features a 2.9 mm outer diameter and a minimum bend radius of 3 cm unloaded and 6 cm loaded, allowing for installation in tight spaces without compromising signal integrity. The operating and storage temperature range is -20°C to 60°C, with humidity tolerance from 0% to 90% RH. The LSZH jacket material minimizes toxic smoke and corrosive halogenated compounds in case of fire, a critical consideration for plenum spaces.

What's in the Box

  • 1x 450FBLCLC3PP Fiber Optic Cable
  • 1x Push-Pull Tab
Specifications
Cable Length: 9.8 ft [3 m]
Fiber Size: 50/125
Cable Jacket Material: Low Smoke Zero Halogen
Fire Rating: LSZH Rated
Fiber Classification: OM4
Maximum Data Transfer Rate: 100Gbps
Cable Rating: 1Gbps / 10Gbps / 40Gbps / 100Gbps
Wavelength: 850nm 1300nm
Connector A: Fiber Optic LC Duplex
Connector B: Fiber Optic LC Duplex
Operating Temperature: -20C to 60C
Storage Temperature: -20C to 60C
Humidity: 0~90% RH
Color: Aqua
Cable OD: 2.9 mm
Product Weight: 21.0 g
Modal Bandwidth: 4700MHz/km (850nm)
Attenuation: 2.4dB/km (850nm), 0.6dB/km (1300nm)
Bend Radius Loaded: 6cm
Bend Radius Unloaded: 3cm
Brand: StarTech
MPN: 450FBLCLC3PP
