Description

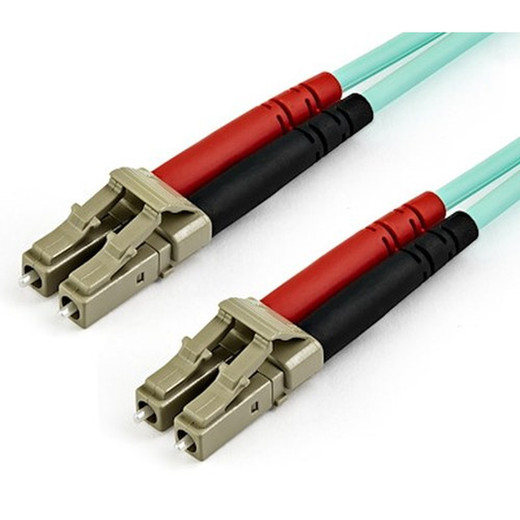

StarTech 450FBLCLC15 15M OM4 Multimode Fiber Cable

Overview

The StarTech 450FBLCLC15 is a 15-meter (49 ft) OM4 multimode fiber optic patch cable designed for high-speed network backbones and data center interconnects. It features LC duplex connectors on both ends, terminated with UPC polish for efficient signal transmission. The aqua-colored, LSZH (Low Smoke Zero Halogen) jacket makes it suitable for environments where fire safety is a concern, such as enterprise networks and security installations. This cable supports full duplex data rates up to 100 Gbps, making it ideal for demanding applications like 10/40/100 Gigabit Ethernet and Fibre Channel.

Compatibility

This 450FBLCLC15 cable is compatible with any network equipment utilizing LC duplex connectors and requiring OM4 multimode fiber. This includes, but is not limited to, 10GbE SFP+ modules, 40GbE QSFP+ modules, and 100GbE QSFP28 modules. It is suitable for use with network switches, routers, servers, and storage devices from major manufacturers that adhere to industry standards for fiber optic connectivity.

Installation Notes

The cable has a minimum static bend radius of 3cm and a dynamic bend radius of 6cm. Avoid exceeding these limits during installation to prevent signal degradation or cable damage. The LSZH jacket is designed for reduced smoke and halogen emission in case of fire. Operating temperature range is -20°C to 60°C.

What's in the Box

  • 1x 15m OM4 LC Duplex to LC Duplex Fiber Optic Cable
Specifications
Cable Length: 15 m (49 ft)
Fiber Type: OM4 Multimode
Connector A: LC Duplex
Connector B: LC Duplex
Connector Polish: UPC
Fiber Size: 50/125m
Jacket Material: LSZH
Maximum Data Rate: 100 Gbps
Supported Data Rates: 1/10/40/100 Gbps
Wavelength: 850nm
Modal Bandwidth: 2000 MHz·km
Operating Temperature: -20C to 60C
Storage Temperature: -20C to 60C
Operating Humidity: 0-90% RH
Cable Diameter: 2.9mm
Bend Radius Static: 3cm
Bend Radius Dynamic: 6cm
Product Weight: 195 g
Product Height: 1.1 cm
Product Width: 1.5 cm
Color: Aqua
Brand: StarTech
MPN: 450FBLCLC15
Type: Optical Transceiver
Connectivity: Ethernet
