Geovision 82-VMS0000-0006 6-Channel VMS Expansion Module
The Geovision 82-VMS0000-0006 is a 6-channel expansion module designed to extend the surveillance capacity of the Geovision 32 CHS video management platform. This accessory allows integrators and end-user security teams to add additional IP camera channels to an existing VMS deployment without replacing the core recording appliance, reducing capex and operational disruption on growing surveillance installations.
Key Features
- 6 Additional IP Camera Channels: Expands the 32 CHS platform to accommodate more cameras. Modular approach allows staged deployment and cost-controlled capacity growth.
- Geovision 32 CHS Compatibility: Designed specifically for the Geovision 32 CHS VMS platform. Ensures plug-and-play integration without firmware or configuration workarounds.
- VMS-IPCAM Cable Standard: Uses standard Geovision VMS-IPCAM connectivity. Simplifies cabling discipline and reduces integration overhead on installations with existing Geovision infrastructure.
- Modular Expansion Design: Supports incremental channel additions as surveillance requirements grow. Allows integrators to right-size upfront investment and scale systems post-deployment.
- Straightforward Installation: Expansion modules integrate into existing 32 CHS deployments without platform reconfiguration. Reduces labor cost on retrofit and expansion projects.
- Mid-Scale Deployment Target: Suited for campus environments, multi-building facilities, and retail chains where phased camera rollouts align with budget cycles.
The 82-VMS0000-0006 is a capacity extender, not a standalone recorder. It requires an active Geovision 32 CHS platform and network connectivity to the VMS appliance. On larger deployments (50+ cameras), stacking multiple expansion modules can introduce network bandwidth constraints — verify switch uplink capacity and camera stream bitrates before committing to high-channel configurations. For sites requiring more than 32 total channels, evaluate whether a larger-capacity VMS platform (such as the Geovision GV-VMS 3.0 or equivalent) offers better total cost of ownership than multiple expansion modules.

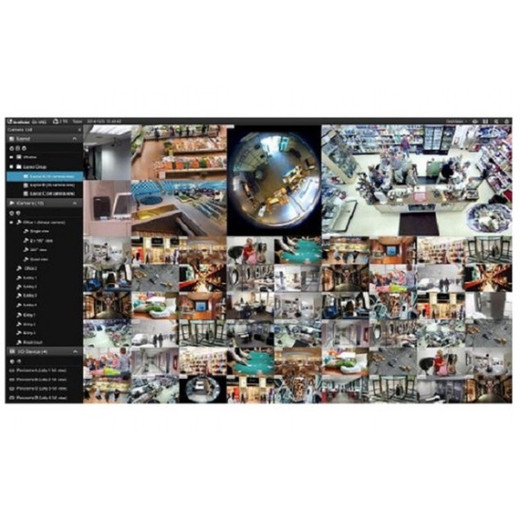

Integration with the 32 CHS platform leverages Geovision's native management interface. Camera addition, recording policies, event rules, and user accounts are administered through the same console as the base system — no separate software or licensing tier required. The module inherits all VMS features available on the parent appliance, including motion detection, alarm event recording, and integrated PTZ control (if supported by connected cameras).
Network connectivity is critical on expansion deployments. The module communicates with the 32 CHS platform over the LAN; therefore, ensure that network switches between cameras and the VMS appliance (and between the expansion module and the core VMS) are sized for aggregate bitrate. Standard 1 Gbps switch infrastructure is adequate for most IP camera deployments, but high-frame-rate or high-resolution camera streams (4K, 60fps) can saturate shared uplinks. Plan cabling discipline and switch port allocation before installation.
The Geovision 32 CHS platform is a mature on-premise VMS widely deployed in education, retail, and SMB environments across North America. The 82-VMS0000-0006 expansion module is the official capacity extension path for this platform. Warranty coverage follows Geovision's standard terms; confirm manufacturer warranty status with your distributor or Geovision directly. No cloud connectivity, AI analytics, or third-party VMS integration (e.g., Genetec, Milestone, Axis Companion) is included — this is a closed Geovision ecosystem solution.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the Geovision 32 CHS platform across a range of mid-market environments — retail chains, school districts, office parks — and the 82-VMS0000-0006 expansion module is the right fit when an existing customer needs to add cameras without scrapping their current recorder. The key differentiator versus migrating to a larger VMS or a cloud-based alternative is operational continuity: the expansion module uses the same console, same user accounts, same recording policies. For IT teams already trained on the 32 CHS interface, adding 6 channels is a 30-minute administrative task, not a platform migration project. That said, the expansion path has limits. We've seen sites try to stack three or four 82-VMS0000-0006 modules (36+ total channels) on a single 32 CHS core appliance, and performance degrades noticeably around 40 channels unless the underlying network is over-provisioned and the cameras are constrained to 2-3 Mbps each. The module is best positioned as a first or second expansion, not as an indefinite scaling solution.
Technical Highlights:
- 6-Channel Granularity: Expansion in 6-camera increments means integrators can match deployment phases to budget availability. A multi-building campus can roll out 6 cameras per quarter without platform replacement overhead.
- Geovision VMS-IPCAM Connectivity: Purpose-built cable type ensures compatibility with Geovision's IP stack. No cross-platform confusion or driver compatibility issues — install and the channels appear in the VMS interface immediately.
- Modular Appliance Approach: Unlike software-based VMS (which scale by adding CPUs/RAM to a single server), Geovision's modular hardware design distributes load across multiple units. The expansion module does not tax the 32 CHS CPU; each module handles its own channel I/O.
- No Licensing Tier Complexity: Channel expansion does not trigger per-channel licensing fees or software subscription upgrades. Cost is purely the hardware module cost — predictable, no hidden recurring expenses.
- Backward Compatibility: Works with existing 32 CHS deployments without firmware updates or platform reconfiguration. Integrators can retrofit older installations without risk of breaking existing functionality.
Deployment Considerations:
- Verify network bandwidth before stacking multiple modules. Each camera stream (especially H.264/H.265 1080p+ content) consumes 4-8 Mbps; 36 cameras on a single gigabit switch can saturate uplinks if the VMS, NVR, or archival storage share the same port. Plan a dedicated VLAN or switch segment for the expansion module.
- The 82-VMS0000-0006 requires a functioning Geovision 32 CHS platform to operate. It is not a standalone recorder or edge appliance. Confirm the parent platform is in service and has remaining CPU/storage capacity before ordering expansion modules.
- Installation footprint: the expansion module typically mounts in a 19-inch rack or wall enclosure adjacent to the 32 CHS core appliance. Verify rack space and power availability (PoE injectors and management uplinks) before site survey.
- Recording capacity planning: expansion modules inherit storage policies from the 32 CHS platform, but do not increase the core appliance's storage pool. If the parent platform has a 2TB HDD, adding 6 new cameras will reduce retention time proportionally. Evaluate storage upgrade requirements alongside channel expansion.
- Support and end-of-life: confirm Geovision support status for the 32 CHS platform. Expansion modules follow the same lifecycle as the core appliance; if the platform approaches end-of-support, prioritize a full platform migration over additional expansion modules.
The Geovision 82-VMS0000-0006 is the right choice for existing 32 CHS customers seeking incremental capacity growth on proven infrastructure. It is not a path into Geovision for new deployments — integrators evaluating VMS from scratch should compare the 32 CHS pricing and feature set directly against Axis Companion, Milestone Husky, and Genetec offerings. For established Geovision shops, this module maximizes the value of existing platform investments and defers larger capital spend. Explore the full Geovision catalog for additional expansion modules and compatible cameras.
