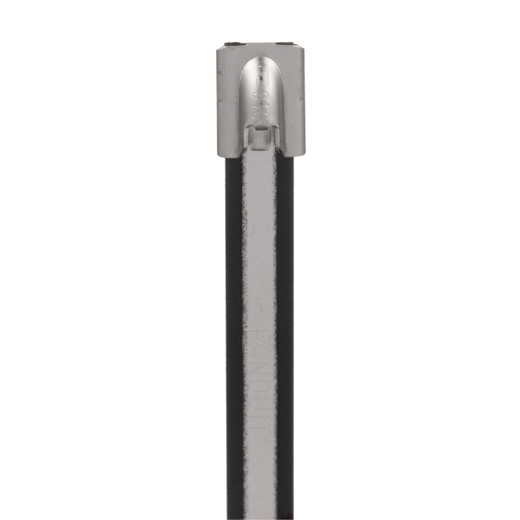

Panduit MLTC4H-LP316 Pan-Steel® Coated Stainless Steel Cable Tie
The Panduit MLTC4H-LP316 Pan-Steel® cable tie combines Type 316 stainless steel corrosion resistance with Nylon 11 edge protection and dielectric isolation—engineered for chemical plants, marine installations, food-grade facilities, and outdoor infrastructure exposed to salt spray or industrial wash-down. The self-locking head engages anywhere along the 14.3-inch body, securing bundles up to 4 inches in diameter without separate locking mechanisms. Halogen-free and low-smoke construction meets fire-safety mandates for enclosed spaces, while the black coating provides UV protection and masks corrosion in aesthetic-sensitive deployments.
Key Features
- Self-locking head design—locks at any point along the tie body for fast, tool-free installation
- Type 316 stainless steel core with Nylon 11 coating—combines corrosion resistance with edge protection and electrical isolation
- 4-inch maximum bundle diameter, 14.3-inch overall length—handles large conduit runs and multi-cable bundles
- UV-resistant, halogen-free, low-smoke Nylon coating—meets fire-safety standards and resists outdoor degradation
- Black finish—hides oxidation and blends with industrial equipment
- UL E56854, CE, and ABS certified—meets North American, European, and marine classification standards
- Compatible with Panduit GS4MT-E, PBTMT, PPTMT, ST2MT, and HTMT installation tools
Type 316 stainless steel's 2–3% molybdenum content dramatically improves pitting and crevice-corrosion resistance in chloride-rich atmospheres—critical in coastal, chemical, or food-processing sites where 304 stainless fails within months. The Nylon 11 coating prevents galvanic corrosion when the tie contacts dissimilar metals (aluminum conduit, copper busbars, galvanized tray), cushions sharp edges that would abrade cable jackets during thermal cycles, and provides 600 V dielectric isolation to prevent ground loops in mixed-voltage bundles. The coating is selectively applied to leave the locking mechanism exposed, preserving mechanical engagement that delivers 250 lbf minimum tensile strength. Halogen-free formulation eliminates corrosive hydrogen-chloride emissions during fire—required in data centers, broadcast facilities, and pharmaceutical clean rooms.
Specify this tie for outdoor-rated, corrosion-proof bundling in solar combiner boxes, wastewater lift-station panels, marine navigation towers, or petrochemical analyzer enclosures. Food and beverage integrators deploy Pan-Steel ties in CIP wash-down zones where caustic spray destroys nylon-only ties within weeks. Pharma installers use them in autoclaved process skids where stainless is the only validated material. The 4-inch bundle capacity handles trunk runs of 4/0 power feeders, fiber-optic breakouts, or instrumentation homerun bundles. The 50-piece count is project-scaled for panel builds and cable-tray sections—order by carton (250 ties) when outfitting a new facility.
UL E56854 file number confirms 20,000-hour salt-fog and accelerated-aging tests; CE marking allows EU machinery deployment without additional certification; ABS approval makes this compliant for offshore platforms and vessels where DNV-GL or Lloyd's specifications cross-reference ABS materials. Use with Panduit's GS4MT-E pneumatic tool for consistent 100 lbf tension across thousands of ties in a shift, or hand-install with PBTMT ratcheting tensioners in confined spaces. The black Nylon 11 finish resists 2,000 hours of QUV-A exposure per ASTM G154 without chalking or embrittlement, ensuring mechanical integrity through decades of outdoor service—critical for solar farms and telecom towers where replacement access costs more than the hardware.
