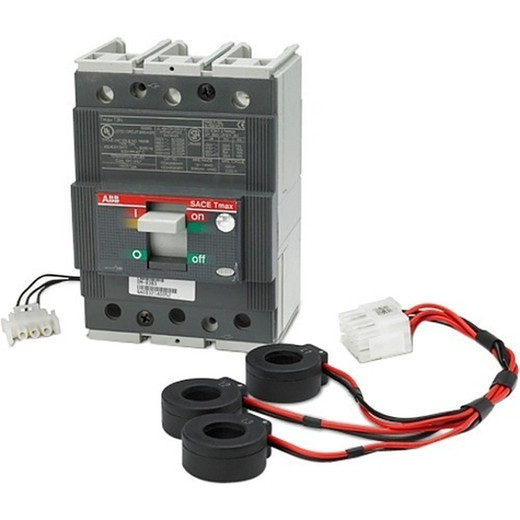

APC by Schneider Electric 3-POLE Circuit Breaker 225A T3 Type for Symmetra PX250/500KW - PD3P225AT3B
APC by Schneider Electric 3-POLE Circuit Breaker 225A T3 Type for Symmetra PX250/500KW - PD3P225AT3B
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric PD3P225AT3B 3-POLE Circuit Breaker

Overview

The APC by Schneider Electric PD3P225AT3B is a 225A, 3-pole circuit breaker designed for front mounting within APC Symmetra PX 250/500KW uninterruptible power supply systems. It provides essential overcurrent protection for a single zone, ensuring the integrity of critical power infrastructure. This breaker is a direct replacement for existing units or a component for system expansion where precise circuit segmentation is required.

Compatibility

This PD3P225AT3B circuit breaker is specifically engineered for use with the APC Symmetra PX 250KW and Symmetra PX 500KW power modules. Its 3-wire (3P) hardwire configuration is intended for a single output zone within these UPS systems.

Installation Notes

The unit requires front mounting and is not rack-mountable. It supports input frequencies of 50 Hz and 60 Hz, with main input and output voltages rated for 400V or 480V 3-phase systems. Ensure proper torque is applied during hardwiring to meet installation standards and ensure reliable operation.

What's in the Box

  • 1x Installation guide
Expert Analysis
Specifications
Main Input Voltage: 480 V 3 phase 400 V 3 phase
Main Output Voltage: 480 V 3 phase 400 V 3 phase
Output Connector Type: Hard Wire 3-wire (3P) for 1 zone(s)
Provided Equipment: Installation guide
Dimensions: 17.008 in (43.2 cm)
Weight: 6.11 lb(US) (2.77 kg)
Mounting Location: Front
Mounting Preference: No preference
Mounting Mode: Not rack-mountable
Max Line Current: 225 A
Input Frequency: 50 Hz 60 Hz
Product Certifications: CE UL Listed
Ambient Air Temperature For Storage: 5…104 °F (-15…40 °C)
Unit Type Of Package 1: PCE
Nbr. Of Units In Pkg: 1
Package 1 Height: 17.008 in (43.2 cm)
Package 1 Width: 21.5 in (54.6 cm)
Package 1 Length: 22.008 in (55.9 cm)
Package Weight(Lbs: 8.2 lb(US) (3.7 kg)
Q&A
Reviews
Product Video

APC by Schneider Electric 3-POLE 225A T3 - PD3P225AT3B

$1,275.00
$822.99
Add to Cart
