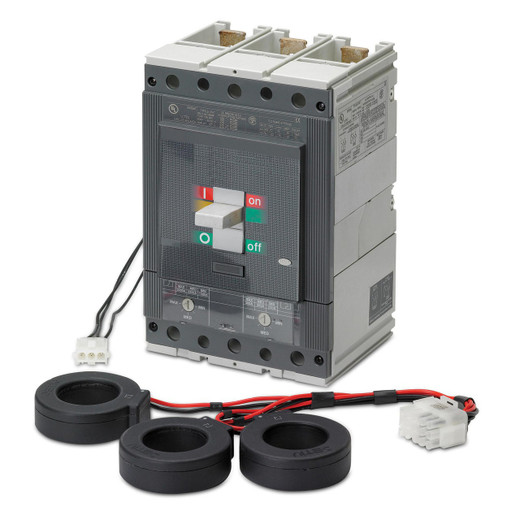

APC by Schneider Electric 3-POLE Circuit Breaker 400A T5 Type for Symmetra PX250
APC by Schneider Electric 3-POLE Circuit Breaker 400A T5 Type for Symmetra PX250
APC by Schneider Electric 3-POLE Circuit Breaker 400A T5 Type for Symmetra PX250/500KW - PD3P400AT5B
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric PD3P400AT5B 3-POLE Circuit Breaker 400A T5 Type

Overview

The APC by Schneider Electric PD3P400AT5B is a 400A, 3-pole circuit breaker designed for front mounting, specifically for use within APC Symmetra PX 250/500KW power systems. It provides essential overcurrent protection and isolation for critical power infrastructure, ensuring system stability and safety. This breaker is rated for 480V or 400V 3-phase input and output, supporting a 50/60 Hz input frequency. Its hardwire connection method ensures a secure and permanent electrical link for a single zone.

Compatibility

This circuit breaker is engineered for direct integration with the APC Symmetra PX 250KW and Symmetra PX 500KW power array systems. It is specifically designed for the T5 type breaker slot, ensuring a precise fit and function within these high-availability power solutions.

Installation Notes

The PD3P400AT5B is designed for front mounting. It requires a hardwire connection for its 3-wire configuration. The ambient storage temperature range is -15°C to 40°C (5°F to 104°F). Ensure proper electrical safety procedures are followed during installation, as this is a high-current device.

What's in the Box

  • 1x APC by Schneider Electric PD3P400AT5B Circuit Breaker
  • 1x Installation guide
Expert Analysis
Specifications
Main Input Voltage: 480 V 3 phase 400 V 3 phase
Main Output Voltage: 480 V 3 phase 400 V 3 phase
Output Connector Type: Hard Wire 3-wire (3P) for 1 zone(s)
Provided Equipment: Installation guide
Dimensions: 17.008 in (43.2 cm)
Weight: 15.04 lb(US) (6.82 kg)
Mounting Location: Front
Mounting Preference: No preference
Mounting Mode: Not rack-mountable
Max Line Current: 400 A
Input Frequency: 50/60 Hz
Product Certifications: CE UL Listed
Ambient Air Temperature For Storage: 5…104 °F (-15…40 °C)
Unit Type Of Package 1: PCE
Nbr. Of Units In Pkg: 1
Package 1 Height: 17.008 in (43.2 cm)
Package 1 Width: 21.5 in (54.6 cm)
Package 1 Length: 22.008 in (55.9 cm)
Package Weight(Lbs: 17.2 lb(US) (7.8 kg)
Q&A
Reviews
Product Video

APC by Schneider Electric 3-Pole 400A Breaker - PD3P400AT5B

$3,070.00
$1,990.99
Add to Cart
