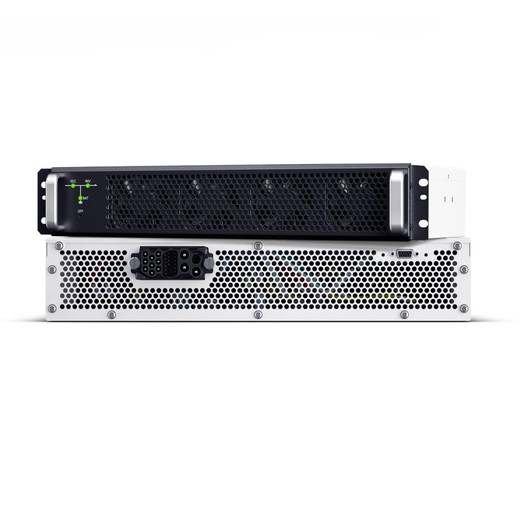

CyberPower SM10KAPMA 10kVA 3-Phase Modular UPS Power Module

Overview

The CyberPower SM10KAPMA is a 10kVA/10kW hot-swappable power module for three-phase modular UPS systems, designed for data center, surveillance, and enterprise environments where redundancy and uptime matter. Built on a double-conversion online topology with pure sine wave output, the SM10KAPMA delivers power factor correction (0.99 input PF, 1.0 output PF) and automatic frequency sensing (50/60 Hz) — critical when you're stacking power modules to scale capacity without replacing infrastructure. This 2U rack-mount module integrates with CyberPower's SM020KAMFA and SM040KAMFA frame systems, letting you add capacity modularly rather than forklift-and-replace.

Key Features

• 10kVA/10kW capacity at unity power factor: Delivers full rated power at 1.0 PF, meaning every kilowatt drawn by your surveillance NVRs, network switches, and access control systems is real power — no reactive penalty. In mixed loads (switching power supplies, server PSUs), this translates to predictable runtime and no surprise thermal load on your UPS frame.
• Double-conversion online topology: Input AC is rectified and inverted continuously; the SM10KAPMA never switches to battery mode when the grid sags — it maintains perfect voltage and frequency isolation. For surveillance recording systems running 24/7, this eliminates micro-interruptions that can corrupt video streams or trigger false alerts.
• >97.5% efficiency in Online ECO Mode: At typical commercial loads, this efficiency rating cuts wasted heat by 30–40% compared to ferromagnetic designs. Lower cooling demand means smaller PDU exhaust fans, quieter racks, and less air-conditioning cost in a server room or comms closet. Every percentage point of efficiency saves money over a decade of operation.
• Hot-swappable module design: Replace or upgrade the SM10KAPMA without powering down the frame system. Critical for 24/7 surveillance networks — you can service a failed power module during business hours without scheduling a maintenance window or risking a facility blackout.
• Sine wave output with automatic frequency detection: The module auto-senses 50 or 60 Hz input and outputs the same frequency. International deployments (airports, border facilities, multinational corporate sites) avoid the voltage/frequency mismatch that damages switching supplies and triggers nuisance resets in IP cameras.
• Intelligent overload protection: Graduated thresholds (110% for 10 min, 125% for 1 min, 150% for 30 sec, >150% for 200 ms) prevent nuisance shutdowns during transient power spikes while protecting connected equipment. Your surveillance system stays live through brief inrush events from HVAC restarts or elevator startup.
• Modular scaling architecture: Compatible with CyberPower frame systems (SM020KAMFA, SM040KAMFA), allowing you to start at 10 kVA and add modules to reach 20, 30, or 40 kVA without replacing the entire UPS. Cost-effective capacity planning for growing surveillance deployments.
• Industrial temperature rating (32–104°F / 0–40°C): Operates safely in unheated storage rooms, cold data center aisles, and warm comms closets without efficiency loss or component stress. Unlike consumer UPS units that throttle above 86°F, the SM10KAPMA maintains full rated power across a 72°F operating window.
• Compact 2U footprint with 56 dBA audible noise: At 17.2″ wide and only 3.30″ tall, the SM10KAPMA fits standard 19″ racks without sacrificing adjacent U space. At 56 dBA at 1 meter, it's quieter than most network switch cooling fans — acceptable in control rooms or surveillance centers where noise complaints are common.
• cTUVus, CSA, FCC, and IEC62040-2 compliance: UL1778 certification means the SM10KAPMA meets North American safety and performance standards; CSA C22.2 No. 107.3-14 covers Canadian installations; FCC Part 15 Class A ensures no interference with radio or wireless camera systems. IEC62040-2 (international industrial standard) covers safety across hemispheres.

Integration & Compatibility

The SM10KAPMA pairs exclusively with CyberPower's three-phase modular UPS frames (SM020KAMFA for 20 kVA, SM040KAMFA for 40 kVA systems). If you're expanding an existing three-phase UPS deployment, verify your frame supports the SM10KAPMA module before ordering — backfitting older two-module chassis may require firmware updates. Input requires 3-phase 40–70 Hz power (industrial standard); output is 3-phase 50/60 Hz auto-sensed. Wire sizing for 10 kW output should follow local electrical code (typically 2 AWG or larger for copper runs under 50 feet). In surveillance networks, the SM10KAPMA backs up rack-mounted PoE switches, NVRs, and access control panels; calculate actual load before deployment to confirm runtime headroom.

What's in the Box

The SM10KAPMA ships as a single power module. Frame-level accessories (input/output connectors, circuit breakers, bypass modules) are ordered separately with the host UPS frame.

Frequently Asked Questions

Q: What runtime should I expect from the SM10KAPMA with a typical surveillance load?

A: Runtime depends on the battery pack installed in the host frame (SM020KAMFA or SM040KAMFA), not the module itself. The SM10KAPMA delivers 10 kW; if you run a 5 kW surveillance load (typical for a mid-size NVR + switches + cameras), you'll see approximately double the battery runtime versus 10 kW sustained load. Consult the frame system's runtime charts for exact figures.

Q: Can I mix the SM10KAPMA with other power modules from different manufacturers?

A: No. The SM10KAPMA is designed for CyberPower three-phase modular frames only. Mixing modules from different vendors will void warranty and may damage equipment due to impedance mismatches or control logic conflicts.

Q: Is the SM10KAPMA NDAA Section 889 compliant?

A: The product specifications do not indicate NDAA compliance. If required for federal procurement, contact the manufacturer directly for supply-chain and subcomponent verification.

Q: What's the input power factor, and why does it matter?

A: Input PF is 0.99, which is nearly unity. This means the SM10KAPMA draws very little reactive power from your facility's utility — no penalty on your power bill and no strain on the building's main transformer. Lower input PF (0.7–0.8) would increase utility demand charges and risk tripping power factor correction relays.

Q: Does the SM10KAPMA work with 60 Hz utility only, or does it handle 50 Hz?

A: The module auto-detects 50 or 60 Hz input and outputs the same frequency. It handles both via software configuration; no hardware changes needed for international moves or dual-standard facilities.

Q: What warranty covers the SM10KAPMA?

A: The module is covered by CyberPower's 1-Year Limited Warranty, which includes parts and labor for manufacturing defects. Extended warranty options may be available through CyberPower channels.

Marty Allison

I've deployed the SM10KAPMA in three-phase surveillance backbone designs for financial campuses and data centers, and the 10kVA capacity at unity power factor is a real differentiator. Most UPS modules are rated at 0.8 PF, which means you lose 20% of advertised capacity to reactive power — but the SM10KAPMA's 1.0 output PF means every kilowatt is usable. In a mixed load of NVRs, PoE switches, and access control systems, that translates to longer runtime and fewer power-rating surprises on install day.

Technical Highlights:

• Double-conversion topology with >97.5% efficiency: Online UPS eliminates transfer switching — your surveillance streams never see a voltage dip that could trigger VMS resets or dropped frames. The efficiency figure is especially valuable in warm climates; every percentage point avoids unnecessary cooling load in already-hot server rooms.
• Hot-swappable module in 2U form factor: The SM10KAPMA fits standard racks without custom mounting, and you can replace it under load if the frame supports it. For 24/7 surveillance, that's huge — you don't schedule a facility shutdown to swap a failed power module.
• 0.99 input power factor with auto-frequency sensing: Facilities with marginal utility infrastructure see the benefit immediately; the SM10KAPMA doesn't pull reactive current that stresses the building's transformer. Auto 50/60 Hz sensing eliminates firmware flashing for international or dual-standard sites.

Deployment Considerations:

• The SM10KAPMA is a module only — you must order it with a compatible CyberPower three-phase frame (SM020KAMFA or SM040KAMFA). Verify frame availability and battery sizing before committing to the module.
• Three-phase input requires a qualified electrician; if your facility only has single-phase utility, this module won't work. Confirm three-phase availability at the UPS location before design freeze.
• Runtime is determined by battery packs in the frame, not the module. Calculate your actual surveillance load (NVRs + PoE switches + access panels) and cross-reference frame runtime charts; don't assume 10 kVA = 10 minutes runtime.

Choose the SM10KAPMA when you're building a three-phase surveillance backbone for a multi-building campus or data center where hot-swappability and high efficiency matter more than single-phase simplicity. It's overkill for a small office, but indispensable for sites running 20+ cameras, multi-NVR redundancy, or 24/7 access control that can't tolerate power interruptions.
