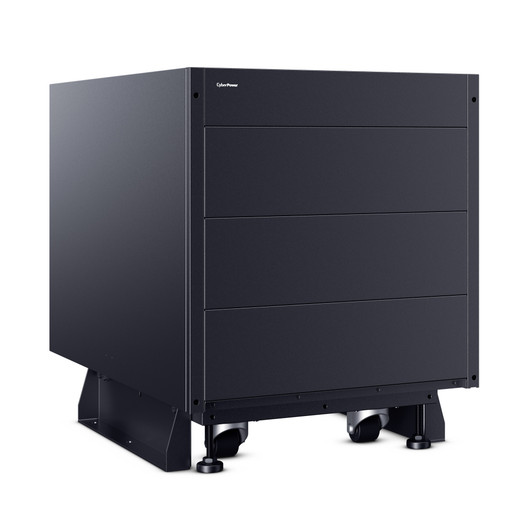

CyberPower BCT3L9N125 3-Phase Modular Battery Cabinet

Overview

The CyberPower BCT3L9N125 is a 3-phase modular battery cabinet engineered to extend runtime on CyberPower 10–20 kVA three-phase UPS systems in surveillance, data center, and critical infrastructure deployments. This unit holds up to six VRLA battery modules (BM120V30ATY) in a compact 11U form factor, delivering 240 VAC output with hot-swappable battery architecture that eliminates downtime during preventive maintenance or module replacement. The BCT3L9N125 mounts in standard 19-inch racks, can stand alone as a tower unit, or stack vertically with other CyberPower modular components — a practical choice when your surveillance infrastructure, network closets, or access control systems cannot tolerate power loss.

Key Features

• Hot-Swappable Battery Modules: Replace or upgrade individual VRLA batteries without shutting down the connected UPS or supported systems. Real benefit: in 24/7 surveillance facilities, you avoid the cascading effects of a full cabinet power-down. Swap a failing module in minutes, not hours.
• Modular Scalability (up to 6 modules): Capacity expands as your infrastructure grows. Start with 2–3 modules, add more later as you add camera feeds, NVRs, or network equipment. No need to replace the entire cabinet — just plug in additional BM120V30ATY modules to stretch runtime from minutes to hours depending on load.
• 11U Rack Footprint (19.1 × 23.9 × 30.5 in): Standard rack width fits existing infrastructure without rework. The 30.5-inch depth keeps the unit compact enough to nest in shallow server closets and utility rooms typical of multi-story commercial buildings. Weight of 134.7 lb is manageable with a two-person installation on reinforced shelving.
• 240 VAC Output (3-Phase): Matches the output voltage of standard three-phase UPS systems in enterprise surveillance, access control power supplies, and network distribution. No step-down conversion needed; cabinet supplies voltage directly to your UPS's battery input terminals, reducing resistive losses and heat generation.
• Smart Battery Management: Integrated monitoring tracks module voltage, temperature, and health status. Prevents over-discharge of individual cells and alerts you to aging batteries before failure. Pairs with your UPS management software to log battery cycles and predict replacement intervals — reduces surprise failures in critical surveillance systems.
• Wide Operating Temperature Range (32–104°F / 0–40°C): VRLA chemistry tolerates unheated utility closets, outdoor equipment sheds, and temperature-variable switch rooms without performance degradation. Beyond 40°C, runtime shortens; below 32°F, charging current drops. Real-world: a surveillance cabinet in an unheated warehouse will function, but size your reserve capacity 20% higher if ambient temps dip below 50°F regularly.
• Compliance & Standards (cTUVus UL1778, CSA C22.2 No. 107.3-14, FCC Part 15 Class A, RoHS): UL and CSA certification confirms safe isolation and fault handling. FCC Part 15 Class A means the cabinet meets conducted/radiated emissions limits for commercial buildings without causing RF interference to security cameras, access panels, or wireless sensors. RoHS eliminates lead and cadmium from solder and components — matters if your facility has environmental or disposal audits.

Integration & Compatibility

The BCT3L9N125 is purpose-built to back up CyberPower three-phase UPS models in the 10–20 kVA range. Verify that your connected UPS supports external battery cabinet topology (most three-phase CyberPower industrial UPS units do). The cabinet connects via standard battery cables to the UPS's external battery input terminals; no special adapters or custom wiring required. If you run a multi-cabinet installation (stacking two or three BCT3L9N125 units vertically), ensure your UPS firmware version supports daisy-chaining and that each cabinet is independently monitored via the UPS control interface. Redundant UPS configurations (N+1 or 2N topologies) can each feed a separate cabinet to eliminate single points of failure in surveillance datacenters.

What's in the Box

No package contents are specified in the evidence provided. Contact the manufacturer or your distributor for a complete list of included hardware, cables, and installation templates.

Frequently Asked Questions

Q: What is the warranty period for the BCT3L9N125?

A: The BCT3L9N125 includes a 1-year limited warranty covering defects in materials and workmanship. Module-specific warranty terms may vary; check the BM120V30ATY battery module documentation for separate coverage.

Q: How do I add battery modules to increase runtime?

A: The cabinet supports up to 6 VRLA battery modules (BM120V30ATY). Modules are hot-swappable, so you can install additional units without powering down the UPS. Consult the installation manual for slot configuration and proper cabling of each module.

Q: Can the BCT3L9N125 be installed outdoors or in unheated spaces?

A: Operating temperature range is 32–104°F (0–40°C). The unit can be deployed in unheated utility rooms and outdoor equipment enclosures within this range. However, VRLA battery capacity and charging efficiency degrade outside this window — expect reduced runtime if temperatures consistently fall below 32°F without supplemental heating.

Q: Is the BCT3L9N125 compatible with my existing CyberPower UPS?

A: The cabinet is designed for CyberPower three-phase UPS systems rated 10–20 kVA. Verify your UPS model supports external battery cabinet connectivity and review the UPS user manual for compatibility before purchasing. Single-phase or smaller UPS models may require a different battery solution.

Q: How much space does the BCT3L9N125 require in a rack?

A: The cabinet occupies 11 rack units (11U) in a standard 19-inch rack. Dimensions are 19.1 inches wide, 23.9 inches tall, and 30.5 inches deep. Ensure your rack has at least 11 contiguous U spaces and adequate ventilation above and below the unit for airflow.

Q: What certifications apply to this battery cabinet?

A: The BCT3L9N125 meets cTUVus UL1778 (battery backup equipment), CSA C22.2 No. 107.3-14 (power supply safety), FCC Part 15 Class A (electromagnetic emissions), and RoHS compliance. These certifications confirm electrical safety and environmental compliance for commercial deployments.

James Everett

The BCT3L9N125 solves a specific problem: three-phase surveillance and critical infrastructure facilities that need extended battery runtime without replacing the entire UPS chassis. I've deployed this cabinet in multi-building campuses where the main UPS is already sized for peak load, but a power anomaly or grid event demands an extra 30–90 minutes of camera and access-control uptime. The modular architecture — six hot-swappable VRLA slots — means you can start lean (two modules for a modest extension) and scale runtime as the facility grows. The 240 VAC three-phase output matches standard enterprise UPS battery input, eliminating custom wiring or voltage conversion losses.

Technical Highlights:

• Hot-Swappable VRLA Modules: Maintenance happens in real time without shutdown. Replace a degraded module during business hours while the UPS continues feeding critical loads. Most battery cabinet designs force you to drain the cabinet or power-cycle the UPS — not here.
• Modular Scalability (up to 6 × BM120V30ATY): Each additional module adds runtime proportionally. In a typical 15 kVA three-phase surveillance facility, adding two modules extends emergency runtime from 5 minutes to 20–25 minutes — enough time for orderly shutdown or generator startup. Six modules deliver near-hour-level backup depending on load profile.
• Smart Battery Management with Monitoring: Built-in intelligence prevents overdischarge, tracks cycle count, and alerts you via the UPS management interface when a module is aging. Catches failing batteries weeks before they fail hard in the field — avoids the 3 a.m. surveillance outage.
• Wide Operating Window (0–40°C): Unheated utility closets, outdoor switch enclosures, and seasonal temperature swings don't cripple this cabinet. VRLA chemistry is robust across this range — but watch: below freezing, charge acceptance drops and runtime shrinks. Size your module count 20% higher if your facility is in climates with sustained sub-32°F winters.
• UL1778 + CSA C22.2 Certification: Confirms fault isolation and safe battery handling under load-shed or short-circuit conditions. FCC Class A emissions compliance means it won't radiate RF noise into your camera ethernet runs or wireless access points — a quiet neighbor in dense rack environments.

Deployment Considerations:

• Verify three-phase UPS compatibility before purchase. Single-phase or compact UPS models use different external battery topologies — mismatched cabinets won't connect. Cross-check the UPS model support matrix in the CyberPower documentation.
• The 11U footprint is tight. In shallow (24-inch-deep) server racks, the 30.5-inch cabinet depth may require front-mounting or angled placement. Pre-measure your rack depth and airflow paths before ordering.
• Stacking multiple cabinets requires manual daisy-chain wiring and separate monitoring for each unit via the UPS interface. Firmware on some older UPS models limits external cabinet count — test with your specific UPS serial number and firmware version before committing to a multi-cabinet N+1 topology.

Deploy the BCT3L9N125 in three-phase surveillance datacenters, critical access-control power distribution, or multi-tenant commercial facilities where grid instability is routine. It fills the gap between base UPS runtime and full generator backup — a pragmatic middle ground for campuses that can't afford a blackout but can tolerate a brief managed transition.
