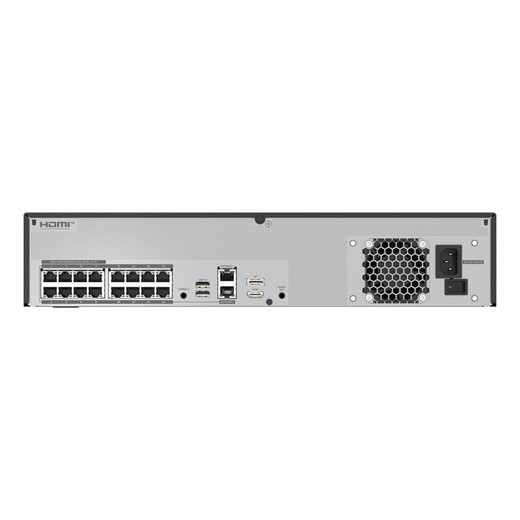

Hanwha WRN-1632S 32-Channel 2U PoE+ NVR

Hanwha WRN-1632S 32-Channel 2U PoE+ NVR with Wisenet WAVE

The Hanwha WRN-1632S is a professional-grade 2U network video recorder engineered for mid-to-large enterprise surveillance deployments. This Intel-based NVR combines 32-channel capacity, integrated PoE+ power delivery, and native Wisenet WAVE software compatibility to streamline multi-camera system installation and management. With 250 Mbps sustained recording throughput and configurable high-capacity storage up to 40TB, the WRN-1632S is designed for organizations requiring reliable edge recording, local redundancy, and efficient network bandwidth utilization.

Key Features

• 32-Channel Support with Integrated PoE Power: Supports up to 32 camera channels with 16 dedicated PoE/PoE+ ports (802.3at) and a 200W total PoE budget, eliminating the need for external injectors in moderate deployments.
• High-Capacity Storage Architecture: Ships with 10TB storage; supports up to four internal SATA HDD slots with drives up to 10TB each for maximum 40TB internal capacity and extended retention periods.
• Multi-Codec Compression: H.265, H.264, and MJPEG support enables flexible bandwidth optimization and seamless integration with legacy camera systems.
• 250 Mbps Recording Throughput: Handles simultaneous high-resolution streams from multiple cameras without frame degradation or bottlenecks.
• Dual Gigabit Network Interfaces: Two 1 Gbps Ethernet WAN ports (separate from PoE ports) provide redundant connectivity and load-balancing capabilities.
• AI Metadata Analytics: Integrated AI-driven metadata extraction for enhanced event detection and forensic search capabilities.
• Audio Support: Audio output capability for integrated alarm notification and two-way communication scenarios.
• Wisenet WAVE Pre-Installed: Native VMS platform pre-loaded for unified camera and device management across enterprise deployments.

Technical Specifications

• Form Factor: 2U rack-mount design for efficient data center integration
• Video Compression: H.265 primary with H.264 and MJPEG fallback
• Power Supply: 200W PoE+ budget with external redundant PSU support
• Operating Temperature: 0°C to +40°C (32°F to 104°F)
• Storage Options: Internal SATA HDD + microSD card support for flexible backup

Ideal Applications

• Enterprise office and corporate campus surveillance
• Retail and shopping center multi-zone monitoring
• Data center and critical infrastructure protection
• Educational institution security systems
• Healthcare facility surveillance and compliance recording

Ted Perry

The WRN-1632S addresses a critical gap in mid-market NVR deployments: integrated PoE power delivery at scale. The 200W PoE budget supports up to 16 cameras in typical scenarios, significantly reducing installation complexity and cabling overhead compared to systems requiring external injectors. H.265 compression is essential for organizations managing high-resolution (4MP+) multi-camera streams, as it typically achieves 30-50% bandwidth reduction over H.264 while maintaining image fidelity.

The dual 1 Gbps WAN ports provide redundancy rather than aggregation—critical for surveillance systems requiring high uptime. Administrators should plan network segmentation between PoE ports and WAN connectivity to prevent saturation. Wisenet WAVE integration streamlines deployment in Hanwha-standardized environments but may require third-party VMS integration for heterogeneous camera fleets. Storage scalability to 40TB enables retention periods of 14-30 days for typical multi-camera deployments at H.265 compression, though actual retention depends on resolution and frame rate.
