Overview
Keypad + RFID/NFC terminal with wired Ethernet for secure facility access
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
Overview
Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

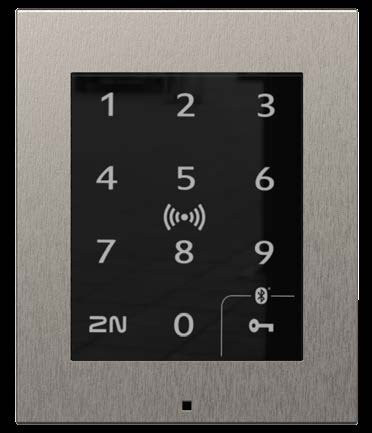

The 2N 02776-001 is a multi-credential access reader combining capacitive touch keypad, dual-frequency RFID (125kHz and 13.56MHz), and Bluetooth 5.0 LE in a single wall-mounted terminal. It draws power via PoE (802.3af, max 12.95W) or optional 12V/1A DC, eliminating the need for a separate controller — authentication logic is built in. Designed for facility integrators deploying access control without distributed panel infrastructure, the 02776-001 fits residential entry points, secure office vestibules, and warehouse gatehouse scenarios where a compact, multi-auth reader reduces installation complexity.
The 02776-001 integrates with standard access control backends via Ethernet (10/100BASE-TX with RJ-45, Auto-MDIX). It supports DHCP, HTTP/HTTPS, TFTP firmware provisioning, and Syslog event logging, making it compatible with enterprise access management platforms that accept ONVIF-adjacent protocols or custom TCP/IP credential hooks. Supports legacy 125kHz Prox/HID cards alongside modern 13.56MHz NFC and Bluetooth 5.0 credential workflows — useful for phased migrations where old and new card stock coexist. Passive and active switch outputs (8–12V DC max 600mA relay, plus NO/NC contacts for 30V/1A AC or DC) connect to electronic locks, door strikes, or third-party control interfaces. Two input terminals accept door-sensor feedback (passive/active mode, ±30V DC range) for status reporting back to a central system.
IP54 rating handles light splashing and dust — suitable for covered outdoor vestibules and damp facility entries, but not direct rain or submersion. Mount flush in a wall cutout (template provided) or surface-mount on glass or standard wall. PoE power (802.3af Class 0–12.95W) requires a compliant switch or injector; 12V DC is optional redundancy for non-PoE sites. Recommended cabling is Cat-5e or better. Touch keypad uses capacitive sensing with automatic calibration (SmartSense auto-tuning); configurable backlight intensity aids low-light credential entry. Acoustic feedback on each key press is configurable. No pilot or indicator light details are specified in the datasheet.
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
2N
SKU: 01852-001
2N
SKU: 01850-001
2N
SKU: 01851-001
2N
SKU: 02262-001
IP network touch keypad for 2N AU 2.0 access control systems
Axis
SKU: 02912-001
Dual-credential RFID/NFC keypad with direct IP network integration
