2N IP Solo Wedge Mounting Backplate - 02077-001

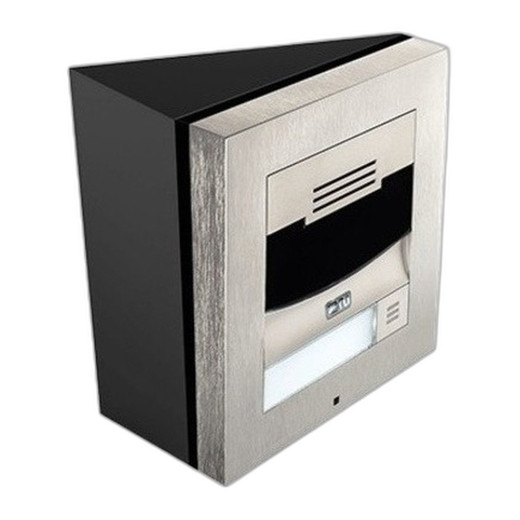

2N 02077-001 IP SOLO Wedge Mounting Backplate

The 02077-001 is a fixed-angle mounting accessory engineered to solve a specific integration problem: positioning a 2N IP SOLO intercom at a functional downward or upward tilt without field fabrication, custom brackets, or site-specific workarounds. This backplate is purpose-built for building envelope installations where vertical mounting produces poor camera framing or weak audio throw.

Key Features

• Fixed 25% gradient wedge angle (approximately 14°): Delivers consistent tilt geometry without adjustment knobs or field assembly—meaning faster installation and no risk of the angle drifting after commissioning. The 14° tilt is steep enough to optimize downward camera coverage at vestibule entry points but shallow enough to avoid extreme mounting conflicts. This is a one-angle solution; if your site requires variable adjustment or a steeper pitch, you'll need an articulated arm mount instead.
• Wall and surface mounting compatible: The backplate integrates with standard wall penetration points using conventional anchors (concrete anchors, lag bolts, stud fasteners). No proprietary hardware required. Supports both exterior and interior access control deployments, accommodating recessed installations where the intercom sits flush into a wall opening or projects forward onto a surface.
• Precision dimensional match to IP SOLO: The backplate is toleranced specifically for 2N IP SOLO hardware geometry—no gaps, no wobble, no secondary adapters. This tight fitment maintains the professional appearance expected in enterprise security installations and prevents cable strain or mounting flex during service access.
• Outdoor and indoor environment durability: Constructed to withstand thermal cycling and UV exposure typical at facility entry points. While not submersion-rated, the backplate handles rain splash, dust ingestion, and temperature swings common at exterior access control installations without structural degradation.
• Left and right wall installation support: The wedge geometry accommodates mounting on either side of a doorframe or entry vestibule, extending deployment flexibility across different building layouts without requiring separate left-hand and right-hand versions.
• Low-profile form factor: Maintains the compact footprint of the IP SOLO intercom, avoiding the visual bulk of full-motion articulated arms and fitting within standard architectural sightlines at building entries.

Compatibility & Integration

The 02077-001 is designed exclusively for 2N IP SOLO intercom systems and integrates directly with the unit's mounting points. No adapters or secondary fasteners are required. The backplate itself ships without wall anchors or lag bolts—budget standard hardware appropriate to your substrate (concrete, gypsum, metal stud, or masonry). Cable routing around the angled form factor is straightforward, but verify conduit runs at your specific mounting height before final installation; some sites may require minor rework depending on nearby infrastructure.

When to Choose a Different Mounting Solution

If your installation demands variable angle adjustment in the field, consider a full-motion articulated arm or swivel mount rated for the IP SOLO form factor—those allow post-commissioning angle tweaks without remounting. If you need flush vertical wall mounting without any tilt, a standard flat backplate is the simpler choice. If your required angle exceeds 14° (e.g., extreme upward tilt at a high entryway), this wedge will not achieve your geometry target—measure your required tilt angle before ordering.

Deployment Context

The 02077-001 delivers the most value at building envelope installations where the intercom needs to face slightly downward or upward to optimize camera view and microphone coverage. Common deployments include vestibule entry points, loading dock access gates, parking structure entry points, and secure perimeter gates—locations where vertical mounting creates awkward sightlines or poor speaker directionality into the approach zone. The fixed 14° angle is proven across these scenarios and eliminates field adjustment friction during commissioning.

Installation Notes

Mount the backplate to a solid substrate using fasteners rated for your wall type. Pre-drill if mounting into masonry or metal stud to prevent cracking or fastener strip-out. The 02077-001 has no internal components and requires no configuration—it is a pure mechanical mount. Route cables around the angled form factor before final tightening; some conduit or cable tray layouts may require repositioning depending on your mounting location and proximity to structural elements.

Frequently Asked Questions

Q: Is the 02077-001 compatible with other 2N intercom models?

A: No. The backplate is engineered specifically for 2N IP SOLO systems. Compatibility with other 2N models (IP VERSO, IP FORCE, etc.) is not supported. Do not force-fit the 02077-001 to non-SOLO hardware—dimensional mismatch will result.

Q: Can the wedge angle be adjusted or modified in the field?

A: No. The 25% gradient (14°) is fixed. Field angle adjustment requires an alternative mounting solution such as an articulated arm or swivel mount. Attempting to modify the backplate geometry will compromise structural integrity and void any warranty.

Q: What fasteners do I need to install the 02077-001?

A: The backplate does not include fasteners. Use wall anchors, lag bolts, or stud fasteners appropriate to your substrate: concrete expansion anchors for concrete, wood screws or lag bolts for stud, toggle bolts for hollow wall sections, or mechanical anchors for masonry. Verify fastener load rating exceeds the combined weight of the backplate and mounted intercom.

Q: Can the 02077-001 be used indoors and outdoors?

A: Yes. The backplate is rated for both indoor and outdoor environments and tolerates thermal cycling and UV exposure typical of exterior access control installations. However, it is not submersion-rated and should not be mounted below water line or in full spray zones.

Q: Does the 02077-001 provide cable routing channels or cable management?

A: No. The backplate is a mounting surface only. Cable routing is managed by conduit, cable trays, or surface-mounted channels separate from the backplate. Verify your installation layout before final mounting to ensure cable paths around the angled form factor are clear.

Q: Is there a flat (non-wedge) backplate available if I need vertical mounting?

A: The 02077-001 is a wedge-specific accessory. For vertical mounting without angle, consult 2N documentation or your integrator for flat backplate options compatible with IP SOLO systems.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The 02077-001 addresses a genuine field problem: most intercom deployments at building entries benefit from a slight tilt, but field-fabricating mounts or using adjustable arms adds installation time and introduces alignment drift. This fixed-angle wedge backplate removes that friction. The 14° angle is not arbitrary—it's steep enough to optimize downward camera coverage and microphone directionality at vestibule points but shallow enough to avoid extreme mounting conflicts with adjacent infrastructure.

Technical Highlights:

• 25% gradient wedge (14° fixed tilt): Eliminates post-commissioning angle drift and simplifies installation. Once mounted, the geometry does not change, reducing future service callbacks for loose or misaligned mounting.
• Precision IP SOLO fitment: Purpose-built dimensional match to 2N IP SOLO hardware ensures flush integration and professional appearance without visible gaps or wobble—a detail that matters in enterprise access control aesthetics.
• Indoor and outdoor durability: Handles thermal cycling and UV exposure at exterior access control points without structural degradation, extending effective service life across seasonal temperature swings common in North American climates.

Deployment Considerations:

• The 14° angle is fixed and non-adjustable. If your site requires variable tilt or steeper pitch, you will need a different mounting solution. Measure your required angle before ordering to avoid integration delays.
• The backplate ships without fasteners. Budget for wall anchors or lag bolts appropriate to your substrate—undersized fasteners at exterior mounting points can fail under thermal stress or vibration from adjacent doors/gates.
• Cable routing around the angled form factor is straightforward but requires pre-planning. Some conduit runs may need minor rework depending on mounting location proximity to structural elements or existing infrastructure.

Deploy the 02077-001 at vestibule entries, loading dock gates, and secure perimeter access points where a slight downward or upward tilt optimizes both camera frame inclusion and microphone throw into the approach zone. Avoid forcing it into high-angle deployments (above 14°) or expecting field angle adjustment—both will result in installation friction and potential warranty issues.
