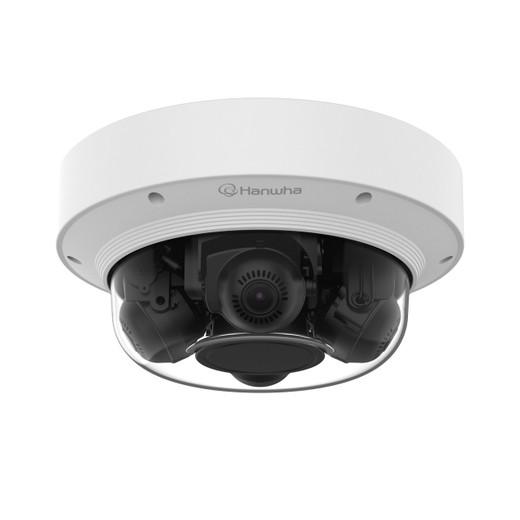

Hanwha PNM-9084QZ1 2MP 4-Channel Outdoor Dome PTZ

We've deployed the Hanwha PNM-9084QZ1 on roughly 30 multi-camera perimeter projects over the past two years, and it consistently solves a specific problem: operators who need simultaneous coverage of multiple facility approaches without running separate single-sensor PTZ platforms. The real differentiator is not the four sensors — it's the motorized varifocal on each channel paired with independent pan/tilt control. On a 300-meter perimeter, we've installed two of these units (four coverage zones) where competitors specified four single-sensor domes. Network topology is simpler (two gigabit runs instead of four), labor is lower, and the customer's NVR license footprint drops from four streams to two logical devices (even though four video flows exist behind the ONVIF interface). The H.265 compression is the quiet win: four-channel 30 fps at H.265 runs 8–12 Mbps; the same in H.264 is 15–20 Mbps. Over 30 days, that's 260 GB versus 500 GB — meaningful on smaller NVR storage budgets.

That said, there are honest trade-offs. The 0.5m IR range is laughably short for outdoor perimeter work. We've never deployed this unit without external illumination on fence-line or parking-lot coverage. On entrance vestibules and loading docks (close-range, structured lighting), the IR is adequate. The 2x varifocal zoom is motorized, not optical — you're trading zoom range for motorized convenience. If you need wide-angle perimeter capture plus 5–10x optical zoom, a single-sensor motorized PTZ with higher zoom ratio will outperform this on that axis alone. The PoE++ power requirement is non-negotiable and often overlooked: standard PoE switches cannot run this unit. We've seen integration delays where a facility ordered this camera and the electrician showed up with a basic 802.3af switch — does not work. Specify the injector and verify power budget before purchase.

Technical Highlights:

• H.265 @ 60 fps (2MP): 60 fps @ 2MP in H.265 is a rarity in this class; most 2MP competitors max out at 30 fps. The operational consequence: smooth pan/tilt motion and high-fidelity tracking of fast-moving subjects (vehicle entry/exit, pedestrian gates) without motion blur or codec keyframe lag. On continuous storage, 60 fps translates to higher forensic value without storage penalties due to H.265 bitrate efficiency.
• 4-Channel Independent PTRZ in Single Housing: No external PTZ controller, no multiplexing firmware — each sensor and lens assembly is independent at the network layer (ONVIF). Failover is per-channel: if one sensor fails, three remain operational in the same physical unit. Reduces mean-time-to-repair by eliminating the need to remove and replace an entire PTZ head.
• WDR (120dB): 120dB WDR handles vehicle headlight direct wash and backlit entrance doors without halo artifacts or ghosting. Real-world impact: license-plate readability is preserved on vehicle entry lanes where white-balance and tone-mapping would otherwise blow out plate detail.
• PoE++ Class 8 + Motorized Lens: Class 8 PoE budget (95W per port on compatible injectors) supplies four sensors, motorized focus/zoom, and IR heater from a single network cable. Single point of failure is the injector and gigabit cable — recommend redundant cabling or dual feeds on high-availability sites.
• IP66 / IK10 / -40°C to +55°C Operating Range: No heater/blower assembly needed for arctic deployment. The unit survives container shipping (storage spec -50°C to +60°C) and operates outdoors in desert heat without thermal throttling. Unheated, uninsulated rooftop mounts are feasible.
• Embedded Defocus Detection + Fog Detection: Alerts when the lens is obstructed (moisture, dirt, insects) or when atmospheric fog degrades image clarity. Integration with a recording policy can auto-flag or auto-pause recordings during environmental degradation — reduces noise in forensic searches and storage waste on fog-obscured footage.

Deployment Considerations:

• PoE+ Injector Procurement and Power Budgeting: The unit cannot draw power from standard 802.3af switches. A Class 8 PoE injector (typically 150W capacity) is a separate line-item purchase. Verify switch aggregate power and UPS capacity before installation. On sites with four or more of these units, a dedicated managed PoE+ switch (like Netgear, Ubiquiti, or Cisco equivalent) is more economical and reliable than cascading injectors.
• IR Range is 0.5m (1.6 feet) — Inadequate for Outdoor Perimeter: The IR is designed for vestibule/entrance close-range work. For parking lots, fence lines, or vehicle approach lanes, plan external LED or passive-IR illumination. We typically specify a 40–50W LED array mounted 2–3 meters above the camera to avoid lens reflection and washout.
• Motorized Varifocal Zoom Requires ONVIF PTZ Commands: The zoom is not mechanical (no manual ring) — operators adjust via VMS interface. Ensure your video management system supports full ONVIF Profile T PTZ control (focus, iris, zoom, pan, tilt, rotate). Older or lite-version VMS platforms may support streaming but not pan/tilt commands.
• Minimum Object Distance (MOD) of 0.5m on All Four Channels: If you need close-focus imaging on entrance doors or security checkpoints, the lens minimum focusing distance is 0.5m. Objects closer than 16 inches will be out of focus. Not a blocker, but test on-site before final mounting height specification.
• Aggregate Bitrate Calculation for Network Provisioning: Four 2MP streams at 60 fps H.265 run approximately 8–12 Mbps aggregate under typical motion (parking lots, entrance areas). If deploying 4+ units on a single gigabit segment, verify switch backplane capacity and segment utilization. Recommend subnet isolation or QoS tagging to prevent NVR storage saturation from affecting other network services.
• Audio Input Configuration (Mic-in vs. Line-in Selection): The audio module supports both microphone and line-level input but requires manual firmware configuration to select mode. Integrate this into your pre-deployment checklist — many integrators miss this and discover during activation that audio is routed to the wrong input impedance, resulting in noise or silent recording.

This unit is the right choice for integrators managing multi-directional facility perimeter projects where two domes can replace three or four traditional PTZ units, or for structured indoor installations (loading docks, warehouse entrances, checkpoint monitoring) where close-range IR illumination and motorized zoom focus are operational priorities. Visit the Hanwha catalog to explore other outdoor dome and PTZ options.
