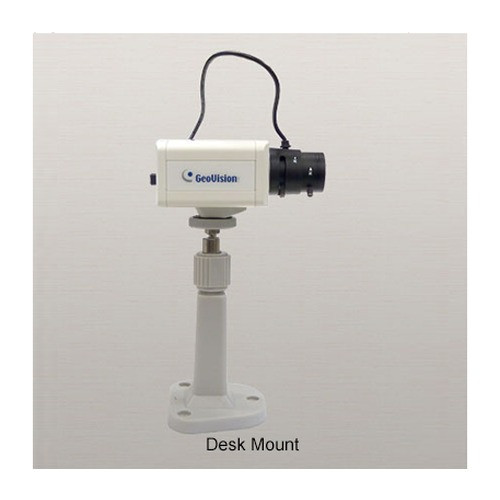

Geovision 84-BX2700V-3D010 2MP Box IP Camera

Overview

The Geovision 84-BX2700V-3D010 is a 2MP box-format IP camera designed for integrators who need mounting flexibility and lens customization in fixed surveillance deployments. The box form factor allows you to select and orient your own lens—a critical advantage when coverage requirements don't fit standard dome or bullet optics. Built-in WDR (Wide Dynamic Range) handles mixed lighting without the HDR artifacts that degrade facial recognition and evidence-grade detail. H.265 compression cuts bandwidth and storage footprint roughly in half versus H.264, a tangible benefit when managing recording across multiple sites or long retention windows on a limited NVR. This camera is purpose-built for retail floors, office corridors, warehouses, and light industrial spaces where you need professional IP networking without the form-factor constraints of fixed housings.

Compatibility

The 84-BX2700V-3D010 integrates with standard IP surveillance infrastructure: ONVIF-compliant VMS platforms, IP recorders supporting H.265 decoding, and PoE-enabled network switches. It supports professional VMS ecosystems (Geovision GV-System and third-party ONVIF Profile S/T implementations). The IPPTZCam networking classification ensures robust TCP/IP stack and reliable integration in multi-camera enterprise deployments. Compatible with any standard M12 or CS-mount lens available in the market, allowing you to match optics precisely to your coverage plan rather than accepting a camera-plus-fixed-lens combination.

Installation Notes

Box cameras require careful lens selection before installation—verify your chosen optics match the camera's sensor size (critical for image circle coverage and corner sharpness). WDR operation assumes mixed-light scenes; in uniform low-light environments, IR supplementation may be necessary. Confirm PoE availability on your switch before deployment; this camera draws power from the same cable as data, eliminating a separate power run. Mount orientation is fully customizable, but ensure adequate clearance for cable routing and optical axis alignment to your target zone.
