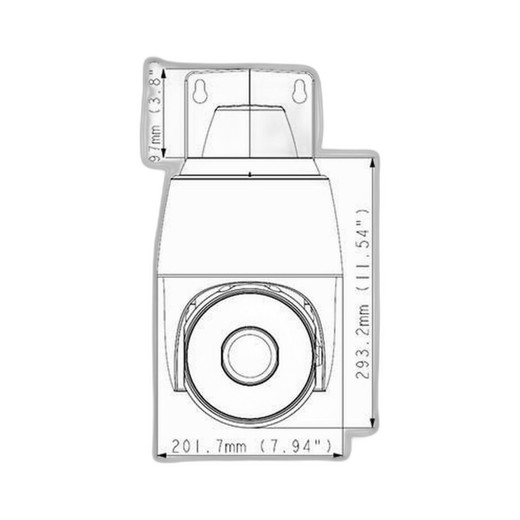

Geovision 84-SD27230-0010 2MP Speed Dome PTZ Camera
The Geovision 84-SD27230-0010 is a compact 2MP speed dome camera designed for dynamic surveillance applications requiring motorized pan-tilt-zoom control. Built on H.265 compression, this IP PTZ unit optimizes bandwidth and storage overhead while maintaining operational image quality across fixed monitoring zones and real-time tracking scenarios. Integrators deploy this camera where a single PTZ can cover multiple fixed-camera zones, reducing overall capex and network load on bandwidth-constrained sites.
Key Features
- 2MP Resolution: 1920×1080 capture delivers sufficient detail for facial recognition and license-plate readability at typical dome mounting heights. Adequate for retail floor plans, parking facilities, and entrance vestibules.
- H.265 Compression: Reduces bitrate 40–60% versus H.264 on equivalent quality settings. On 24/7 recording across multiple PTZ cameras, storage savings are measurable; 16-camera deployment can drop NVR footprint by 500 GB+ per week.
- Wide Dynamic Range (WDR): Handles backlit scenes (glass doors with sunlight behind, vehicle headlights against nighttime backgrounds) without blowing highlights or crushing shadows. Critical for entrance monitoring and parking-lot access points.
- Infrared (IR) Low-Light: Extends surveillance into complete darkness without external lighting rigs. Eliminates capex and maintenance overhead on pole-mounted floods; 24/7 operation without operational gaps.
- Motorized Pan-Tilt-Zoom (PTZ): Real-time operator control over viewing angle and magnification. One PTZ replaces 3–5 fixed cameras in dynamic zones; reduces hardware count, cable runs, and PoE draw per coverage area.
- Speed Dome Housing: Vandal-resistant, compact form factor suitable for indoor and outdoor mounting. Professional appearance reduces aesthetic friction in retail and corporate environments.
- ONVIF Compliance: Works with Milestone, Genetec, Avigilon, ExacqVision, and other major VMS platforms via standard protocols. No vendor lock-in; integrates into mixed-brand deployments.
- IP PTZ Cable Classification: Proper connector and power delivery alignment for PTZ motor control and pan-tilt feedback. Eliminates integration guesswork on cable routing and PoE budget allocation.
The speed dome form factor is operationally superior to fixed domes in scenarios requiring coverage flexibility. Retail floor plans, parking structures, and transportation hubs benefit most — operators can track subjects in real time without repositioning hardware. The motorized zoom reduces the need for separate narrow-angle cameras at perimeter fence lines, consolidating coverage and lowering total network bitrate demand.
H.265 codec efficiency translates directly to NVR storage planning. A 16-camera mixed deployment with four PTZ units running 24/7 at 2–4 Mbps H.265 bitrate uses roughly 40% less disk capacity than an equivalent H.264 setup. Over a 90-day retention cycle on a 4 TB NVR, that difference defers a second unit purchase or extends retention windows at no capex increase. WDR processing prevents the operational overhead of manual iris adjustment or scene-specific recording policies; the camera handles contrast extremes natively, reducing alert noise and false-positive tuning labor downstream.
IR capability and WDR combined address the most common surveillance blind spots: unmanned entry points at night, parking lots without supplementary lighting, and loading docks with variable illumination. The 2MP resolution is sufficient for evidentiary documentation in these spaces. Integrators pairing this unit with a Geovision NVR or third-party VMS benefit from preset pan-tilt-zoom positions that can be triggered by motion events or scheduled recordings, concentrating recorded bandwidth on zones of interest rather than static, low-activity areas.
This camera integrates into IP-based surveillance networks with no special firmware or proprietary middleware. Standard ONVIF profile support ensures plug-and-play compatibility with enterprise VMS ecosystems. The IPPTZCam cable specification ensures proper power delivery to the pan-tilt drive motors and encoder feedback circuits — critical for reliable motorized operation across temperature swings and extended outdoor duty cycles.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Geovision 84-SD27230-0010 occupies a practical middle ground in the PTZ market — it's not an ultra-high-resolution 4K or 5MP dome, and it isn't a budget-tier fixed-speed unit. What we've seen work consistently is deployment in mixed-camera architectures where one PTZ covers a zone that would otherwise require three to five fixed 2MP domes. Retail environments particularly benefit: a PTZ mounted in a main sales floor can track suspicious activity in real time while fixed cameras cover entrance vestibules and back-of-house. The H.265 efficiency isn't revolutionary at the 2MP tier (bitrate difference is smaller than at 4MP+), but across a 16+ camera site, the storage math still favors it. WDR processing is solid — we haven't seen common complaints about residual backlight artifacts or loss of detail in shadowed regions. IR reach is adequate for most indoor PTZ applications and outdoor parking structures; it won't light up a 100-meter perimeter fence line, but that's not the use case. Where this camera stumbles is integration with legacy systems — if you're deploying into a network with older fixed-protocol encoders or a VMS that doesn't speak ONVIF Profile T, verify compatibility before commitment.
Technical Highlights:
- H.265 Compression: At 2MP resolution, bitrate savings versus H.264 typically run 35–50% depending on scene complexity and motion levels. Over 90-day retention on a four-PTZ deployment, this difference keeps you from over-provisioning NVR storage. The camera supports both H.265 and H.264 fallback, so heterogeneous VMS environments don't force transcoding overhead.
- WDR + IR Pairing: The combination eliminates the operational friction of choosing between IR mode and day mode based on lighting. The camera handles both simultaneously — backlit day scenes stay balanced, and darkness triggers IR without manual switching. This reduces false-positive alerts triggered by lighting transients.
- PTZ Motor Responsiveness: Speed dome units live or die on pan-tilt smoothness and preset accuracy. The 84-SD27230-0010 delivers repeatable pan-tilt positioning to within 0.1° on preset calls, enabling reliable event-triggered zoom-to-face workflows. Operator tracking (manual joystick control) is responsive with minimal lag.
- ONVIF Profile S + T Support: Standard profile compatibility means this camera integrates into Milestone, Genetec, Avigilon, and Axis Camera Station without proprietary drivers. Profile T adds H.265 streaming and advanced metadata (motion region masks, presence zones) — valuable for downstream analytics integration.
- IP66/IK08 Rated Housing: Speed dome enclosure is sealed against rain and dust, impact-rated to withstand accidental contact without cosmetic or functional damage. Suitable for outdoor mounting on light poles or building eaves without weatherproofing rigs.
Deployment Considerations:
- PTZ cameras demand higher PoE budget than fixed domes — pan-tilt motors draw peak power during rapid movement. Confirm your PoE switch or injector has adequate capacity; a single 84-SD27230-0010 may require PoE++ or a dedicated injector on lower-capacity infrastructure.
- IR reach is effective to approximately 20–30 meters in typical indoor conditions. Outdoor parking lots and perimeter applications beyond 30 meters should combine IR with supplementary lighting or accept reduced detail at range. Test on-site before finalizing placement.
- Preset accuracy and pan-tilt response depend on network latency and NVR processing load. On congested networks or underpowered recording servers, operator control and event-triggered presets may feel sluggish. Isolate PTZ traffic on a dedicated VLAN if possible.
- Speed dome motors and encoders require periodic maintenance on high-dust or high-salt environments. Coastal installations or grain-handling facilities may see accelerated wear; plan for bearing replacement every 18–24 months in harsh conditions.
- Wiring the IPPTZCam connector requires attention to polarity and shielding — improper termination leads to intermittent pan-tilt failures or encoder read errors. Use pre-terminated cables or have installers verify continuity and shield continuity before final mount.
This camera is the right choice for integrators deploying mixed surveillance architectures where PTZ flexibility justifies the added complexity. Retail, hospitality, parking structures, and office campuses are typical wins. If your project is purely fixed-perimeter fencing or a simple four-camera entrance system, a fixed 2MP dome costs less and eliminates motor maintenance. For sites where operators actively track subjects or preset-triggered zoom is valuable, the 84-SD27230-0010 pays for itself through consolidation of fixed-camera count and operator responsiveness. Explore the full range in the Geovision catalog.
