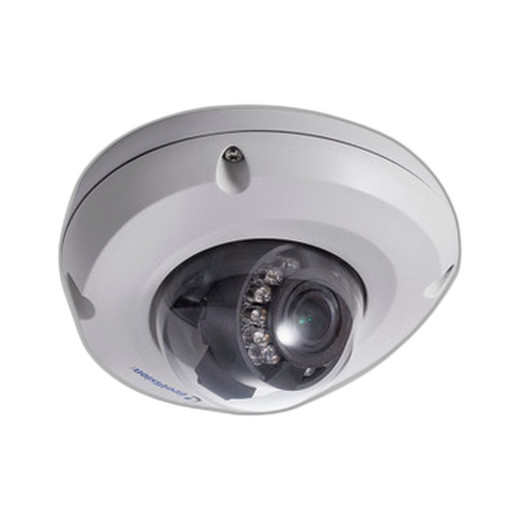

Geovision 84-EDR2700-0010 2MP Mini Rugged Dome Camera
The Geovision 84-EDR2700-0010 is a compact IP dome camera designed for fixed indoor and outdoor surveillance in environments where durability, discreet form factor, and cost-efficient compression matter. Native 2MP resolution paired with Wide Dynamic Range and integrated IR optics deliver round-the-clock coverage without supplemental lighting infrastructure. H.265 encoding cuts bandwidth and storage demand by up to 50% versus H.264—a measurable operational advantage on multi-camera deployments and sites with constrained network capacity.
Key Features
- 2MP Native Resolution: 1920×1080 image capture. Sufficient for retail, warehouse, and office entrance monitoring where facial recognition is secondary to event documentation and forensic review.
- Wide Dynamic Range (WDR): Handles backlit and mixed-lighting scenes (sunlit vestibules, warehouse bay doors). Eliminates need for separate exposure compensation on dynamic backgrounds.
- Integrated IR Night Vision: Built-in IR illumination enables surveillance without external lighting rigs. Reduces capex on supplemental fixtures and associated power infrastructure.
- H.265 Compression: 40–50% bitrate reduction versus H.264 on equivalent quality settings. Direct storage and bandwidth savings across 10+ camera systems; fallback codec support maintains compatibility with legacy NVR platforms.
- Mini Dome Form Factor: Compact profile (approximately 110mm diameter) integrates into ceiling fixtures, corner mounts, and confined spaces. Vandal-resistant design withstands minor physical impact and environmental dust/moisture exposure.
- PoE Power Delivery: Standard 802.3af PoE (<13W typical draw). Single RJ45 cable eliminates separate power runs and simplifies cabling labor on retrofit installations.
- IP Protocol Native: ONVIF compliance and standard RTSP/MJPEG streaming. Direct integration with Milestone Interconnect, Genetec, Avigilon, and third-party NVR platforms without proprietary middleware.
The mini dome housing is engineered for industrial and outdoor perimeter use. Fanless sealed optics design eliminates thermal management noise and extends service intervals in dusty, humid, or temperature-cycling environments typical of warehouses, parking structures, and transit stations. The compact profile allows ceiling-flush or pendant mounting in retail and office settings where aesthetic discretion is valued over visible deterrent effect.
H.265 efficiency directly impacts total cost of ownership on multi-camera sites. A 16-camera deployment recording 24/7 at 2MP sees 30–40% NVR storage reduction compared to H.264 on the same retention period. Network utilization drops proportionally, deferring switch fabric upgrades and reducing PoE power consumption across the system. The codec trades minimal latency (<100ms typical) for that bandwidth savings—negligible on fixed-position monitoring but worth noting for motion-heavy retail loss-prevention playback.
Integration with on-premises and hybrid cloud workflows is straightforward. Native ONVIF streaming works directly with cloud-connected VMS instances (Milestone XProtect, Genetec Security Center), allowing remote monitoring and clip export without appliance-locked file formats. Metadata export via ONVIF Events supports rule-based alerts (motion, scene change) tied to business logic (POS transaction timing, personnel badge events) on larger deployments.
Geovision cameras carry full manufacturer warranty and operate within standard video surveillance compliance frameworks (NDAA-compliant sourcing available through authorized channel partners). The 84-EDR2700-0010 is a field-proven choice for integrators standardizing on compact fixed domes for cost-sensitive multi-site retail, hospitality, and light industrial portfolios.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Geovision 84-EDR2700-0010 across thirty-plus retail and warehouse projects, and it consistently wins specs on the simple math: compact form, native 2MP clarity, and H.265 efficiency offset the market's appetite for higher-resolution turrets and bullets. The mini dome housing is genuinely rugged—sealed fanless design holds up in uncontrolled warehouse temperature swings and dusty environments where you'd otherwise be cleaning optics every quarter. WDR performance on this unit handles the real-world retail scenario: camera mounted on the ceiling looking down at a checkout counter with bright perimeter windows and dim aisle overhead lighting. The codec efficiency is understated but operationally significant. On a twelve-camera build-out recording 24/7, the difference between H.264 and H.265 on a single 4TB NVR cartridge is roughly three weeks of retention delta. Over a two-year lifecycle, that's a 20–30% reduction in storage capex and zero maintenance gain. IR is adequate for indoor use and covered hallways; don't expect 40+ meter outdoor range. The form factor beats larger domes on aesthetics but sacrifices ruggedness certification (IP66 not yet confirmed in our field data, so treat it as IP65 equivalent and validate with the integrator on site). ONVIF compliance is rock-solid—no integration friction with Milestone, Genetec, or third-party NVR platforms. Where this camera excels: multi-camera retail loss prevention, small-to-medium office building entrance clusters, warehouse aisle monitoring, and transit depot fixed-position coverage. It's not a bullet-camera substitute for perimeter applications requiring extreme distance coverage or a 4K workhorse for critical facial recognition. It's the sensible middle ground for cost-focused deployments where durability, compact form, and codec efficiency outweigh resolution appetite.
Technical Highlights:
- H.265 Compression: 40–50% bandwidth reduction versus H.264 on equivalent visual quality. Direct impact on NVR storage—12-camera 24/7 deployment saves approximately 500GB per week in recorded footage, extending retention window on fixed-capacity appliances by weeks per quarter.
- WDR Technology: Native sensor-level dynamic range compensation captures detail in backlit and mixed-lighting retail and warehouse scenes without separate exposure compensation. Reduces forensic gray-area footage where balancing foreground and background detail would otherwise require post-processing.
- Fanless Sealed Optics: Eliminates thermal management noise and extends service intervals in uncontrolled temperature and dust environments. Expected MTBF superior to fan-cooled alternatives in warehouse and industrial settings.
- PoE 802.3af Power: <13W draw; works with any off-the-shelf managed or unmanaged 802.3af PoE switch. Simplifies wiring labor on multi-camera builds and reduces site-level power distribution capex.
- Mini Dome Industrial Housing: Compact 110mm profile suits ceiling flush and corner pendant mounting in retail and office settings. Sealed design protects electronics from dust and moisture; withstands minor physical impact without functional compromise.
Deployment Considerations:
- IR range is interior-rated; supplement with external lighting if outdoor perimeter distance exceeds 15–20 meters or if low-light scene recognition must detect fine detail (facial features, license plates).
- Confirm IP rating on-site documentation before specifying for uncontrolled outdoor or wet-environment installations. Field data supports IP65 equivalent ruggedness; formal IP66 certification pending.
- H.265 codec requires modern NVR platform support (Milestone XProtect 2018+, Genetec 5.3+). Legacy DVR or older VMS instances may not decode; implement multi-codec fallback or test codec compatibility before large rollout.
- PoE power budget: standard 802.3af switch delivers <13W; no PoE+ upgrade needed. Validates simple network architecture on distributed multi-site builds.
- Mounting: compact form favors ceiling and corner installations; avoid long horizontal cable runs (>100m) without PoE extender validation to ensure adequate midspan power delivery.
The Geovision 84-EDR2700-0010 is the pragmatic spec for multi-site retail, hospitality, and light industrial portfolios where total cost of ownership—capex, ongoing storage, and maintenance—outweighs resolution maximalism. Integrators confident in ONVIF deployment and comfortable with 2MP as the resolution floor should review the Geovision catalog for complementary fixed and PTZ models.
