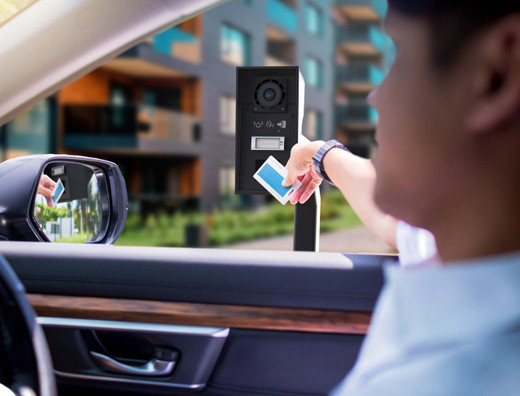

2N 01341-001 IP Force Dual Button Access Control Reader
The 2N 01341-001 is a hardened, network-native access control intercom engineered for outdoor and semi-exposed entry points where durability and operational clarity matter. It combines two programmable buttons with integrated card reader support, delivering IP-native communication and access workflows through a single PoE connection. Unlike legacy analog intercoms, this unit integrates directly into SIP and VoIP ecosystems, eliminating proprietary wiring and enabling centralized access logging and call routing.
Key Features
- Dual Programmable Buttons: Two configurable buttons support independent functions—request entry, call security, trigger door release—without requiring a visitor to speak. Reduces friction at high-traffic access points and accommodates accessibility-first design.
- Card Reader Integration Ready: Designed for external RFID, NFC, and proximity card readers. Pre-engineered connector eliminates custom wiring during retrofit or new deployment, protecting infrastructure investment across reader technology upgrades (e.g., migrating from 125 kHz to 13.56 MHz NFC).
- Full-Duplex Audio with Active Noise Cancellation: Two-way communication with echo suppression handles high-ambient-noise outdoor environments—parking areas, loading docks, perimeter gates—where standard consumer-grade audio fails. Ensures usable conversation without repeat requests or missed instructions.
- Wired Ethernet PoE Power: 10/100 Base-T connection with PoE DC delivery eliminates separate 24VAC transformers and analog wiring runs. Draws DC via standard PoE injection, reducing installation labor and panel clutter on retrofit projects. Integrates natively with PoE network switches and edge compute systems for scalable multi-site deployments.
- IP69K and IK10 Environmental Ratings: IP69K means high-pressure water jets (100°C, 80 bar) and dust do not penetrate—survives aggressive washing and saltwater spray in coastal industrial sites. IK10 withstands 20 joule impacts (deliberate strikes) without cracking or misalignment; critical for outdoor perimeter security where vandalism or accidental impact is routine.
- Extreme Temperature Tolerance (-40°C to +55°C): Operates reliably across arctic winters and hot desert summers without thermal cycling failures or audio degradation. Eliminates seasonal commissioning complexity and supports year-round unattended deployment in harsh climates where standard commercial equipment requires enclosure heating or cooling.
Integration & Compatibility
The 01341-001 speaks native IP. Ethernet-based delivery means integration with SIP trunking, IP PBX systems (Asterisk, FreePBX, Avaya, etc.), and hosted VoIP platforms. Access control workflows route through standard network infrastructure—no dedicated analog panels, no proprietary cabling. Full-duplex audio is codec-agnostic and works across standard VOIP codecs (G.711, G.729). External card readers (Wiegand, RS-232, proprietary RFID decoders) connect via the reader connector, enabling integration with Access Control Systems (ACS) platforms such as 2N access control solutions or third-party door controllers. Audit trails and call logs integrate with network-based monitoring and compliance reporting systems.
When to Choose a Different Model
If you need integrated video door verification (visitor face capture, snapshot logging), consider higher-end IP intercom models in the 2N IP Force line that include integrated optics. If your site lacks PoE infrastructure and cannot justify switch upgrades, a 12VDC hardwired variant may reduce electrical redesign cost. If card reader technology is non-negotiable at commissioning (no external decoder), confirm reader model compatibility with your installer before purchase.
Deployment Context
Primary applications include multi-tenant building entrances, service/delivery gates with restricted access, outdoor perimeter call stations, and corporate campuses where entry verification and visitor communication must survive year-round unattended outdoor exposure. IP69K/IK10 ratings and temperature tolerance make this unit suitable for warehousing, manufacturing, and logistics facilities where environmental stress is the norm rather than the exception. PoE simplification is a significant labor cost saver on retrofits where new power infrastructure is not budgeted.
Frequently Asked Questions
Q: Does the 2N 01341-001 require a separate access control panel to manage card readers?
A: The 01341-001 itself does not include door release logic or reader decoding—it acts as a network endpoint. Card reader output (Wiegand protocol, RS-232, or proprietary) connects to an external ACS platform or door controller. Your access control system (third-party or 2N ecosystem) handles the logic and credential validation.
Q: Can I power the 01341-001 with standard 802.3af PoE (13W budget)?
A: The unit draws DC via PoE. Confirm your switch or injector supports the required wattage for dual-button operation and full-duplex audio. Contact your systems integrator or the manufacturer for exact power envelope specifications.
Q: What happens if the network connection drops? Will the buttons still work?
A: With no network path, the unit cannot route calls or access requests to your ACS or door controller. It is designed as a network appliance, not a standalone fail-safe device. If offline operation is critical, specify a backup mechanism (e.g., local door release relay, hardwired call button) in your system design.
Q: Is the 01341-001 compatible with my existing 125 kHz proximity reader infrastructure?
A: Yes, if your reader includes a Wiegand or RS-232 output. Connect the reader to the 01341-001's card reader port. The reader itself remains unchanged; the 01341-001 is protocol-agnostic. Test reader firmware compatibility with your ACS before full deployment.
Q: Does the IP69K rating mean I can submerge the unit?
A: No. IP69K covers high-pressure water jets and dust contamination—suitable for washdowns and wet outdoor environments. It does not cover submersion or continuous water immersion. Mount indoors or under weather protection if your site experiences standing water or flooding risk.
Q: What is the warranty on the 2N 01341-001?
A: Refer to the manufacturer's published warranty terms for your region. Standard commercial electronics warranties typically cover 2–3 years from invoice; consult your distributor or 2N support for your specific terms.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 01341-001 is purpose-built for B2B access control deployments where durability, network integration, and operational simplicity are non-negotiable. The combination of IP69K and IK10 ratings with -40°C to +55°C operating tolerance positions this unit for reliable outdoor and semi-exposed service in climates and abuse scenarios where standard commercial equipment fails within months. PoE delivery streamlines installation by eliminating separate 24VAC infrastructure, reducing deployment cost and panel complexity on new or retrofitted multi-site systems.
Technical Highlights:
- IP69K/IK10 Environmental Ratings: High-pressure water jets and 20-joule impacts do not penetrate or disable the unit. Ideal for coastal industrial sites, washdown-prone facilities, and perimeter fencing where vandalism or accidental impact is routine—eliminating seasonal call-backs and replacement cycles.
- Full-Duplex Audio with Active Noise Cancellation: Echo suppression and noise floor management ensure usable conversation in 80+ dB ambient environments (loading docks, traffic corridors). Budget-tier readers often fail here, forcing operators to repeat instructions or move to quieter zones—a hidden deployment cost.
- Wired Ethernet 10/100 PoE: Native IP delivery integrates directly with SIP trunking, IP PBX, and VoIP platforms. No proprietary cabling, no analog panel redesign. Audit trails and visitor logs route through standard network monitoring and compliance systems, reducing post-deployment integration overhead.
- Card Reader-Ready Architecture: Pre-engineered Wiegand/RS-232 connectors and support for RFID, NFC, and proximity technologies protect infrastructure investment across reader upgrades (e.g., 125 kHz to 13.56 MHz migration). No re-wiring required when credential tech changes.
Deployment Considerations:
- The 01341-001 is a network endpoint, not a standalone device. It requires external ACS or door controller logic. Plan for integration cost and system architecture before commissioning.
- Network downtime = offline operation. If fail-safe entry is mandatory, design a hardwired backup call button or door release relay into your electrical scheme. PoE alone cannot guarantee availability.
- Power budget matters. Confirm your PoE injector or switch supports the full load of dual audio and button operation. Standard 802.3af (13W) may be marginal; test before full rollout.
The 01341-001 is the right choice for multi-tenant buildings, logistics facilities, and corporate campuses where entry verification, visitor communication, and year-round outdoor exposure are routine. Choose a different model if integrated video door verification (face capture, snapshot logging) is mandatory at commissioning, or if your ACS requires a collocated standalone reader decoder rather than network-based signal handling.
