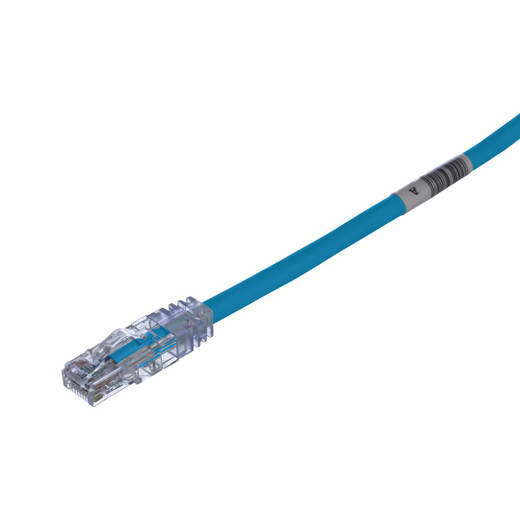

Panduit UTPSP25BUY Cat 6 UTP Patch Cord
The Panduit UTPSP25BUY is a 25-foot Cat 6 unshielded twisted pair patch cord engineered for high-density enterprise network closets, datacenter ToR switching, and PoE-intensive access-layer deployments. Built on Panduit's TX6 PLUS platform with 24 AWG stranded copper conductors and performance-tested modular plugs, this blue patch cable delivers reliable 10GBASE-T performance over distances specified in IEEE standards while supporting 802.3bt Type 4 PoE (up to 100W). The tangle-free latch design and slender strain relief boot address the two most common failure points in production environments—snagged latches during MACs and congested patch-panel access in 1U switch stacks.
Key Features
- TX6 PLUS Cat 6 platform with centered de-embedded plug geometry and integral pair manager for consistent 250 MHz headroom
- 24 AWG stranded copper conductors in U/UTP construction—flexible for tight-bend routing without kinking
- Patented tangle-free latch prevents snags on adjacent cables during adds/moves; allows single-finger release in confined spaces
- Slender strain relief boot reduces port-to-port spacing requirements in high-density 48-port switch installations
- RapidID pre-installed barcode labels enable automated port mapping with Panduit RapidID software—critical for accurate as-built documentation in multi-building campus networks
- 100% factory tested for wire map, NEXT, and return loss—every cord ships with verified performance, eliminating field testing on routine installs
- CM-rated jacket meets NEC Article 725 and CEC for general building horizontal distribution
The UTPSP25BUY exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements across the full 1–250 MHz spectrum, making it suitable for 10GBASE-T links up to the 55-meter distance limit defined in IEEE 802.3an when used with compliant horizontal cabling. The centered plug geometry and de-embedded contact design maintain insertion loss and return loss margins even after repeated mating cycles—a critical consideration in environments where patch cords are frequently reconfigured. Panduit's integral pair manager inside the plug maintains twist geometry through the termination point, reducing alien crosstalk in dense bundles where dozens of patch cords run parallel inside cable managers. For PoE deployments, the 24 AWG conductor gauge provides lower DC resistance than 26 AWG or 28 AWG alternatives, reducing voltage drop on PSE-to-PD links and improving power delivery efficiency for 802.3bt Type 3 (60W) and Type 4 (100W) devices such as PTZ cameras, wireless access points, and VoIP conference phones.
The 25-foot length is a standard fit for mid-rack cross-connects in enterprise network closets—long enough to reach from a patch panel at the top of a 42U rack to switches mounted mid-rack or in an adjacent relay rack, yet short enough to avoid excess cable management overhead. In access-layer switch stacks serving IP surveillance or VoIP endpoints, the blue jacket provides visual identification for data VLANs (when paired with yellow for PoE uplinks or green for VoIP, per site-specific color-coding schemes). The tangle-free latch is a field-proven time-saver during MAC cycles: traditional snagless boots catch on adjacent cables when pulling from dense patch panels, often requiring two hands and a flashlight; Panduit's design allows single-finger release and straight-line extraction, cutting troubleshooting time in half during after-hours maintenance windows. RapidID barcode labels integrate with Panduit's asset-management software to generate accurate port maps and cable schedules—essential for maintaining audit trails in healthcare, financial, and government facilities where change-control documentation is a compliance requirement.
The UTPSP25BUY ships in single-unit packaging with 10 cords per carton, and it meets UL 1863, CSA C22.2, IEC 60603-7, and ANSI/TIA-1096-A standards. Wired to be compatible with both T568A and T568B termination schemes, it integrates seamlessly into existing structured cabling systems regardless of site wiring convention. RoHS compliant for use in EU and California public-sector projects.
