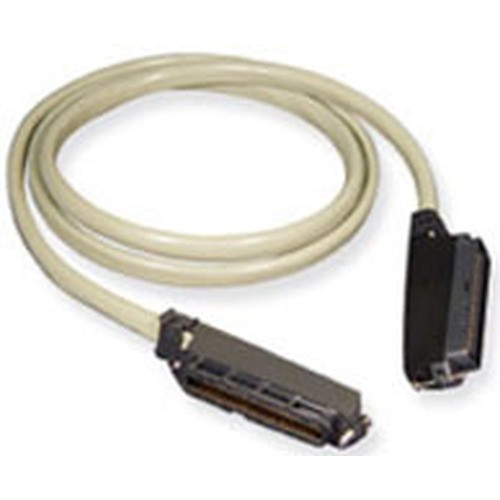

International Connectors and Cable ICPCSTFM15 25-Pair Cable Assembly

Overview

The International Connectors and Cable ICPCSTFM15 is a 15-foot, 25-pair cable assembly designed for specific signal routing requirements in surveillance and IT infrastructure deployments. Its 90-degree female-to-male connector configuration facilitates tight-space installations where standard straight-through connections are not feasible. This cable is critical for ensuring signal integrity between components that require a specific, angled connection path, such as routing cables behind equipment racks or within confined equipment enclosures.

Compatibility

This cable assembly is engineered for use with equipment featuring 25-pair D-sub connectors requiring a 90-degree interface. It is commonly employed in legacy surveillance systems that utilize multi-conductor cabling for camera control, telemetry, or audio, as well as in certain data networking or telecommunications applications. Verify your specific equipment's connector type and pinout requirements before deployment.

Installation Notes

The 90-degree connectors on the ICPCSTFM15 are designed to reduce strain on the connection point and minimize the physical footprint behind the connected device. Ensure sufficient clearance for the connector housing itself, which extends approximately 2 inches from the equipment port. The cable's 15-foot length provides moderate reach for connecting adjacent or moderately spaced equipment. Avoid sharp bends or kinks in the cable to maintain signal integrity.
