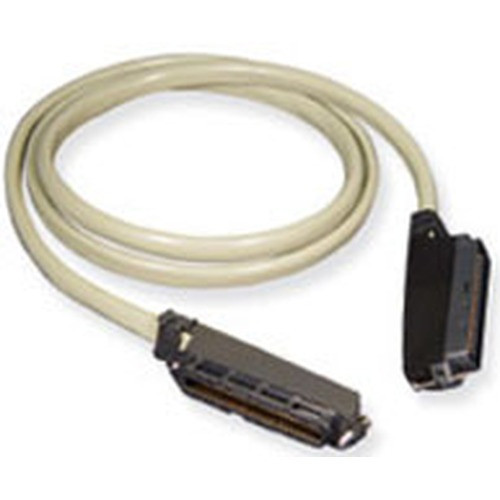

International Connectors and Cable ICPCSTFM10 25-Pair Cable Assembly F-M 90 degree 10 FT

Overview

The International Connectors and Cable ICPCSTFM10 is a 10-foot cable assembly featuring 25 pairs of conductors, configured with a female connector on one end and a male connector on the other, with a 90-degree bend at the female connector. This specific configuration is designed to facilitate precise routing and connection in environments where space is constrained or specific cable management is required, such as within control cabinets or behind equipment racks. It ensures a clean and reliable signal path for systems requiring multiple conductor pairs.

Compatibility

This cable assembly is designed for direct integration with International Connectors and Cable's proprietary systems and specific equipment models that utilize its unique 25-pair connector interface. It is intended for use with control panels, sensor arrays, or other devices within the International Connectors and Cable ecosystem that require this specific pinout and connector type. Verify your existing equipment's connector specifications against the ICPCSTFM10's female and male 90-degree connectors to ensure compatibility.

Installation Notes

The 90-degree angle on the female connector of the ICPCSTFM10 is critical for managing cable bend radius and ensuring proper fit in tight enclosures. Avoid exceeding the specified bend radius to prevent conductor damage and signal integrity issues. Ensure both connectors are fully seated and locked into their respective ports before powering on connected equipment. The 10-foot length provides moderate reach, suitable for connections within a single rack or between adjacent equipment.
