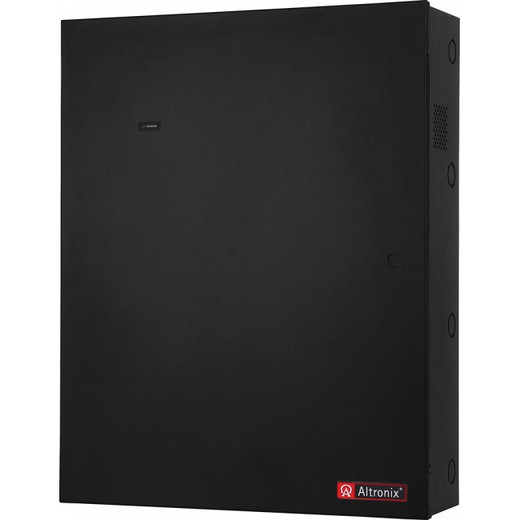

Altronix 24V@10A&12V@10A 14DR S2 220V - T2SSK75F14V

Altronix T2SSK75F14V Dual Voltage Power Distribution Module

Overview

The Altronix T2SSK75F14V is a versatile power distribution module designed to efficiently power multiple surveillance devices from a single source. It consolidates two distinct voltage outputs, 24VDC at 10A and 12VDC at 10A, from a 220VAC input. This unit is ideal for installations requiring mixed voltage requirements for cameras, encoders, or other security peripherals, simplifying wiring and reducing the need for multiple power supplies. The T2SSK75F14V is built for reliable, continuous operation in demanding environments.

Compatibility

This power distribution module is designed to work with 220VAC input power sources. It is compatible with a wide range of surveillance equipment that requires either 24VDC or 12VDC power, including but not limited to: Altronix power distribution enclosures, various IP camera brands (e.g., Axis, Hanwha, Hikvision) requiring specific voltages, video encoders, and network switches that accept these DC input voltages. It is specifically designed to integrate with Altronix's T2 Series enclosures.

Installation Notes

Installation requires a 220VAC power source. The unit features 14 fused outputs, with 10 outputs providing 24VDC and 4 outputs providing 12VDC. Each output is individually fused, allowing for isolation of faults and protection of connected devices. Proper wiring practices for 220VAC input and DC output distribution must be followed. The module is designed to be mounted within compatible Altronix enclosures, such as the T2SSK75F14V.

What's in the Box

• 1x Altronix T2SSK75F14V Power Distribution Module
• 14x Fuses (pre-installed or included for user configuration)
• 1x Installation Manual
