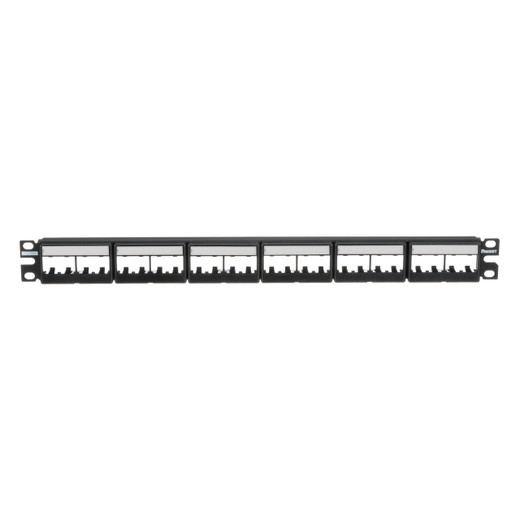

Panduit CPPL24WBLY Patch Panel

Overview

The Panduit CPPL24WBLY is a 24-port modular patch panel designed for unshielded copper systems. It mounts in standard 19-inch racks and cabinets, providing a structured termination point for network cabling. Its front-access design and integrated label pockets simplify cable management and identification in network closets and data centers, ensuring easier troubleshooting and maintenance. This panel supports 24 Mini-Com modules, making it suitable for high-density deployments where clear labeling is critical.

Compatibility

This patch panel is engineered to accept 24 Panduit Mini-Com modules for unshielded applications. It is designed for installation in 19-inch racks and cabinets. Compatibility extends to Panduit's extensive range of copper keystone jacks and modules within the Pan-Net® system, allowing for flexible configuration with Cat5e, Cat6, and Cat6A components.

Installation Notes

The CPPL24WBLY is a 1U (Rack Unit) height panel, consuming minimal vertical space in standard equipment racks. Its 19-inch width ensures standard mounting compatibility. The front-access design facilitates module insertion and removal without needing to access the rear of the rack, streamlining installation and serviceability. The CRS (Cold Rolled Steel) construction provides rigidity for rack mounting.
