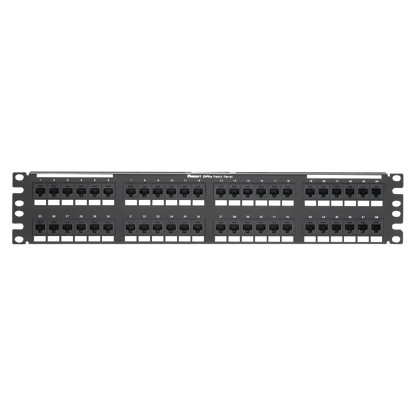

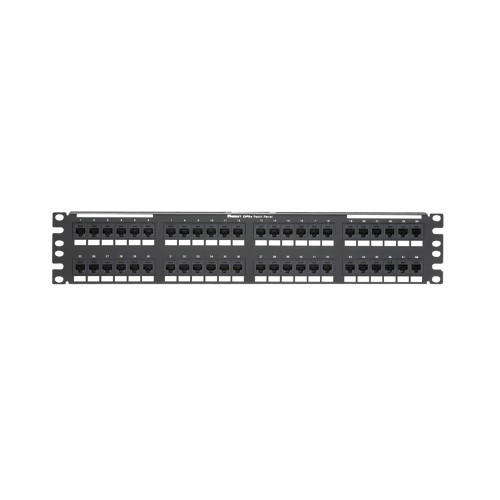

Panduit DP485E88TGY Patch Panel

Overview

The Panduit DP485E88TGY is a 48-port, Cat5e, punchdown distribution panel designed for structured cabling installations. It terminates copper cabling and provides 48 RJ45 ports for network connectivity. With its 2U height and steel construction, it is suitable for standard 19-inch racks in commercial or enterprise environments. The Pan-Nettie™ sub-brand signifies its role within Panduit's comprehensive networking infrastructure solutions.

Compatibility

This patch panel meets or exceeds ANSI/TIA-568-C.2 Category 5e component and channel requirements up to 100 MHz, ensuring compatibility with standard Cat5e copper cabling systems. It supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++ up to Type 3 and Type 4, providing up to 100W) power delivery applications, making it suitable for powering devices like IP cameras, wireless access points, and VoIP phones directly through the network cable without requiring separate power injectors or outlets at each endpoint.

Installation Notes

The panel is constructed from steel for durability. It meets ANSI/TIA-968-A and IEC 60603-7 standards. UL 1863 approval is noted. It is designed for punchdown termination, requiring standard punchdown tools. The panel's 19-inch width is standard for 19-inch racks, and its 2U height occupies two rack units.
