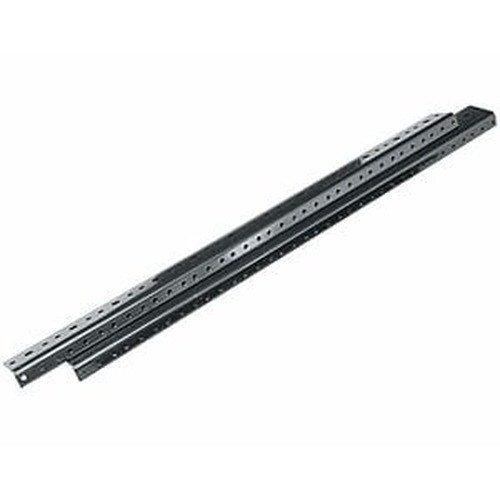

Middle Atlantic 21 Space ERK Series Rear Rackrail - ERK-RR21

Middle Atlantic ERK-RR21 21-Space ERK Series Rear Rack Rail

Overview

The Middle Atlantic ERK-RR21 is a 21-space (21 RU) rear rack rail engineered specifically for the ERK Series slide-out rack family. If you're building out or expanding an equipment rack installation and need a rear rail that pairs directly with ERK frame hardware, this is the part — not a universal generic, but a series-matched component that maintains the structural integrity and alignment precision the ERK platform is designed around.

Rear rack rails are the kind of part that gets overlooked until something goes wrong. A mismatched rail creates misaligned mounting holes, inconsistent 10-32 thread engagement, and — in slide-out configurations — binding that defeats the purpose of the sliding mechanism entirely. The ERK-RR21 eliminates that risk by being the correct part for the correct application.

Key Features

• 21U Usable Height (36.75 in / 93.3 cm): Accommodates a full 21-rack-unit load in a single rear rail — matched exactly to the ERK Series frame depth so every U-space lines up with the front rail without shimming or adjustment. If your rack is 21U, this is the rear rail.
• 10-32 Rack Rail Type: Standard 10-32 threaded hole pattern is the most common fastener spec in professional AV and IT rack installations, giving you broad compatibility with rackmount ears, cage nuts are unnecessary — just thread in directly. Avoid mixing with square-hole (EIA 310-E) frames or M6 metric rails, which require different hardware.
• 20-Inch Depth (50.8 cm): At 20 inches, this rail suits mid-depth rack enclosures without extending beyond the ERK footprint. Verify your equipment depth against this spec — gear with rear-hanging connectors or deep chassis may need rear-rail setback management.
• Black E-Coat Finish: Electrocoated paint provides corrosion resistance without the thickness variation of powder coat, keeping hole tolerances tight. In rack environments with variable humidity — server rooms, network closets, security equipment bays — E-coat holds up without flaking into equipment or fouling threads.
• 1.41-Inch Rail Width (3.6 cm): The narrow profile keeps the rail from interfering with cable routing behind mounted equipment, an important consideration when rear cable management is dense.
• 6.4 lb Shipping Weight (2.9 kg): Manageable for a single installer during rack assembly or retrofit. No lift equipment required for the rail itself — the rack assembly may still require a second set of hands depending on the loaded weight of the frame.

Integration & Compatibility

The ERK-RR21 is part of the Middle Atlantic rack and enclosure product line and is designed for ERK Series slide-out racks. Before ordering, confirm your ERK frame's rack unit count matches 21U — Middle Atlantic offers ERK rear rails in other U sizes for different frame configurations. This rail is not interchangeable with non-ERK Middle Atlantic frames (such as BGR or WRK series) which use different depth and mounting geometries.

The 10-32 threaded rail pattern is compatible with the vast majority of professional rack accessories and network video recorders built to EIA/TIA standards. Equipment designed for M6 metric or 12-24 threaded rails will not engage correctly — verify your equipment's rack hardware specification before deployment.

For integrators managing security equipment racks or AV systems, pairing this rear rail with a front rack mounting solution from the same ERK family ensures consistent hole registration across all 21U positions.

What's in the Box

• 1x Middle Atlantic ERK-RR21 21U Rear Rack Rail

Frequently Asked Questions

Q: Is the ERK-RR21 compatible with non-ERK Middle Atlantic rack frames?

A: The ERK-RR21 is engineered for the ERK Series slide-out rack family. It is not designed for interchangeable use with other Middle Atlantic frame series such as BGR or WRK, which have different depth profiles and mounting geometries. Confirm your frame series before ordering.

Q: What thread type does the ERK-RR21 use?

A: The ERK-RR21 uses a 10-32 threaded rack rail pattern — the standard in professional AV and IT rack installations. No cage nuts are required; rackmount hardware with 10-32 screws threads directly into the rail. Do not use this rail with equipment requiring M6 metric or square-hole (EIA 310-E) mounting.

Q: How deep is the ERK-RR21?

A: The ERK-RR21 has a 20-inch (50.8 cm) depth. This matches the ERK Series frame depth. Verify that your deepest chassis and any rear-hanging connectors or cable assemblies fit within this dimension before installing rear-facing equipment.

Q: Does the ERK-RR21 come as a pair or a single rail?

A: The ERK-RR21 is sold individually — package count is 1 (one rail). If you need both left and right rear rails for a rack build, order the quantity accordingly.

Q: What is the finish on the ERK-RR21?

A: The rail uses a black E-coat (electrocoat) finish, which provides corrosion resistance and dimensional consistency compared to powder coat. This is appropriate for standard indoor equipment rack environments including server rooms, network closets, and security equipment installations.

Q: What is the usable rack height of the ERK-RR21?

A: The ERK-RR21 provides 36.75 inches (93.3 cm) of usable height across 21 rack unit positions, matching the full usable height of a 21U ERK Series frame.
