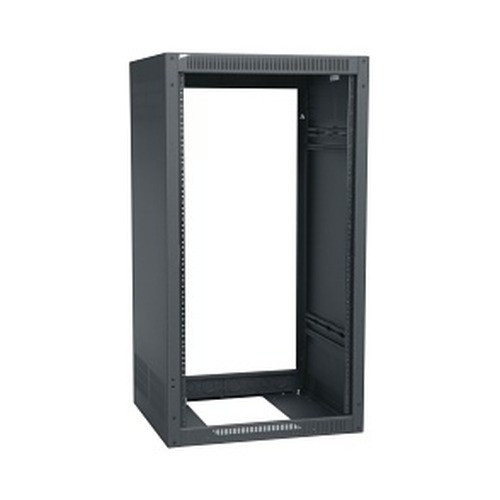

Middle Atlantic ERK-2128LRD 21U 28-Inch Open Frame Rack
Overview
The ERK-2128LRD is a 21-space, 28-inch-deep open-frame rack from Middle Atlantic's ERK series — built for installations where rear-door access isn't needed and cable management or airflow is a higher priority than enclosure. The frame-only configuration means no rear door to work around when you're dressing cables behind a row of NVRs, patch panels, or network switches. At 40.88 inches tall (36.88 in usable height across 21 RU), the ERK-2128LRD fits standard equipment rooms without hitting ceiling constraints. Its 22-inch exterior width houses a standard 19-inch panel width with room for vertical cable management on the sides. Steel construction with a black wrinkle powder coat finish holds up to the abuse of a working equipment room — and the 2,500 lb UL-rated load capacity means you won't be calculating headroom on a fully populated rack of dense surveillance or AV gear. TAA-compliant and manufactured in the USA, making it eligible for federal and government procurement projects. Seismic load capacity is UL Listed — relevant for California, PNW, and other seismic-zone deployments where rack anchoring is a code requirement.
Compatibility
Accepts any standard 19-inch rackmount equipment using 10-32 threaded rail — the most common fastener standard across network video recorders, AV amplifiers, UPS units, patch panels, and 1U/2U servers. The 26.47-inch usable depth (28 inches nominal) accommodates deep chassis common in surveillance and AV environments — most 1U NVRs, managed PoE switches, and rackmount UPS units fit without rail extension. Pairs with Middle Atlantic's ERK series accessories including blanking panels, vented shelves, and vertical cable managers designed for this frame's rail spacing. Review Middle Atlantic's rack enclosures and accessories for matching cable management and blanking solutions. Not compatible with square-hole or round-hole toolless rail systems without separate adapter hardware.
Installation Notes
Ships assembled — no flat-pack assembly required. Anchor points support standard four-point floor anchoring; seismic-zone installs should follow ASCE guidelines and local code. 10-32 cage nuts and screws are not included in the frame-only configuration — order separately based on equipment count. Product weight is 70.1 lbs; plan for two-person positioning, especially in tight equipment rooms. Leave adequate front and rear clearance for equipment ventilation given the open-frame design provides no forced-airflow path.
