Middle Atlantic 20A 6 OUT Series Surge Compact - PDX-620C-SP

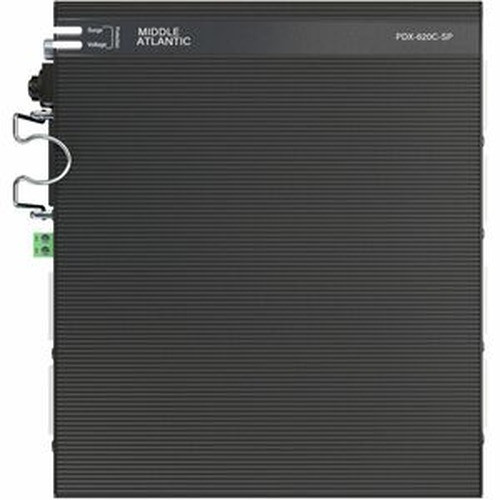

Middle Atlantic PDX-620C-SP NEXSYS Compact Power Distribution Unit

The Middle Atlantic PDX-620C-SP is a 0RU, behind-the-display power distribution unit purpose-built for digital signage installations and similar tight-space AV deployments where a standard rack-mount PDU simply won't fit. Rated at 20A on a single 120VAC circuit, it delivers six NEMA 5-20R outlets with multi-stage surge protection in a profile measuring just 1.74 inches tall by 7 inches deep — small enough to disappear behind virtually any commercial flat panel. If you're commissioning a power distribution solution for a wall-mounted display or kiosk enclosure and need clean, protected power without visible hardware, this is the form factor to evaluate.

Key Features

• Six NEMA 5-20R Outlets at 20A: Six twist-lock-ready 5-20R receptacles on a single 20A circuit means you can power a display, media player, lighting controller, and ancillary devices from one PDU — no daisy-chaining power strips or hunting for additional wall circuits. The 20A rating versus the more common 15A gives you headroom for displays with higher inrush current at startup.
• Series Multi-Stage Surge Protection: The NEXSYS multi-stage architecture addresses surge events in sequence rather than relying on a single-stage MOV that degrades over time and fails silently. For permanent digital signage installs where a service call is expensive, a surge protection scheme that doesn't quietly stop working matters more than it does in easily-accessed rack gear.
• 0RU Compact Form Factor — 1.74 in H x 7 in D: At 1.74 inches tall and 7 inches deep, the PDX-620C-SP is specifically dimensioned for behind-display mounting in the dead space between a flat panel and the wall. This eliminates the need for a separate power enclosure or surface-mounted conduit run — a meaningful labor and materials saving on multi-unit digital signage rollouts.
• Behind-the-Display Mounting: Designed to mount directly behind commercial flat panels, the unit integrates into the display mounting system rather than requiring a separate mounting point. This keeps installations clean for retail, hospitality, and corporate lobby environments where exposed cabling or hardware is unacceptable to the end client.
• IEC C20 Input Connector with 2 ft Cord: The IEC C20 input is the commercial-grade standard found on UPS units and higher-current PDUs, not the residential C14 found on lighter-duty gear. The 2-foot cord is intentionally short — appropriate for behind-display installations where the wall outlet or UPS output is immediately adjacent. Verify your UPS or wall circuit has a C19 or NEMA 5-20P output before specifying.
• 120VAC / 60Hz Input: Matched to North American electrical infrastructure — no step-down transformer needed for US and Canadian installs. Not applicable to 230VAC international deployments.

Integration and Compatibility

The PDX-620C-SP works within the broader Middle Atlantic power management lineup, making it straightforward to pair with a compatible UPS from the same ecosystem for battery backup on mission-critical signage. The IEC C20 input mates directly with C19-output UPS units — a common configuration in managed digital signage deployments where displays must survive brief utility interruptions without going dark. For installs requiring remote monitoring or outlet-level control, step up to a networked PDU in the Middle Atlantic range; the PDX-620C-SP is a passive distribution unit with no network management port. If your project requires uninterruptible power supply integration, plan your UPS selection around the C20 input requirement and confirm the UPS can handle the aggregate load of all six outlets under worst-case conditions.

Frequently Asked Questions

Q: Does the PDX-620C-SP have network management or outlet-level switching?

A: No. The PDX-620C-SP is a passive power distribution unit with surge protection. It does not include a network management port, outlet switching, or remote monitoring capabilities. If you need those features, look at a managed PDU in the Middle Atlantic NEXSYS line.

Q: What input connector does the PDX-620C-SP use, and what does that mean for my UPS connection?

A: The PDX-620C-SP uses an IEC C20 input with a 2-foot cord. To connect to a UPS, that UPS must have a C19 output receptacle. Confirm your UPS output connector type before ordering.

Q: Can the PDX-620C-SP be rack-mounted in a standard 19-inch rack?

A: It is rated 0RU — it is not designed for rack mounting. The PDX-620C-SP is purpose-built for behind-the-display installation in digital signage and similar flush-mount AV applications.

Q: What type of outlets does the PDX-620C-SP provide?

A: Six NEMA 5-20R outlets. These accept both standard NEMA 5-15P plugs and 5-20P plugs, giving you flexibility across connected devices.

Q: Is the PDX-620C-SP suitable for 240VAC or international deployments?

A: No. The PDX-620C-SP is rated for 120VAC / 60Hz — North American electrical infrastructure only. It is not suitable for 230VAC or 50Hz international installations.

Q: What is the maximum current capacity of the PDX-620C-SP?

A: 20A total input current across all six outlets combined. Plan your connected load budget to stay within that ceiling, accounting for device inrush at startup.

Jerry Tildsen

The PDX-620C-SP comes up regularly when I'm speccing power for permanent digital signage installs — specifically because of its 1.74-inch height profile and the IEC C20 input. That C20 detail is easy to overlook during the design phase, and I've seen integrators get on-site only to find their UPS has C13 outputs rather than C19. Confirm that connection point early.

Technical Highlights:

• 20A / 120VAC Rating: Gives you real headroom on a single circuit — most commercial displays pull 3–6A at load, so six outlets at 20A aggregate lets you drive the display, a media player, and peripheral devices without approaching the circuit limit under normal operating conditions.
• Series Multi-Stage Surge Protection: Multi-stage architectures are more durable under repeated surge events than single-MOV designs. In permanent installs where this unit lives behind a panel for years, that durability difference is worth specifying over a generic surge strip.
• 0RU / 7-Inch Depth: At 7 inches deep and 1.74 inches tall, this fits behind virtually any commercial flat panel with standard wall clearance. No separate junction box, no surface conduit — clean installs on first visit.

Deployment Considerations:

• The 2-foot power cord is intentionally short for behind-display applications — make sure your wall circuit or UPS output is within reach. Extending it with a standard extension cord defeats the clean-install purpose and may violate local electrical code depending on jurisdiction.
• There is no network management on this unit. If the project scope requires outlet-level monitoring, load reporting, or remote reboot capability, this is not the right PDU — step to a managed NEXSYS model with those features built in.

The PDX-620C-SP (often searched as PDX 620C SP) is the right call for multi-display retail or corporate lobby rollouts where clean aesthetics are a contract requirement and the electrical scope is straightforward 120VAC North American infrastructure — not for deployments that need monitoring, international voltage, or rack-mount form factor.
