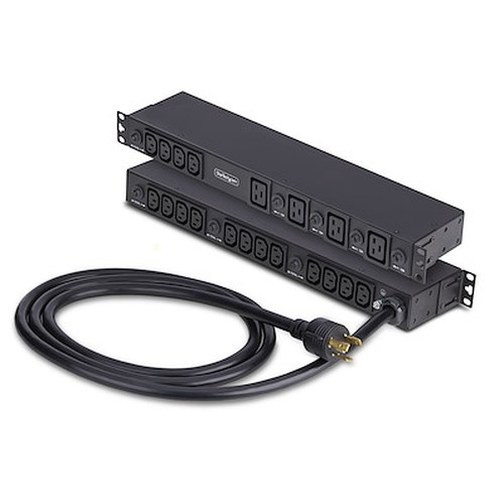

StarTech 2030B8H-RACK-PDU-IC 1U Rackmount Power Distribution Unit

Overview

The StarTech 2030B8H-RACK-PDU-IC is a 1U horizontal rackmount PDU built for high-density server and network environments where 200–240V power distribution needs to be clean, organized, and capable of sustaining real datacenter loads. With 20 total outlets — 16 IEC C13 and 4 IEC C19 — spread across front and rear access positions, this unit handles everything from 1U servers and switches to UPS units and high-draw storage arrays without requiring a separate power strip for each device tier. If you're running a rackmount PDU refresh in a high-voltage environment and need genuine 30A capacity in a single rack unit, this is a model worth evaluating seriously.

Key Features

• 20 Outlets (16x C13 + 4x C19): The C13/C19 split is intentional — C13 handles standard server PSUs and 1U switches, while the four C19 ports accommodate higher-draw devices like UPS units, high-density blade chassis, or storage arrays that require the larger locking connector. You're not burning a C19 port on a 1U firewall that only needs C13.
• 30A Maximum / 24A Derated Input: Rated at 30A maximum with a 24A derated continuous operating current — that 80% derating is standard practice for code-compliant continuous loads and directly maps to NEC Article 210.19 expectations. In a fully loaded 20-outlet rack, this headroom matters. Plan around 24A for sustained operation, not 30A.
• 200–240V Input and Output: Operating at 200–240V nominal means this unit is purpose-built for international datacenter environments and US facilities wired with dedicated 208V or 240V circuits — not split-phase 120V. If your rack is fed from a 208V PDU tap or a 240V dedicated circuit, this PDU integrates directly without step-down conversion.
• NEMA L6-30P Input Connector: The twist-lock L6-30P plug mates with the standard 30A 240V receptacles common in raised-floor datacenters, colocation facilities, and purpose-built server rooms. No adapter required in a properly provisioned colo cage or dedicated server room circuit.
• 1U Form Factor — 1.7 in tall, 3.7 in wide: At 1.7 inches tall (1U) and 3.7 inches wide, this PDU fits in a standard EIA/ECA-310-E rack without consuming additional U-space. The horizontal orientation keeps outlet access predictable and cabling organized along the rear of the rack.
• 7.9 ft (2.4 m) Input Cable: The nearly 8-foot input cable reaches floor-mounted PDU taps or overhead busway feeds without extension cords or cable management headaches — particularly useful in deep two-post racks or four-post open frames where the power source is not at rack height.
• UL 1363 Listed: UL 1363 certification covers relocatable power taps and verifies the unit has passed standardized electrical safety testing. For datacenter procurement teams and facilities managers, UL listing is frequently a hard requirement for equipment approval — this unit meets that bar.
• EIA/ECA-310-E Compliant: Conformance to the EIA/ECA-310-E rackmount equipment standard ensures the physical dimensions align with 19-inch rack infrastructure, so it drops into any standard rack without fit issues.
• 7.4 lb Installed Weight: At 117.9 oz (approximately 7.4 lb) installed, this PDU is substantial but manageable for a single-person installation. Factor this into your rack weight budget, particularly in mobile or seismically braced racks.

Integration and Compatibility

The 2030B8H-RACK-PDU-IC (often searched as 2030B8H RACK PDU IC) is a passive distribution unit — no network management, no remote monitoring, no metered output. That keeps it simple and eliminates any firmware or software dependency, which is exactly right for auxiliary rack positions, out-of-band power rails, or environments where managed PDUs are deployed at the primary feed and this unit handles secondary distribution. It pairs directly with any standard 19-inch rack enclosure meeting EIA/ECA-310-E dimensions. For environments requiring per-outlet monitoring or remote switching, plan for a managed PDU upstream — this unit is not that product.

For security operations infrastructure, this PDU integrates cleanly into rack builds housing NVRs, PoE switches, servers, and storage arrays. Pairing it with a managed PoE switch in the same rack keeps your surveillance network power and data infrastructure consolidated. Review your rack power planning guide if you're calculating load distribution across a mixed C13/C19 deployment.

Frequently Asked Questions

Q: What input plug does the 2030B8H-RACK-PDU-IC use?

A: It uses a NEMA L6-30P twist-lock plug, which is the standard for 30A 240V circuits in datacenter and server room environments. Verify your facility has an L6-30R receptacle before ordering.

Q: What is the continuous operating current limit?

A: While the unit is rated at 30A maximum, the derated continuous operating current is 24A. For sustained loads — which is the norm in server environments — design your load plan around 24A, not 30A, to stay within code-compliant operating margins.

Q: Does the 2030B8H-RACK-PDU-IC work with 120V circuits?

A: No. This PDU operates at 200–240V nominal input and output. It is not compatible with standard North American 120V circuits. It requires a dedicated 208V or 240V power feed.

Q: How many C19 outlets does this PDU provide?

A: Four C19 outlets, in addition to 16 C13 outlets, for a total of 20 outlets. C19 is suited for higher-draw devices such as UPS units, high-density servers, and storage arrays that require the larger IEC connector.

Q: What is the warranty on the 2030B8H-RACK-PDU-IC?

A: StarTech provides a 2-year manufacturer warranty on this unit.

Q: Is this PDU managed or metered?

A: No. The 2030B8H-RACK-PDU-IC is a passive (non-managed, non-metered) power distribution unit. There is no network interface, per-outlet switching, or current monitoring. If you require those features, you will need a managed PDU product.

James Everett

When I specify the 2030B8H-RACK-PDU-IC for a rack build, the first thing I confirm with the facilities team is the circuit: NEMA L6-30P means you need a dedicated 30A 240V feed at the rack, and that is not a given in older buildings or leased space. Get that confirmed before the unit ships — the PDU itself is straightforward, but the wrong receptacle at the wall means a delay.

Technical Highlights:

• 24A Derated Continuous Current: The gap between 30A rated and 24A derated is not a limitation — it is a code-correct design. Running a PDU at more than 80% of rated capacity on a continuous load is an NEC violation in most jurisdictions. StarTech has built the derating into the spec so integrators and facilities teams are working from the right number from day one.
• C13/C19 Split (16+4): In a typical surveillance server rack — NVR, storage expansion, top-of-rack switch, UPS — the four C19 ports cover the UPS output and any high-draw storage node, while the 16 C13 ports handle everything else. That ratio works for most mid-density builds without outlet waste.
• 7.9 ft Input Cable: The 2.4-meter cable is longer than most competing 1U passive PDUs at this form factor. In a four-post open-frame rack where the floor PDU tap is at the base and the unit installs at mid-rack, that length eliminates the need for an extension, which is both a safety and a neatness win.

Deployment Considerations:

• This is a passive unit — no monitoring, no switching. If you are building a rack where remote reboot of individual outlets is a requirement (common in unmanned remote surveillance nodes), plan a managed PDU at the primary feed and use this unit for secondary distribution only.
• At 117.9 oz (7.4 lb), this PDU adds meaningful weight to a mobile or seismically constrained rack. Verify your rack's weight rating before installing it at a high U-position.

The 2030B8H-RACK-PDU-IC is well-suited for high-density surveillance server room builds — specifically colocation cages and dedicated server rooms with 208V or 240V provisioned circuits — where you need 20 outlets of reliable passive distribution in a single rack unit without paying for managed features you will not use.
