ATEN CS1142D4C Secure KVM Switch

Overview

The ATEN CS1142D4C is a 2-port secure KVM switch designed for environments demanding high security and dual display capability. It allows a single operator to securely control two computers, each outputting to two DVI-I displays, from one set of peripherals. This unit is ideal for defense, intelligence, and homeland security operations where data path isolation and unidirectional data flow are critical. The CS1142D4C meets stringent PSD PP v4.0 compliance requirements, ensuring the integrity of sensitive data streams.

Compatibility

This KVM switch supports dual DVI-I Dual Link video interfaces, enabling connections to computers equipped with this standard. It is compatible with any computer running operating systems that support DVI-I output. The USB support allows for connection of standard keyboards and mice. For CAC (Common Access Card) functionality, ensure your connected computers and smart card readers are configured appropriately. The switch handles resolutions up to 3840 x 2160 @ 30 Hz on both displays, providing crisp 4K video output for detailed situational awareness.

Installation Notes

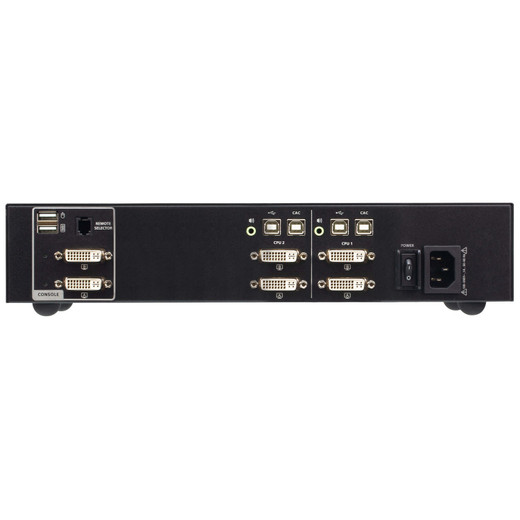

The CS1142D4C features rack mounting capabilities, allowing for integration into standard 19-inch server racks. Ensure adequate ventilation around the unit to maintain optimal operating temperatures. Connections include 2 x DVI-I Dual Link female ports for computer video output and console video input. USB ports are provided for keyboard and mouse connectivity. Port selection is managed via front-panel pushbuttons or an optional remote port selector, offering flexible operational control.
