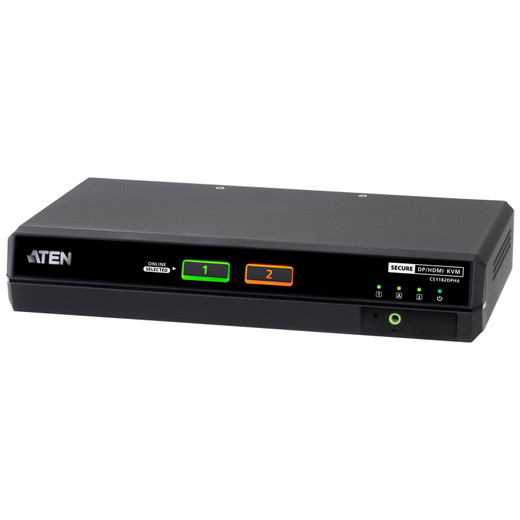

ATEN CS1182DPH4 Secure KVM Switch

Overview

The ATEN CS1182DPH4 is a 2-port universal secure KVM switch designed for environments requiring strict isolation between computer sources and shared peripherals. It enables a single operator to securely manage two separate computers from one console, featuring a single keyboard, mouse, and a high-resolution display. This model is compliant with PSD PP v4.0 standards, ensuring secure data handling for sensitive operations. The CS1182DPH4 is ideal for government, military, or enterprise security installations where data segregation is paramount.

Compatibility

This secure KVM switch is designed to work with any computer source that outputs DisplayPort or HDMI video signals and utilizes USB for keyboard and mouse input. It supports high resolutions up to 5120 x 2880, making it compatible with modern high-definition and ultra-high-definition monitors. The USB Type-A ports on the console side accept standard keyboards and mice, while the computer ports utilize USB Type-A for connectivity. The inclusion of both DisplayPort and HDMI console ports offers flexibility for connecting to various display types.

Installation Notes

The CS1182DPH4 operates on standard 100-240V AC input voltage, requiring a standard power outlet. Ensure that the DisplayPort and HDMI cables connecting the computer sources to the switch, and the switch to the console display, are rated for the desired resolution (5120 x 2880) to avoid signal degradation or compatibility issues. The switch features four USB ports for peripherals: two for computer connections and two for console devices (keyboard, mouse, etc.).
