Description

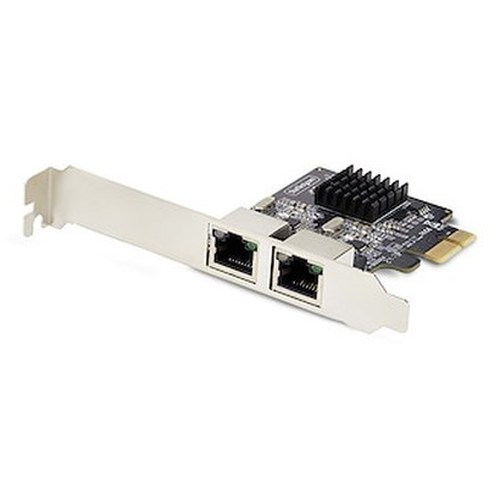

StarTech ST1000SPEXD4T Dual Gigabit PCIe Network Adapter

Overview

The StarTech ST1000SPEXD4T is a dual-port Gigabit Ethernet network adapter designed to add 10/100/1000Mbps network connectivity to a desktop computer or server. This PCIe NIC utilizes the Realtek RTL8111H chipset to provide reliable network performance for demanding applications such as video surveillance recording, large file transfers, or high-bandwidth network access. Its standard profile form factor ensures compatibility with most desktop chassis, while the included low-profile bracket allows for installation in smaller systems.

Compatibility

This adapter is compatible with systems featuring a PCI Express x1 slot or larger (x4, x8, x16). It supports IEEE 802.3, 802.3u, 802.3x, and 802.3ab industry standards, ensuring broad compatibility with network infrastructure. The dual RJ-45 ports support 10/100/1000Mbps network speeds.

Installation Notes

Operating temperature range is 5°C to 70°C (41°F to 158°F), with storage temperatures from 0°C to 80°C (32°F to 176°F). Humidity tolerance is 10% to 80% RH (non-condensing). The adapter requires a free PCI Express x1 slot or larger.

What's in the Box

  • 1x ST1000SPEXD4T PCI Express Network Card
  • 1x Low Profile Bracket
  • 1x Driver CD
  • 1x Instruction Manual
Specifications
Chipset ID: Realtek RTL8111H
Maximum Data Transfer Rate: 1000Mbps
Compatible Networks: 10/100/1000 Mbps
Jumbo Frame Support: 9K max.
Ports: 2
Bus Type: PCI Express
Card Type: Standard Profile
Host Connectors: 1 - PCI Express x1
External Ports: 2 - RJ-45
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Operating Temperature: 5C to 70C
Storage Temperature: 0C to 80C
Humidity: 10% ~ 80%
Product Length: 3.0 in
Product Width: 4.7 in
Product Height: 0.7 in
Weight of Product: 1.5 oz
Warranty: 2 Years
Brand: StarTech
Brand: StarTech
MPN: ST1000SPEXD4T
Type: Mounting Bracket
Connectivity: Ethernet
