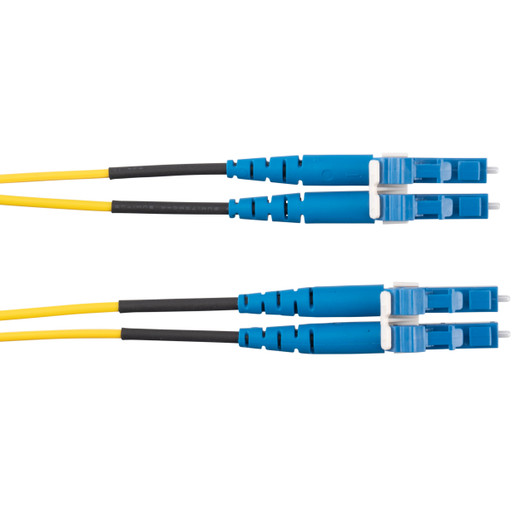

Panduit F92ELLNLNSNM001 Opti-Core OS2 LC Duplex Fiber Patch Cord

The Panduit F92ELLNLNSNM001 Opti-Core fiber patch cord delivers single-mode OS2 connectivity for data center and enterprise telecom room deployments where reliable 9/125μm transmission is required. This 1-meter duplex jumper features LC connectors on both ends, a 1.6mm LSZH cable jacket for fire-safety compliance, and standard polarity configuration. Yellow jacketing provides instant visual identification in structured cabling environments. Built to exceed TIA-568-C.3 and ISO/IEC 11801 insertion loss specifications, the F92ELLNLNSNM001 is engineered for patch panel to switch connections, equipment area cross-connects, and high-density rack applications where space, safety, and performance cannot be compromised.

Key Features

• OS2 9/125μm single-mode fiber for long-distance, high-bandwidth connectivity up to 10/40/100 Gbps
• LC duplex connectors both ends—industry-standard small form factor for high port density
• 1.6mm LSZH (Low Smoke Zero Halogen) cable jacket meets IEC 60332-1 and IEC 61034 fire safety standards
• 1-meter overall length optimized for intra-rack and patch panel to active equipment connections
• Yellow jacket for rapid identification and cable management in multi-wavelength installations
• Standard polarity (Position A to Position B) ensures plug-and-play deployment with duplex transceivers
• Factory-terminated and tested to guarantee low insertion loss and return loss performance
• Exceeds TIA-568-C.3, ISO/IEC 11801, TIA-604-3 (FOCIS-3), and TIA-604-10 (FOCIS-10) standards
• Part of Panduit's Opti-Core fiber system for end-to-end compatibility with cassettes, panels, and enclosures

Single-mode OS2 fiber provides 9-micron core diameter and supports transmission distances exceeding 10 kilometers at 10 Gigabit Ethernet, making the F92ELLNLNSNM001 suitable for campus backbone links, inter-building connectivity, and data center spine-to-leaf topologies. The duplex LC connector format—two fibers in a single housing—offers twice the port density of SC connectors and has become the de facto standard for SFP, SFP+, and QSFP transceiver modules in enterprise switching and routing equipment. Panduit's factory termination process ensures consistent geometry and endface polish, minimizing insertion loss variability that can degrade link budgets in multi-span installations. The 1.6mm cable diameter strikes a balance between flexibility and durability: small enough to route through crowded patch panel rear access zones, yet robust enough to withstand repeated plugging cycles and moderate bend stress without kinking.

LSZH jacketing is specified for installations where fire codes mandate low smoke emission and zero halogen content—common in European data centers, enclosed telecom rooms, underfloor cable pathways, and overhead plenum spaces where PVC combustion byproducts pose evacuation risks. The yellow jacket color follows TIA-598-C coding for single-mode fiber, allowing technicians to distinguish OS2 jumpers from OM3/OM4 multimode cables (aqua) or OM5 cables (lime green) at a glance during adds, moves, and changes. Standard polarity configuration means Position A on one connector maps to Position B on the opposite end—the expected wiring scheme for duplex fiber links where one strand transmits and the other receives. This eliminates the need for polarity reversal adapters or crossover jumpers in point-to-point connections between two duplex transceivers. At 1 meter, the F92ELLNLNSNM001 is ideally suited for patch panel to top-of-rack switch connections (typically 24–30 inches of vertical separation), switch-to-switch stacking within the same rack, or equipment area cross-connects where longer jumpers create cable management challenges and shorter jumpers leave insufficient slack for future moves.

Compliance with TIA-568-C.3 and ISO/IEC 11801 Edition 2.2 ensures the F92ELLNLNSNM001 meets minimum optical performance requirements for structured cabling channel links, including maximum insertion loss of 0.75 dB and minimum return loss of 20 dB at 1310 nm and 1550 nm wavelengths. TIA-604-3 (FOCIS-3) and TIA-604-10 (FOCIS-10) adherence guarantees connector intermateability with any standards-compliant LC adapter or transceiver, reducing the risk of endface contamination or physical damage during mating. As part of Panduit's Opti-Core fiber platform, this patch cord integrates seamlessly with Opti-Core cassettes (FHD, FAP, FMT series), fiber adapter panels (FAP series), and high-density enclosures—providing a factory-validated pathway from entrance facility to equipment rack. For integrators managing data center migrations to 40 Gbps (four 10G lanes over eight fibers via MTP-to-LC breakout) or 100 Gbps spine fabrics, the F92ELLNLNSNM001 serves as the final duplex jumper between breakout module and switch port, ensuring that last-meter performance does not bottleneck the overall link.
