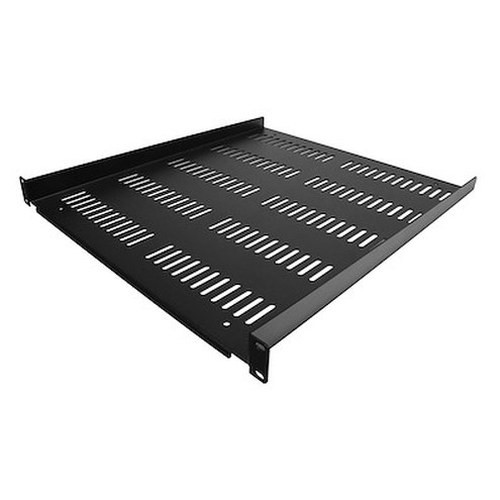

StarTech SHELF-1U-20-FIXED-V 1U Vented Fixed Rack Shelf

Overview

The StarTech SHELF-1U-20-FIXED-V is a fixed 1U vented rack shelf built for integrators who need a dependable, no-adjustment platform for rack-mounted equipment in server closets, AV racks, and security enclosures. At 20 inches of internal depth and a 55.1 lb weight capacity, it handles most NVRs, media converters, UPS units, and patch panels without requiring a tool-heavy custom solution. The steel construction and EIA/ECA-310-E compliance mean it drops into any standard 19-inch rack without fitment surprises — an important detail when you're commissioning a rack under a deadline.

The vented surface is a practical call over a solid shelf: passive airflow through the deck reduces heat buildup on gear that sits on the shelf rather than drawing its own active cooling. In a densely populated server rack cabinet, that matters more than it might appear on spec sheets.

Key Features

• 55.1 lb (25 kg) weight capacity: Enough headroom for a mid-range NVR, a small UPS, or a stack of patch panels. You won't be hunting for a higher-rated shelf for typical security or AV equipment loads.
• 20-inch internal depth: Fits equipment up to 20 inches deep — covers the majority of 1U rack servers, NVRs, and network appliances. Measure your deepest unit before ordering; this shelf won't accommodate full-depth 29-inch 1U servers.
• 17.2-inch internal width: Standard 19-inch rack equipment fits cleanly with clearance on either side for cable routing — no forced cable pinching against the shelf rails.
• EIA/ECA-310-E compliant: Mates with any standard 19-inch two-post or four-post rack without adapter hardware. If your rack enclosure is industry-standard, this shelf installs without surprises.
• Steel frame construction: Steel throughout — not sheet aluminum — so the rated 55.1 lb capacity holds at the rails without flex or creep over time. Relevant in vibration-prone environments like telecom rooms or light industrial deployments.
• Vented deck surface: Passive airflow venting reduces thermal buildup under equipment that lacks its own forced-air cooling. A solid shelf traps heat; this one doesn't.
• Fixed design (non-sliding): Simpler hardware, no drawer slides to fail or rack out accidentally. The tradeoff is that you access rear cabling by removing the unit, not by pulling the shelf forward — plan cable management accordingly.
• 1U form factor (1.7 in tall): Occupies exactly one rack unit, leaving you flexibility in dense racks where every U matters. Pair with a rack cable management panel above or below if rear-cable access is frequent.
• Black powder-coat finish: Standard rack black matches virtually every equipment vendor's finish — aesthetics won't be a talking point on your next client walkthrough.
• Lifetime warranty: StarTech backs this shelf for the life of the product — meaningful for infrastructure components that you install and rarely revisit.

Integration and Compatibility

The SHELF-1U-20-FIXED-V (often searched as SHELF 1U 20 FIXED V) installs in any EIA/ECA-310-E compliant 19-inch rack — two-post open frames, four-post open frames, and enclosed rack cabinets alike. The 19.0-inch overall width and standard rack-ear geometry handle the mounting. Internal clearance of 17.2 inches wide by 20.0 inches deep covers most 1U and 2U appliances used in network video recorder deployments, AV distribution, and IT infrastructure buildouts.

For security rack builds, this shelf is a practical landing spot for standalone NVRs without built-in rack ears, PoE injectors, managed switches under 20 inches deep, or any appliance that ships in a desktop form factor but needs to live in a rack. Verify the depth of your specific unit against the 20-inch internal depth before purchasing — this is a fixed shelf, not adjustable.

Use a rack-mount power strip in an adjacent U to keep power distribution organized alongside shelf-mounted equipment.

Frequently Asked Questions

Q: What is the maximum weight the SHELF-1U-20-FIXED-V can support?

A: The shelf is rated for 55.1 lb (25 kg). This covers the vast majority of NVRs, 1U appliances, UPS units, and AV equipment typically placed on a rack shelf.

Q: Will this shelf fit in any standard 19-inch rack?

A: Yes. The SHELF-1U-20-FIXED-V is EIA/ECA-310-E compliant and fits any standard 19-inch two-post or four-post rack — open frame or enclosed cabinet — without adapter hardware.

Q: How deep is the usable surface on this shelf?

A: The internal depth is 20.0 inches (50.8 cm). Equipment deeper than 20 inches will overhang the shelf edge. The overall product length is also 20.0 inches, so account for your rack's internal depth as well.

Q: Is this shelf adjustable or sliding?

A: This is a fixed shelf — it does not slide or adjust. It mounts at a set position in the rack. If you need front-access pull-out capability, you would need a sliding shelf variant instead.

Q: What warranty does the SHELF-1U-20-FIXED-V carry?

A: StarTech provides a lifetime warranty on this shelf.

Q: Why choose a vented shelf over a solid one?

A: The vented deck allows passive airflow under and through equipment sitting on the shelf. In densely populated racks where heat management is a concern, this reduces thermal buildup compared to a solid surface shelf — no active cooling required.

James Everett

The SHELF-1U-20-FIXED-V comes up regularly in security rack builds where someone has a desktop-form-factor NVR or PoE injector that needs to live permanently in an enclosure. The 55.1 lb rated capacity is the spec I look at first — it's enough for a mid-range NVR with drives installed, which is where a lot of integrators get caught short on cheaper shelves that flex under real load.

Technical Highlights:

• 55.1 lb capacity at 1U: Handles loaded NVRs and small UPS units without rail flex — a real concern in vibration-prone environments like mechanical rooms or light industrial spaces.
• 20-inch internal depth: Matches the depth footprint of most 1U security appliances and desktop-to-rack conversions; measure your unit before assuming it fits — 20 inches is not universal for all equipment classes.
• EIA/ECA-310-E compliance: No adapter plates, no rail shimming — drops into any standards-compliant 19-inch enclosure. That speeds commissioning when you're building out multiple racks on a tight schedule.

Deployment Considerations:

• The fixed (non-sliding) design means rear cable access requires lifting the equipment off the shelf. Plan your cable runs with drip loops and adequate slack before final seating — retrofitting cable management on a loaded fixed shelf is time-consuming.
• At 1.7 inches tall, this shelf consumes exactly 1U. In builds where rack space is tight, verify U availability before ordering — there's no way to reclaim the space once equipment is seated and cabled.

This shelf is a practical fit for small-to-mid security rack builds — particularly server closets and IDF-style enclosures where a desktop NVR or managed PoE injector needs a permanent, stable home without custom fabrication.
