StarTech SHELF-1U-12-FIXED-V 1U Fixed Vented Server Rack Shelf

Overview

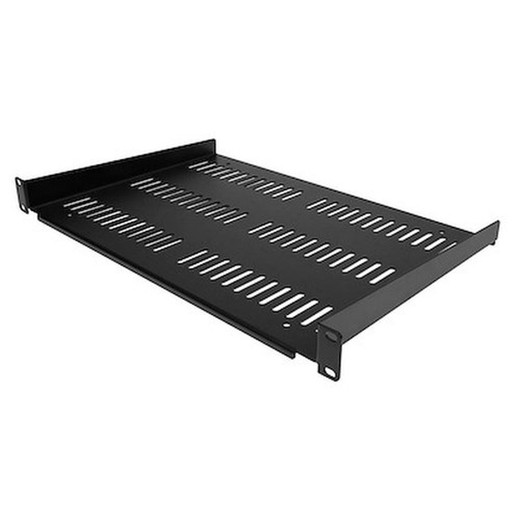

The StarTech SHELF-1U-12-FIXED-V is a 1U fixed-position vented shelf designed for standard 19-inch EIA/ECA-310-E compliant server racks and cabinets. At 12 inches deep with a 55.1 lb (25 kg) weight capacity, it gives rack integrators a practical way to support unmanaged switches, media converters, small appliances, patch panels, or any piece of equipment that doesn't ship with its own rack ears — without sacrificing more than a single rack unit of vertical space. The vented surface promotes passive airflow through heat-generating equipment sitting on the shelf, which matters in tightly loaded cabinets where thermal management is already a concern. If you are searching for this model, it is also commonly indexed as SHELF 1U 12 FIXED V.

Key Features

• 55.1 lb (25 kg) Rated Capacity: Handles the weight of most desktop appliances, small UPS units, or stacked media converters without flex — enough headroom that you're not counting ounces when loading the shelf.
• 12-Inch Fixed Depth: The 12-inch depth fits standard mid-depth and full-depth racks comfortably, leaving rear cable management space accessible. Fixed mounting means zero adjustment complexity during installation.
• Standard 19-Inch Width (EIA/ECA-310-E): Drops straight into any rack or open-frame enclosure built to the EIA/ECA-310-E standard — the universal mounting spec used across server, networking, and AV racks. No adapter hardware required.
• 1U Form Factor (1.7 in / 4.3 cm): Occupies one rack unit of vertical space, keeping your usable rack real estate from disappearing when you need to support odd-form equipment. In a 12U wall cabinet, that distinction matters.
• Vented Surface: Perforations in the shelf surface allow warm air to move upward rather than pooling under equipment — relevant for any appliance that pulls air from its underside or relies on passive convection cooling.
• All-Steel Construction: The steel frame and surface resist flex under rated load and don't introduce the mounting instability that plastic or composite shelves can develop over time in high-vibration environments like raised-floor data rooms or industrial enclosures.
• Black Finish: Blends with standard black rack hardware and enclosures; no finish mismatch in mixed-vendor environments.
• Lifetime Warranty: StarTech backs this shelf with a lifetime warranty — meaningful for a passive steel component installed once and largely forgotten. No planned replacement cycle to budget for.

Integration and Compatibility

The SHELF-1U-12-FIXED-V fits any rack or cabinet that conforms to EIA/ECA-310-E 19-inch mounting standards — which covers the overwhelming majority of commercial server racks, network cabinets, open-frame enclosures, and wall-mount rack panels in production today. At 4.6 lb (2.1 kg), the shelf itself contributes negligible weight to overall rack load calculations. It works equally well in a security operations rack holding NVRs and PoE switches as it does in a standard IT equipment room. Pair it with a rack cabinet or rack accessories to build out a complete enclosure. For installations managing IP camera infrastructure, see the PoE network switches category for compatible equipment this shelf commonly supports. If you are planning a larger build-out, the server rack and enclosure selection covers full cabinets this shelf is designed to mount inside.

Frequently Asked Questions

Q: What is the maximum weight the SHELF-1U-12-FIXED-V can support?

A: The shelf is rated for 55.1 lb (25 kg). Stay within that limit and the all-steel frame will not flex under normal static loads.

Q: Will this shelf fit in my existing 19-inch rack cabinet?

A: Yes, provided your rack conforms to the EIA/ECA-310-E standard, which covers virtually all commercial server and network cabinets. The shelf mounts in a standard 1U slot and installs without adapter hardware.

Q: How deep is the SHELF-1U-12-FIXED-V?

A: The usable depth is 12 inches (30.5 cm). This fits mid-depth and full-depth enclosures and leaves room for rear cable management in most cabinet configurations.

Q: Is the shelf vented, and does that matter for equipment cooling?

A: Yes, the surface is vented. For equipment that draws air from below or relies on passive convection, the perforated surface allows warm air to rise rather than being trapped, which helps manage heat in densely loaded racks.

Q: What warranty does StarTech provide on this shelf?

A: StarTech covers the SHELF-1U-12-FIXED-V with a lifetime warranty.

Q: Can this shelf support a small UPS or desktop network appliance?

A: As long as the unit weighs less than 55.1 lb, yes. Small desktop UPS units, media converters, unmanaged switches, and similar appliances are typical use cases for this shelf type.

Jerry Tildsen

The SHELF-1U-12-FIXED-V comes up regularly in security rack builds where an integrator needs to shelf-mount a device that lacks rack ears — think desktop NVR appliances, standalone PoE injectors, or small managed switches that ship in a tower form factor. The 55.1 lb capacity covers virtually anything in that category without needing to verify per-unit weight against a marginal limit.

Technical Highlights:

• 55.1 lb Steel Frame: All-steel construction at this weight rating means no progressive sag under sustained load — relevant in installations where the shelf stays loaded and unattended for years between service visits.
• 1U / 12-Inch Profile: At 1.7 inches tall and 12 inches deep, this shelf fits in the shortest wall-mount cabinets without consuming the vertical space you actually need for active equipment.
• Lifetime Warranty: For a passive component with no moving parts, a lifetime warranty means you're not budgeting a replacement cycle — install it and move on to the equipment sitting on top of it.

Deployment Considerations:

• At 12 inches deep, verify your cabinet's internal usable depth before ordering — some compact wall-mount enclosures have internal depths of 12 inches or less, which can make rear cable management tight once the shelf is seated.
• The shelf is fixed, not sliding — if you anticipate needing frequent rear-access to equipment seated on it, a sliding variant may serve better in that specific bay position.

This shelf is a natural fit for physical security equipment rooms running a mix of rack-mounted and non-rack-native hardware — particularly NVR-adjacent bays where a desktop-form recorder, a standalone PoE injector, or an out-of-band management device needs a stable, rated surface without consuming multiple rack units.
